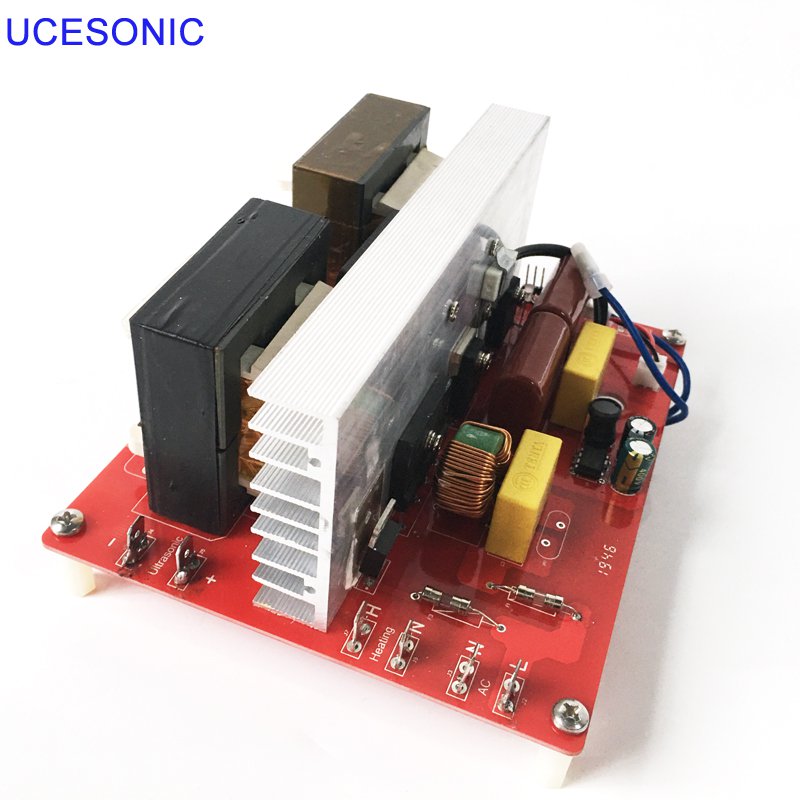

ultrasonic generator PCB assembly 110V/220V

ultrasonic generator PCB assembly 110V/220V
The circuit adopts advanced other excitation integrated circuit design, automatic frequency sweep, conversion efficiency as high as 98%. The power part adopts Mitsubishi module of Japan, with stable and strong output. The operation surface is equipped with ammeter, the power can be visually adjusted, and has the function of over flow thermal protection. No load or short circuit can be automatically protected without damaging the generator, which can match with any transducer.

Type	Power（W）	Frequency (KHz)
UCE-220V-PCB200W	200	20khz,25khz,28khz,33khz,40khz Frequency is adjustable 50khz,54khz,60khz,68khz,80khz,90khz 100khz,120khz,135khz,165khz,200khz
UCE-220V-PCB300W	300	20khz,25khz,28khz,33khz,40khz Frequency is adjustable 50khz,54khz,60khz,68khz,80khz,90khz 100khz,120khz,135khz
UCE-220V-PCB400W	400	20khz,25khz,28khz,33khz,40khz Frequency is adjustable
UCE-220V-PCB500W	500	20khz,25khz,28khz,33khz,40khz Frequency is adjustable
UCE-220V-PCB600W	600	20khz,25khz,28khz,33khz,40khz Frequency is adjustable
