Thermal Contact Ultrasonic Spot Welding Machine for Glove Compartments

2020-01-30 13:25 admin

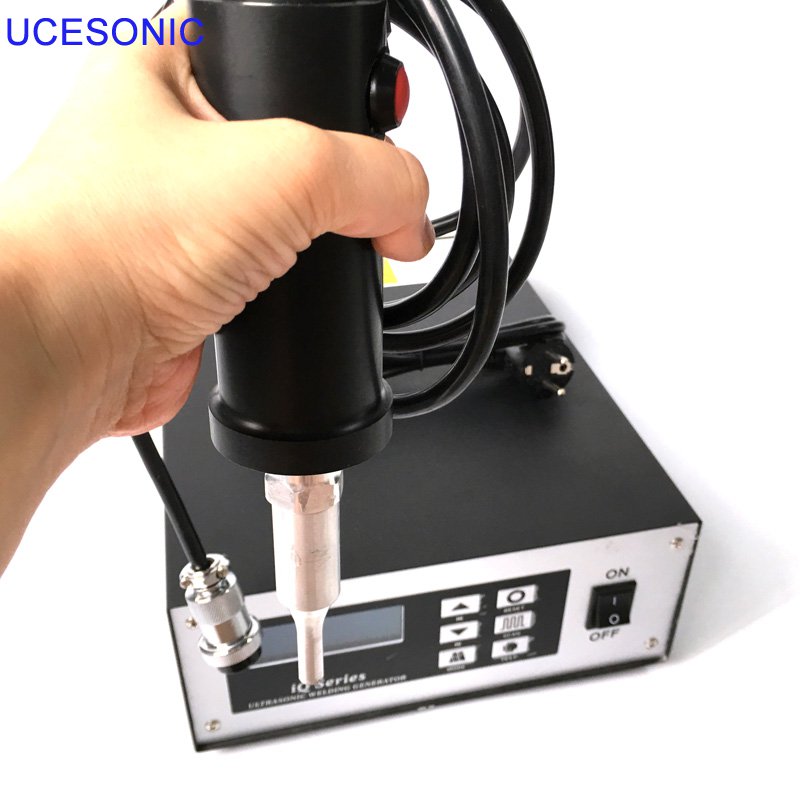

Thermal Contact Ultrasonic Spot Welding Machine for Glove Compartments
Usage method
1. Connect one end of the cable to the output control cable connector on the vibration generator, and the other end to the output control cable socket on the back of the electric box, and tighten it.
2. Wipe the connection surface of the welding head, connect it to the transducer of the vibration generator, and lock it with a wrench. Note: when connecting, make sure that the two connecting surfaces between the welding head and the transducer are identical and locked. Do not damage the machine due to too long connecting screw or failure to lock the sliding teeth, otherwise the sound transmission is not smooth.
3. When loading and unloading the welding head, two wrenches must be used to block the welding and transducer respectively, and only one part of the welding head must not be locked or loaded and unloaded, so as to avoid damage to the hand-held vibration generator.
4. After checking that points 1 and 2 are installed properly, plug the power cord socket into the external power socket, and turn on the power switch, when the power indicator is on.
5. Press the sound wave control switch gently, then you can hear the "squeak" sound from the welding hair when the sound wave is transmitted to the welding head, indicating that the machine works normally, and can be put into use.
6. In case of abnormal operation, do not disassemble the equipment without permission. Please inform the supplier or send the equipment to the manufacturer for inspection and maintenance.
Type power
(W)
Frequency Welding time Contains
UCE-HH300W 300W 20khz,28khz,30khz,35khz,40khz 0.1-3sec generator , transducer ,horn,head
UCE-HH500W 500W 20khz,28khz,30khz 0.1-3sec generator , transducer ,horn,head
UCE-HH900W 900W 20khz,28khz,30khz 0.1-3sec generator , transducer ,horn,head
UCE-HH1000W 1000W 20khz,28khz 0.1-3sec generator , transducer ,horn,head
UCE-HH1200W 1200W 20khz,28khz 0.1-3sec generator , transducer ,horn,head
Thermal Contact Ultrasonic Spot Welding Machine for Glove Compartments
Thermal Contact Ultrasonic Spot Welding Machine for Glove Compartments

Thermal Contact Ultrasonic Spot Welding Machine for Glove Compartments
