digital ultrasonic cleaning generator for industry
The audio electric signal above 20KHZ produced by the ultrasonic generator is converted into mechanical oscillation at the same frequency through the piezoelectric inverse effect of the transducer, and radiated in the cleaning solution in the form of supersonic longitudinal wave. Because of the alternation of positive and negative pressure in the propagation of supersonic longitudinal wave, millions of tiny bubbles at more than 1000 atmospheric pressures are generated and exploded at any time, resulting in a fine local high pressure bombardment on the surface of the cleaner, which makes the dirt in the surface and crevices of the object peel off rapidly. This is the special "cavitation effect" of ultrasonic cleaning.

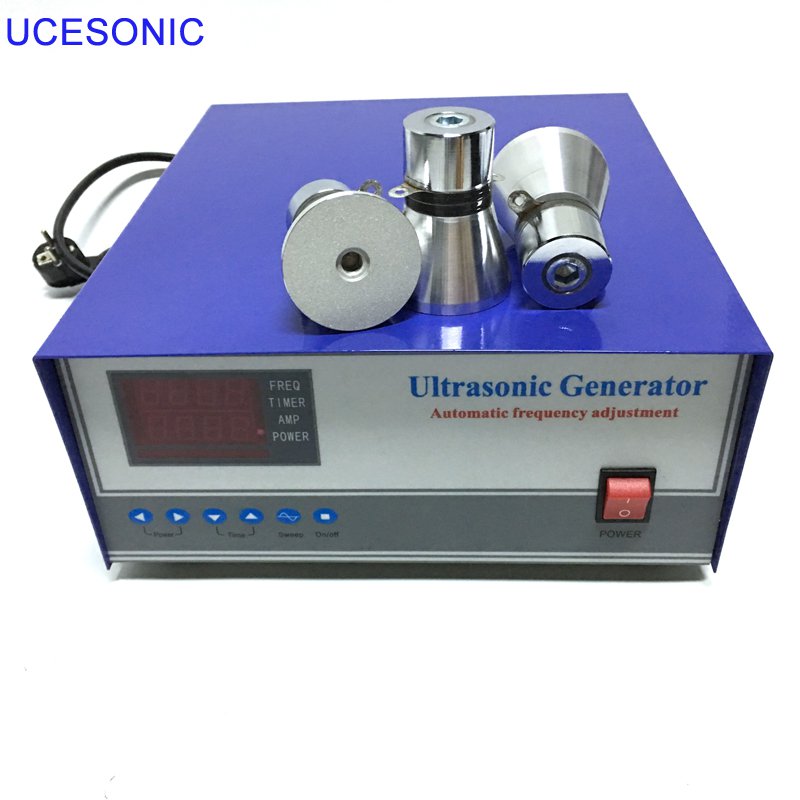

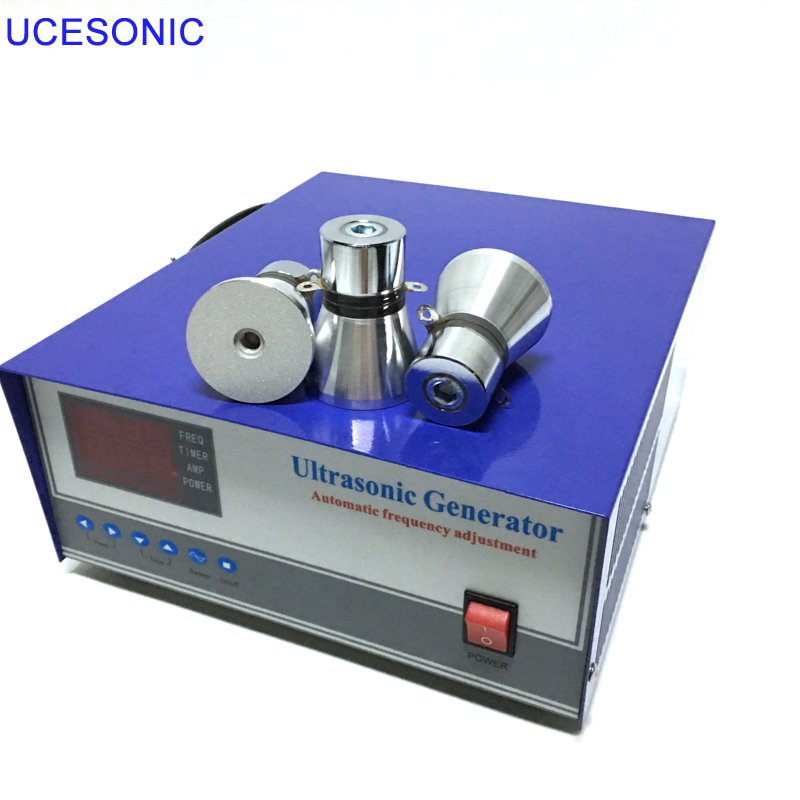

The control box adopts advanced technologies such as the excitation circuit controlled by a microcomputer, the automatic frequency tracking and the sweeping mode of operation. Compared with the traditional control box, it has stable and reliable operation, continuous adjustable ultrasonic power, and can maximize the potential of the transducer. Automatic frequency tracking makes output matching better, power stronger and efficiency higher. The unique sweeping mode makes the cleaning liquid form a fine reflux under the sweeping effect. The dirt stripped from the surface of the workpiece can be taken away in time to achieve a faster and more thorough cleaning effect, and the efficiency of ultrasonic cleaning is higher. At the same time, it has perfect protection.

Type

Power（W）

Frequency (KHz)

Transducer numbers

Size

AC110V60HZ+/-10%  USA /LATIN AMERICA STANDARD ARE AVAILABLE
AC220V50HZ+/-10% EUROPE/ASIA/OCEANIA/AFRICA ARE AVAILABLE
All of machine are available for opening remote control function to connect with your own PLC system

UCE-NT300

300W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

3-6

300x360x150

UCE-NT600

600W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

6-12

300x360x150

UCE-NT900

900W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

9-18

300x360x150

UCE-NT1000

1000W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

10-20

300x360x150

UCE-NT1200

1200W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

12-24

300x360x150

UCE-NT1500

1500W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

15-30

300x360x150

UCE-NT1800

1800W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

18-36

300x360x150

UCE-NT2000

2000W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

20-40

300x360x150

UCE-NT2400

2400W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

24-48

300x360x150

UCE-NT3000

3000W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

50-60

300x360x150

High Frequency

300W-1200W

65-80khz

High Frequency

300W-1200W

120-135khz
digital ultrasonic cleaning generator for industrydigital ultrasonic cleaning generator for industry

digital ultrasonic cleaning generator for industry
