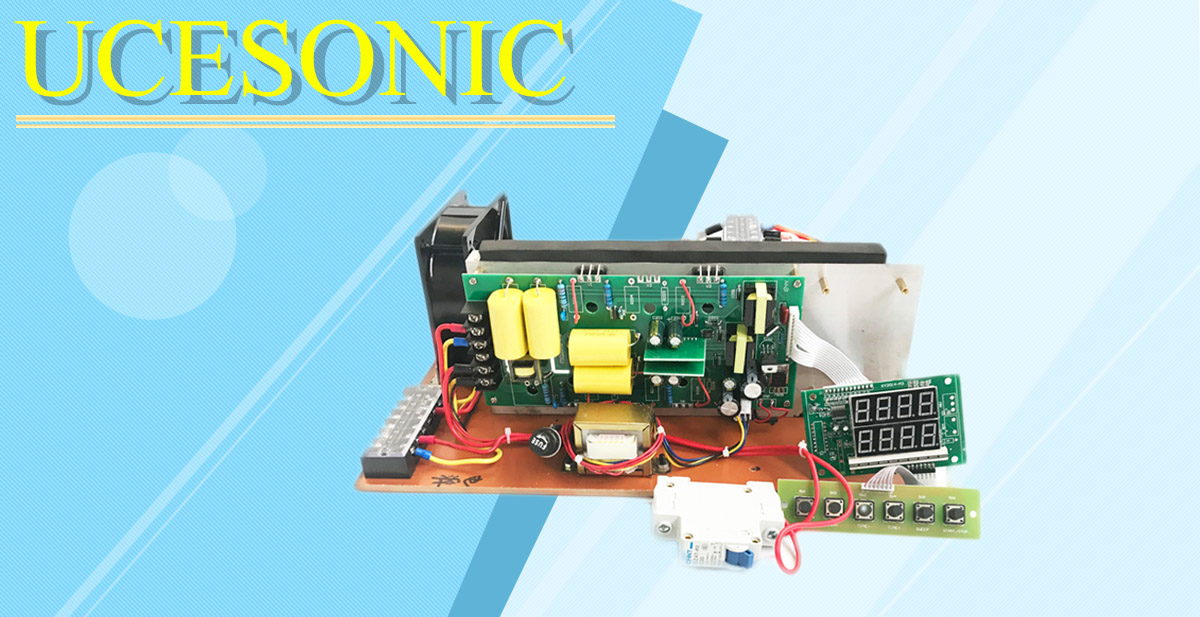

high power ultrasonic generator circuits 28khz/40khz

Our company specializes in introducing a new 220V ultrasonic circuit board design concept of the special ultrasonic power supply for ultrasonic cleaning machine, which can be widely used in the ultrasonic cleaning industry.



1. Ultrasound circuit boards adopt advanced technologies such as micro-computer controlled excitation circuit, frequency automatic tracking and sweeping mode. Compared with the traditional control box, it has stable and reliable operation, continuous adjustable ultrasonic power, and can maximize the potential of the transducer.



2. The automatic tracking of the working frequency of the ultrasonic circuit board makes the output matching better, the power stronger and the efficiency higher.



3. The unique sweeping mode of the ultrasonic circuit board makes the cleaning liquid form a fine reflux under the sweeping effect, and takes the dirt off the surface of the workpiece in time, so as to achieve a faster and more thorough cleaning effect and a higher efficiency of the ultrasonic cleaning.



Ultrasound circuit board has excellent frequency control accuracy. Imported power module is used for power drive. It has wide tracking frequency, adaptive output power load, high efficiency, excellent energy saving, small size, high power and high integration. Reasonable structure, easy ventilation and heat dissipation, with over-current and over-voltage protection functions, continuous operation reliability is good. Adaptive transducers of various forms.


Type	Power（W）	Frequency (KHz)
UCE-HPPCB300W	300	20khz,25khz,28khz,33khz,40khz Frequency is adjustable
UCE-HPPCB600W	600	20khz,25khz,28khz,33khz,40khz Frequency is adjustable
UCE-HPPCB900W	900	20khz,25khz,28khz,33khz,40khz Frequency is adjustable
UCE-HPPCB1000W	1000	20khz,25khz,28khz,33khz,40khz Frequency is adjustable
UCE-HPPCB1200W	1200	20khz,25khz,28khz,33khz,40khz Frequency is adjustable
UCE-HPPCB1500W	1500	20khz,25khz,28khz,33khz,40khz Frequency is adjustable
UCE-HPPCB1800W	1800	20khz,25khz,28khz,33khz,40khz Frequency is adjustable
UCE-HPPCB2000W	2000	20khz,25khz,28khz,33khz,40khz Frequency is adjustable
UCE-HPPCB2400W	2400	20khz,25khz,28khz,33khz,40khz Frequency is adjustable
UCE-HPPCB3000W	3000	20khz,25khz,28khz,33khz,40khz Frequency is adjustable
