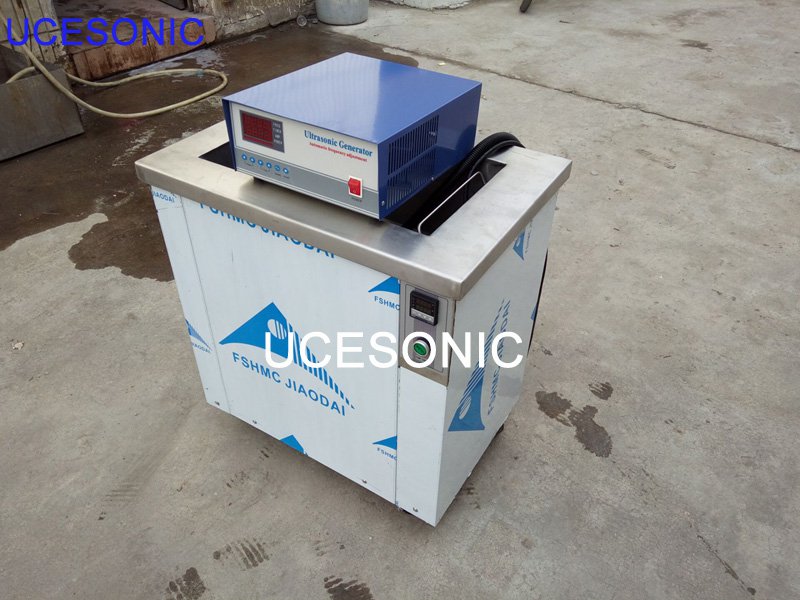

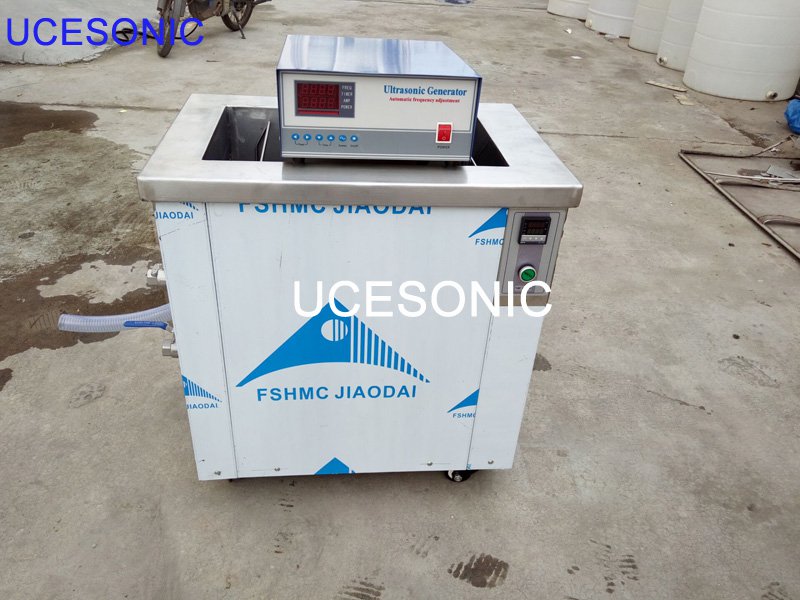

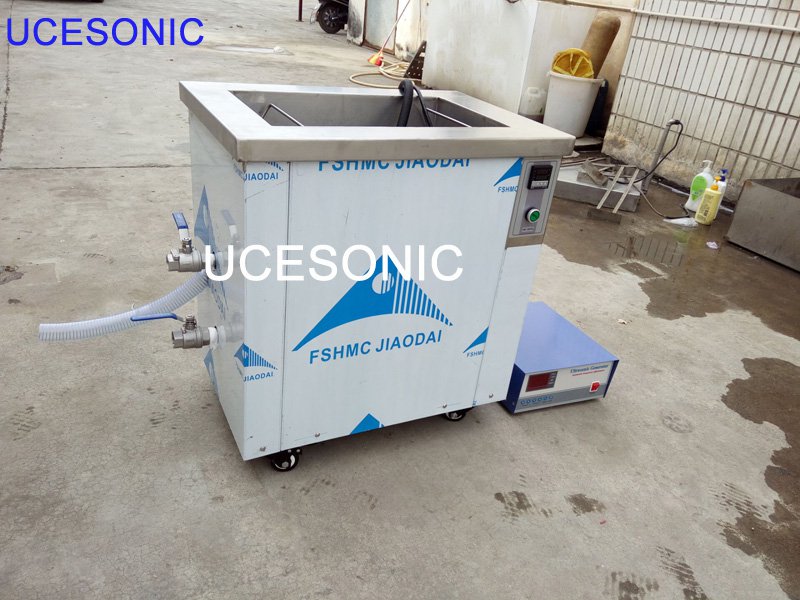

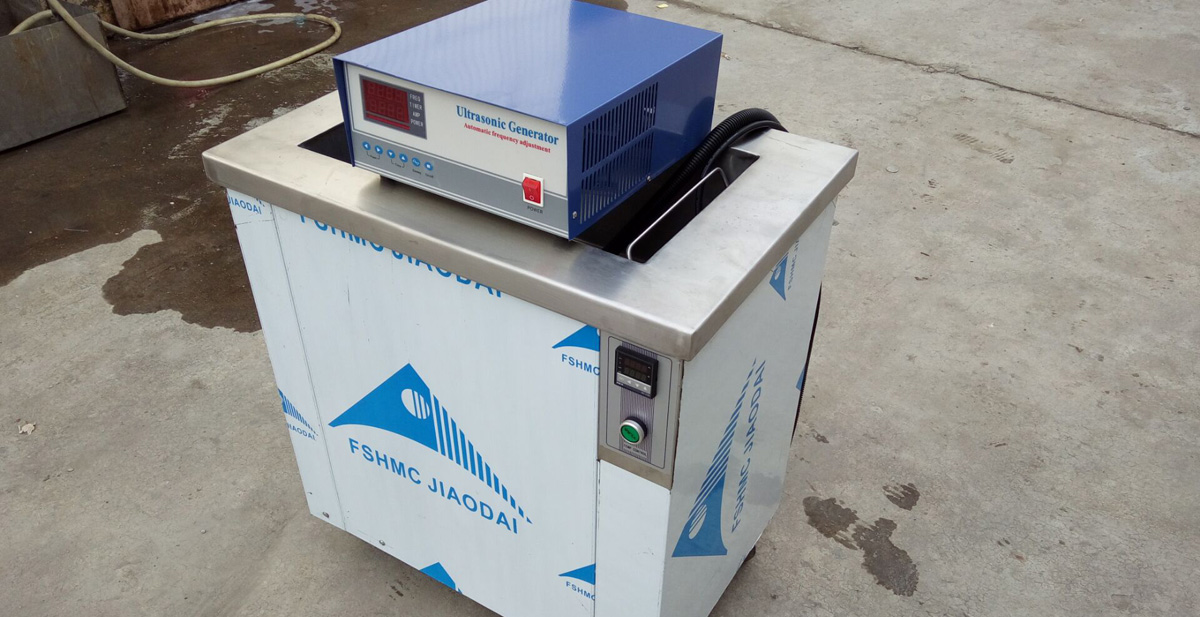

high frequency ultrasonic cleaning machine

High-frequency ultrasonic cleaning machine energy is very concentrated, because the ultrasonic energ...

WeChat

High-frequency ultrasonic cleaning machine energy is very concentrated, because the ultrasonic energy can penetrate tiny gaps and small holes, it can be used with any parts or assembly cleaning. When the cleaned parts are precision parts or assemblies, ultrasonic cleaning is often the only way to meet their special technical requirements.

It is obvious that the high-frequency ultrasonic cleaning machine is fast, and the ultrasonic cleaning method is much faster than the conventional cleaning method in dust removal. The fittings can be cleaned without demolition. Ultrasound cleaning is often the most economical way to clean because of its labor-saving advantages; high frequencies are often used to clean smaller, more sophisticated parts or to remove tiny particles. High frequency is also used in applications where surface damage is not allowed. High frequency can improve cleaning performance from several aspects. As the frequency increases, the number of cavitation bubbles increases linearly, resulting in more and more intensive shock waves that can enter smaller cracks. If the power remains unchanged, the cavitation bubble will become smaller, and the energy released will be reduced accordingly, thus effectively reducing the damage to the surface of the workpiece. Another advantage of high frequencies is that they reduce the viscous boundary layer (Pournoulli effect), allowing ultrasound to "detect" tiny particles. This is similar to the small stones in the bottom of the Qingxi river when the water level is lowered. Wiggart high-frequency ultrasonic cleaning is suitable for the fine cleaning of computer and microelectronic components; therefore, considering the cleaning effect and economy, the frequency is generally selected in the range of 20-130KHZ, of course, the correct choice of frequency is very important, and the selection of specific and appropriate operating frequency needs to do some experiments.

Type

Power(W)

Frequency (Khz)

Voltage

UCE-HFQX300W

300W

50KHZ,54khz,68khz,80khz,100khz,120khz,135khz,175khz,200khz

220V

UCE-HFQX600W

600W

50KHZ,54khz,68khz,80khz,100khz,120khz,135khz,175khz,200khz

220V

UCE-HFQX900W

900W

50KHZ,54khz,68khz,80khz,100khz,120khz,135khz,175khz,200khz

220V

UCE-HFQX1000W

1000W

50KHZ,54khz,68khz,80khz,100khz,120khz,135khz,175khz,200khz

220V

UCE-HFQX1200W

1200W

50KHZ,54khz,68khz,80khz,100khz,120khz,135khz,175khz,200khz

220V

UCE-HFQX200W

2000W

50KHZ,54khz,68khz,80khz,100khz,120khz,135khz,175khz,200khz

220V

UCE-HFQX2400W

2400W

50KHZ,54khz,68khz,80khz,100khz,120khz,135khz,175khz,200khz

220V

UCE-HFQX3000W

3000W

50KHZ,54khz,68khz,80khz,100khz,120khz,135khz,175khz,200khz

220V

high frequency ultrasonic cleaning machinehigh frequency ultrasonic cleaning machinehigh frequency ultrasonic cleaning machine

TAG ultrasonic: When to use High Frequency Ultrasonic Cleaner Choosing the Best Ultrasonic Frequency High Frequency Ultrasonic Cleaner 80KHZ or 120KHZ Frequency Used in Ultrasonic Cleaning
