High frequency Ultrasonic cleaning transducer

Ultrasonic cleaning transducer is to convert electrical energy into sound energy which also is called...

WeChat

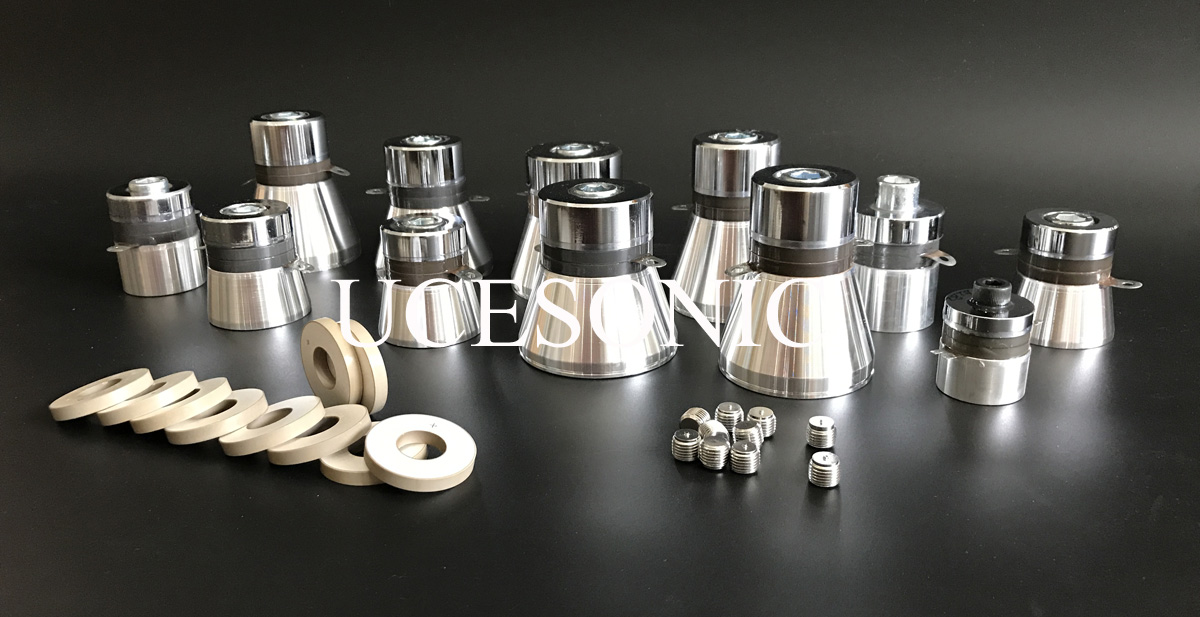

Ultrasonic cleaning transducer is to convert electrical energy into sound energy which also is called ultrasonic sensor.it is composed of outer shell,matching tier,ring piezoelectric ceramic,backing material,outgoing cable and cymbal.
Black chips for the P4 series, this kind of piezoelectric materials belong to medium power emission type materials, has a dual characteristic to send and receive,
Has taught low dielectric loss and high mechanical quality factor, the main application, ultrasonic atomizer, etc.

Yellow chips for the P8 series, this kind of piezoelectric material belongs to large power emission type, the main characteristics of high mechanical quality factor,
Good stability, very low dielectric loss, especially suitable for the production of high power transmission with ultrasonic transducer.Widely used in
Ultrasonic welding, ultrasonic emulsification, ultrasonic polishing, ultrasonic cleaning, etc.

Type Length(mm) Weight(g) Frequency(KHz) Resonance Impedance
(Ω)
Static Capacity
(pF)±10%
Input Power(W)
UCE-UT-5435
PZT-4
36

135

54

10-20

3200

35

UCE-UT-6860
PZT-8
80

460

68

10-20

3800

60

UCE-UT-68120
PZT-4
67

588

68

10-20

7800

120

UCE-UT-8060
PZT-4
60

325

80

10-20

5400

60

UCE-UT-12060
PZT-4
56

260

120

10-20

5400

60

UCE-UT-13550
PZT-4
54

215

135

10-20

4200

50

High frequency Ultrasonic cleaning transducerHigh frequency Ultrasonic cleaning transducer

TAG ultrasonic: ultrasound transducer frequency range High frequency piezoceramic Ultrasonic transducer
