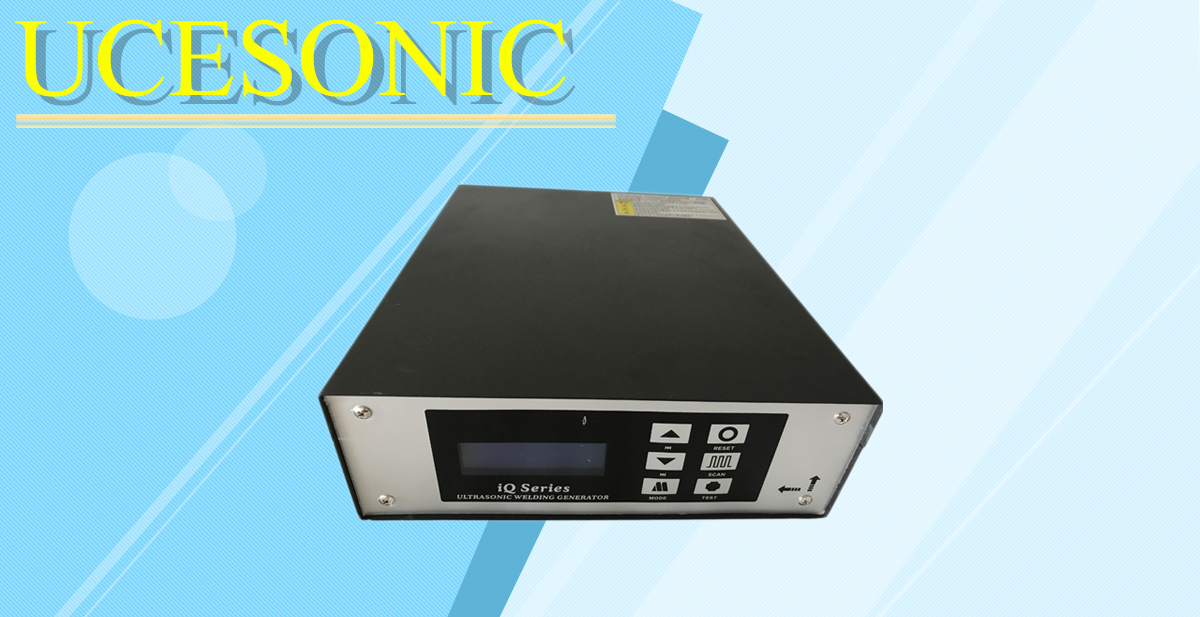

Ultrasonic welding generator 15khz/20khz

The generator converts electrical power from the single-phase mains to the correct frequency and voltage for the transducer to convert into mechanical vibrations. ...

WeChat

The generator converts electrical power from the single-phase mains to the correct frequency and voltage for the transducer to convert into mechanical vibrations. The microprocessor unit controls the welding cycle and feeds back key welding information to the user, via the user interface. The user interface also allows the operator to enter the required welding parameters.


Benefits of Ultrasonic Welding generator
 Neat weld seams
         besause of no additional adhesives  needed to the welding joins created with ultrasonic welding are extremely neat and visually attractive. This means the process can be used for joins that will be visible once final assembly has been completed.
High level of quality
        As all of the welding part of the operation is automated each part produced will be of high quality. Human error plays a very small part in the operation and so accuracy and repeatability will also be high.
Low cycle times
      The actual time it takes for a part to be welded is typically less than one second. This means that the loading and unloading of the machine will take up the majority of the cycle time, keeping cycle times to a minimum. This low cycle time means that large batches can be produced in a very short space of time.
Type Power(W) Frequency (KHz) Voltage
AC110V60HZ+/-10%  USA /LATIN AMERICA STANDARD ARE AVAILABLE
AC220V50HZ+/-10% EUROPE/ASIA/OCEANIA/AFRICA ARE AVAILABLE
All of machine are available for opening remote control function to connect with your own PLC system
UCE-WTI-100W 100W 28khz/40khz 110V or220V
UCE-WTI-300W 300W 28khz/40khz 110V or220V
UCE-WTI-500W 500W 15KHz/20khz/28khz/40khz 110V or220V
UCE-WTI-900W 900W 15KHz/20khz/28khz 110V or220V
UCE- WTI-1500W 1500W 15KHz/20khz 110V or220V
UCE- WTI-1800W 1800W 15KHz/20khz 220V
UCE- WTI-2000W 2000W 15KHz/20khz 220V
UCE- WTI-2600W 2600W 15KHz 220V
UCE- WTI-3200W 3200W 15KHz 220V
UCE- WTI-4200W 4200W 15KHz 220V
Ultrasonic welding generatorUltrasonic welding generatorUltrasonic welding generator
