Multi Tank Industrial Cleaning Rinsing Drying Filtration Ultrasonic Cleaner For Hardware Parts

2020-02-05 21:42 admin
Multi Tank Industrial Cleaning Rinsing Drying Filtration Ultrasonic Cleaner For Hardware Parts
Description of ultrasonic cleaner:

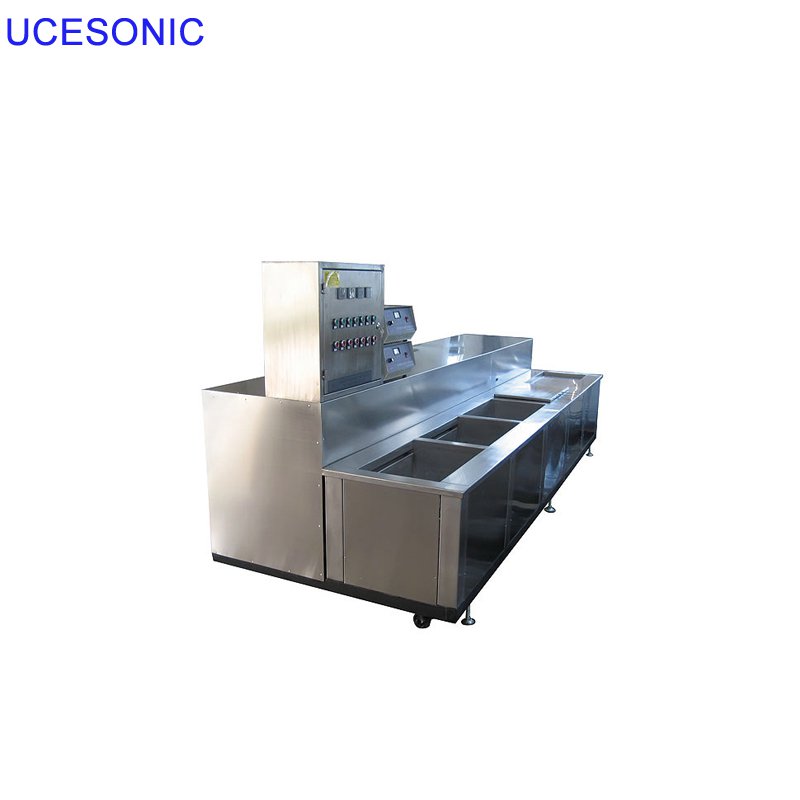

The cleaning machine is an ultrasonic equipment made of three stainless steel tanks, which is composed of ultrasonic rough cleaning system, ultrasonic fine cleaning system, rinsing, filtering circulation system, automatic temperature control heating system, rack and electric control system. The operator places the cleaning workpiece in the tooling basket, and manually or other handling tools send the tooling basket with workpiece to each process section in turn. The workpiece is subject to ultrasonic rough cleaning, ultrasonic fine cleaning, rinsing and other processes. The cleaning part of the whole machine is a semi closed structure, and the power distribution facilities of the equipment are independent electric control cabinets.
Composition structure
The cleaning machine is mainly composed of ultrasonic generator, transducer, ultrasonic system, rinsing system, filtering system, electrical control part, tank body part, overflow system, water outlet, acoustic protection cover, etc
The working principle of the multi groove ultrasonic cleaning machine is to use the mechanical vibration with strong ultrasonic penetration force to impact the surface of the workpiece and to clean the workpiece surface with cleaning agent. The working process is to manually put the workpiece to be cleaned into the tooling basket, and then clean it in turn according to the cleaning process. After cleaning, take out the workpiece manually. This equipment is easy to operate. Closed appearance, beautiful and generous modeling structure. High cleaning efficiency, consistent cleaning quality, suitable for mass production. The key electrical control parts of the equipment are imported high-quality parts with reliable performance and long service life.
Equipped with circulating filter device, it can effectively filter the impurities in the cleaning solution and keep the cleaning solution clean.
Equipped with automatic temperature control, when the temperature rises to the set temperature, it will automatically cut off power and stop heating, so as to save energy consumption.
Equipped with cleaning tooling basket.
Multi Tank Industrial Cleaning Rinsing Drying Filtration Ultrasonic Cleaner For Hardware Parts
Multi Tank Industrial Cleaning Rinsing Drying Filtration Ultrasonic Cleaner For Hardware Parts

Multi Tank Industrial Cleaning Rinsing Drying Filtration Ultrasonic Cleaner For Hardware Parts
