25khz ultrasonic transducer for strong Ultrasonic amplitude

Ultrasonic cleaning transducer mainly includes shell, sound window (matching layer), piezoelectric ceramic disc transducer, backing, lead-out cable, Cymbal array receiver and so on. Among them, the piezoelectric ceramic disc transducer plays the same role as the general transducer, mainly used for transmitting and receiving ultrasonic; while the piezoelectric ceramic disc transducer is above the Cymbal array receiver, mainly composed of lead-out cable, Cymbal transducer, metal ring and rubber washer, used as ultrasonic receiver, accept. The Doppler echo signal generated outside the frequency band of the piezoelectric ceramic disc transducer.

Ultrasonic dishwasher cleaning transducer is actually piezoelectric ceramics with the same frequency as its resonance frequency. It uses the piezoelectric effect of materials to convert electrical energy into mechanical vibration. Usually, the ultrasonic generated by the ultrasonic generator, ultrasonic transducer will be converted into mechanical vibration, and then through the ultrasonic derivation device, ultrasonic receiving device can produce ultrasonic.

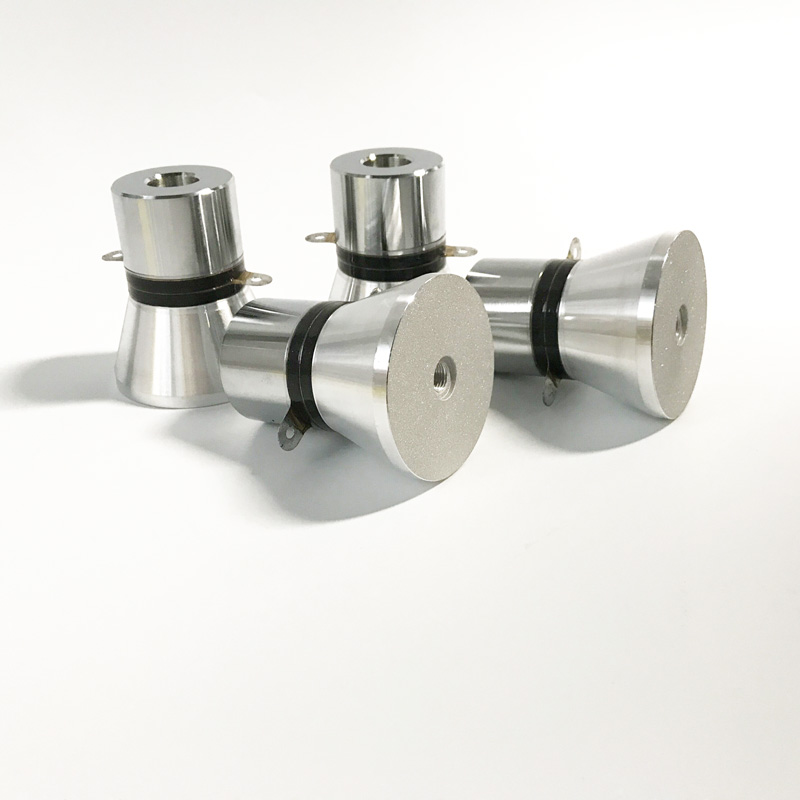

1. Our company produces the common ultrasonic vibrator, which belongs to the transducer for cleaning. It is mainly the same as the ultrasonic dishwasher cleaning. It is a piezoelectric ceramic converter that converts the high frequency sinusoidal voltage signal into the high frequency mechanical vibration signal. It is installed on the bottom or the side wall of the cleaning tank, transmitted through the tank body and used in the cleaning medium. The vibration signal of the transducer is converted into cavitation effect, and the object attachment is quickly peeled off to achieve the cleaning goal.



2. Our company's annual spot supply frequency 17KHZ/20KHZ/22KHZ/25KHZ/28KHZ/33KHZ/40KHZ/53KHZ/60KHZ/80KHZ/100KHZ/200KHZ cleaning oscillator, frequency selection reference: low-frequency ultrasound (17-50KHZ) is suitable for most of the dirt and cleaning surface bonding strength occasions, high-frequency ultrasound (50-200KHZ) suitable for cleaning parts. Cleaning of precision parts. In order to achieve better results, low frequency and high frequency ultrasound can be selected simultaneously.

Type	Length（mm）	Weight（g）	Frequency（KHz）	Resonance Impedance （Ω）	Static Capacity （pF）±10%	Input Power（W）
UCE-UT-20100 PZT-8	94	900	20	10-20	5200	100
UCE-UT-25100 PZT-4	77	710	25	10-20	6600	100
UCE-UT-28120 PZT-4	66	720	28	10-20	7800	120
UCE-UT-28100 PZT-8	66	625	28	10-20	5200	100
UCE-UT-28100 PZT-4	66	624	28	10-20	6600	100
UCE-UT-30100 PZT-8	61	555	30	10-20	5200	100
UCE-UT-2560 PZT-4	77	530	25	10-20	5400	60
UCE-UT-2860 PZT-8	68	470	28	10-20	3800	60
UCE-UT-2850 PZT-4	82	425	28	10-20	4100	50
UCE-UT-3360 PZT-8	58	420	33	10-20	3800	60
UCE-UT-4060 PZT-8	55	300	40	10-20	3800	60
UCE-UT-4060 PZT-4	56	310	40	10-20	5400	60
UCE-UT-4050 PZT-4	54	260	40	10-20	4100	50
UCE-UT-4050-1 PZT-4	57	300	40	10-20	4100	50
UCE-UT-5435 PZT-4	36	135	54	10-20	3200	35
UCE-UT-6860 PZT-8	80	460	68	10-20	3800	60
UCE-UT-68120 PZT-4	67	588	68	10-20	7800	120
UCE-UT-8060 PZT-4	60	325	80	10-20	5400	60
UCE-UT-12060 PZT-4	56	260	120	10-20	5400	60
UCE-UT-13550 PZT-4	54	215	135	10-20	4200	50
