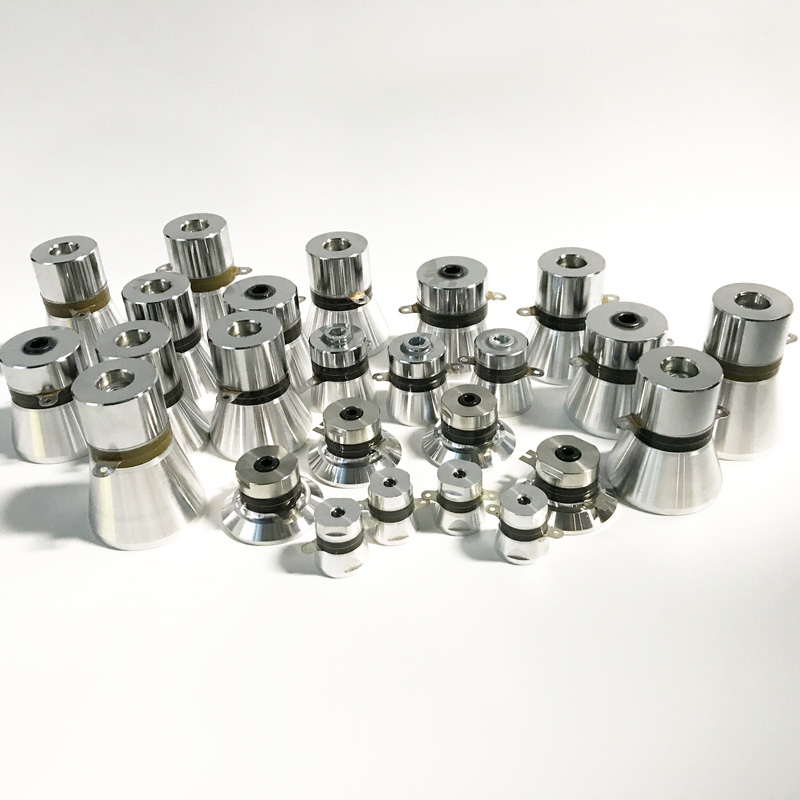

ultrasonic transducer 20khz 100W for cleaning machine

Ultrasonic transducers are all types of devices that transmit and receive ultrasonic waves. Various types of transducers can be used according to their operating environment, operating frequency, required power, and different uses.

Ultrasonic transducers are all types of devices that transmit and receive ultrasonic waves. As far as transducer principle is concerned, some ultrasonic transducers utilize the physical effects of transducer materials, such as piezoelectric effect, magnetostriction, electrostriction and so on; others utilize the electrodynamic effects of transducer structures, such as electromagnetic effect and electrostatic effect; some utilize the vortex vibration of fluid injection and the resonance and modulation of structures. In addition, according to the transducer operating environment, frequency, power requirements, different uses, etc., can be used in a variety of structural forms.



The ultrasonic transducer will be heated when used, which is mainly caused by three reasons. One is that the welded workpiece will be heated or the ultrasonic material will be heated, or the mold (tool head), horn long-term work will be heated, these heat will be transferred to the transducer. The second is the power loss of the transducer itself. Since the energy conversion efficiency can not be 100%, the loss of that part of the energy must be converted into heat ultrasonic transducer. Temperature rise will lead to the change of ultrasonic transducer parameters, and gradually shift to the best matching state. What is more serious is that temperature rise will lead to the deterioration of piezoelectric ceramic wafer performance. This in turn makes the ultrasonic transducer work worse and warms up faster, which is a vicious cycle. Therefore, we must give the ultrasonic transducer good cooling conditions, generally at room temperature air cooling; if necessary, can also use cold air cooling. Under normal conditions, the temperature rise caused by these two points is also normal, under normal cooling conditions, there will be no major problems.

Type	Length（mm）	Weight（g）	Frequency（KHz）	Resonance Impedance （Ω）	Static Capacity （pF）±10%	Input Power（W）
UCE-UT-20100 PZT-8	94	900	20	10-20	5200	100
UCE-UT-25100 PZT-4	77	710	25	10-20	6600	100
UCE-UT-28120 PZT-4	66	720	28	10-20	7800	120
UCE-UT-28100 PZT-8	66	625	28	10-20	5200	100
UCE-UT-28100 PZT-4	66	624	28	10-20	6600	100
UCE-UT-30100 PZT-8	61	555	30	10-20	5200	100
UCE-UT-2560 PZT-4	77	530	25	10-20	5400	60
UCE-UT-2860 PZT-8	68	470	28	10-20	3800	60
UCE-UT-2850 PZT-4	82	425	28	10-20	4100	50
UCE-UT-3360 PZT-8	58	420	33	10-20	3800	60
UCE-UT-4060 PZT-8	55	300	40	10-20	3800	60
UCE-UT-4060 PZT-4	56	310	40	10-20	5400	60
UCE-UT-4050 PZT-4	54	260	40	10-20	4100	50
UCE-UT-4050-1 PZT-4	57	300	40	10-20	4100	50
UCE-UT-5435 PZT-4	36	135	54	10-20	3200	35
UCE-UT-6860 PZT-8	80	460	68	10-20	3800	60
UCE-UT-68120 PZT-4	67	588	68	10-20	7800	120
UCE-UT-8060 PZT-4	60	325	80	10-20	5400	60
UCE-UT-12060 PZT-4	56	260	120	10-20	5400	60
UCE-UT-13550 PZT-4	54	215	135	10-20	4200	50
