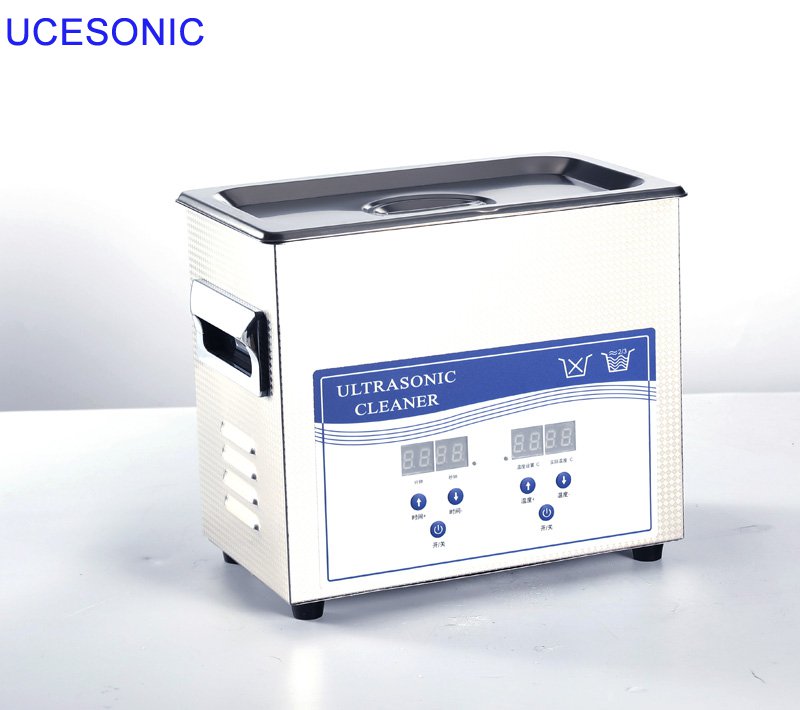

ultrasonic cleaner electronic components 28khz/40khz

Ultrasonic cleaning technology is a very mature cleaning technology abroad, widely used in machinery, electronics and other fields. Cleaning of electronic circuit boards after welding is one of the most important applications. Domestic application in this area is also more common, but it can not be said, many manufacturers have not understood the basic principle of ultrasonic cleaning, therefore, the application of ultrasonic cleaning technology is very irregular side, and even the principle of ultrasonic cleaning is completely contrary. Some manufacturers, nominally using ultrasonic cleaning, in fact only as a common soaking tank to use, because of the ultrasonic cleaning process is unreasonable, simply can not clean the electronic circuit board. On the contrary, it may cause damage to the electronic circuit board and its components.


Another consideration for ultrasonic cleaning is the design of the tooling for the upper, lower, or placement of electronic circuit boards. When the electronic circuit board is in the ultrasonic cleaning tank, neither the electronic circuit board nor the circuit board basket can touch the bottom of the tank. The total cross-sectional area of an electronic circuit board shall not exceed the cross sectional area of the ultrasonic slot. Rubber and non rigid plastics absorb ultrasonic energy, so caution should be taken when applying such materials to tooling. The efficiency of even the best ultrasonic cleaning system can be greatly reduced if the tooling basket is not properly designed or the workpiece is too heavy. Any material, if the mesh is higher than the eye, exhibits physical properties for ultrasonic waves and reflects them back. When the mesh is larger than the ultrasonic wave, the performance of the open material is displayed. Hooks, shelves and beaker can be used to support circuit boards. In practice, some people casually stack the electronic circuit boards in the cleaning tank of the ultrasonic cleaning machine, so it can not play the unique role of ultrasonic cleaning, and the ultrasonic cleaning machine is equivalent to the ordinary immersion cleaning tank.

Model	Tank Size	Unit Size	Volume	Power	Ultrasonic Frequency	Heating Power	Timer	Heating
	L x W x H(mm)	L x W x H(mm)	(L)	(W)	(KHz)	(W)	(MIN)	(℃)
UCE103H	150x140x65	190x170x185	1.3	50	40	100	1-99	0-80
UCE002H	150x140x100	190x170x220	2	50		100	1-99	0-80
UCE003H	240x140x100	270x170x240	3	100		100	1-99	0-80
UCE006H	300x155x150	330x180x310	6	150		300	1-99	0-80
UCE010H	300x240x150	330x270x310	9	200		300	1-99	0-80
UCE013H	355x325x150	360x330x310	13	300		400	1-99	0-80
UCE020H	530x325x150	550x330x310	20	400		500	1-99	0-80
UCE027H	530x325x200	550x330x360	27	500		500	1-99	0-80
