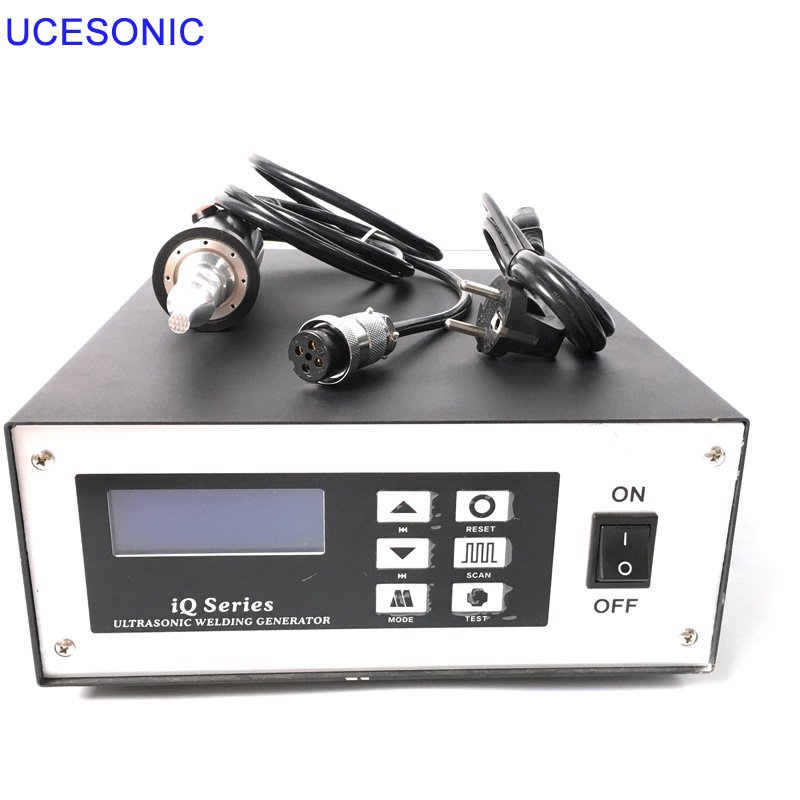

28Khz Ultrasonic Spot Welding Machine / Hand Ultrasonic Riveting Gun with Titanium Alloy Horn Tip
The hand-held
ultrasonic welding machine can also be used for the welding, riveting, spot welding of thermoplastic products and the inlaying and edge pressing process between metal parts and plastic parts. The ceramic jigs the backward process of pasting with chemical organic melting point agent, which has the characteristics of low energy consumption, high efficiency, no deformation, no pollution, firm welding, convenient operation, etc. The handle can also be hand-held. The plastic parts can be pressed by the hand-held part, and the ultrasonic switch can be pressed at the same time to send out the ultrasonic wave for welding. The research shows that the use of hand-held ultrasonic welding machine in the plastic industry has become increasingly common in the world. This technology can replace the flux, adhesive, fastener or other mechanical fixing methods needed in the past production, thus improving the production efficiency and reducing the cost.
Type |
power
(W) |
Frequency |
Welding time |
Contains |
UCE-HH300W |
300W |
20khz,28khz,30khz,35khz,40khz |
0.1-3sec |
generator , transducer ,horn,head |
UCE-HH500W |
500W |
20khz,28khz,30khz |
0.1-3sec |
generator , transducer ,horn,head |
UCE-HH900W |
900W |
20khz,28khz,30khz |
0.1-3sec |
generator , transducer ,horn,head |
UCE-HH1000W |
1000W |
20khz,28khz |
0.1-3sec |
generator , transducer ,horn,head |
UCE-HH1200W |
1200W |
20khz,28khz |
0.1-3sec |
generator , transducer ,horn,head |
28Khz Ultrasonic Spot Welding Machine / Hand Ultrasonic Riveting Gun with Titanium Alloy Horn Tip
