Aesthetic Efficient And Firm Automobile Spoiler By Ultrasonic Puncture Welding

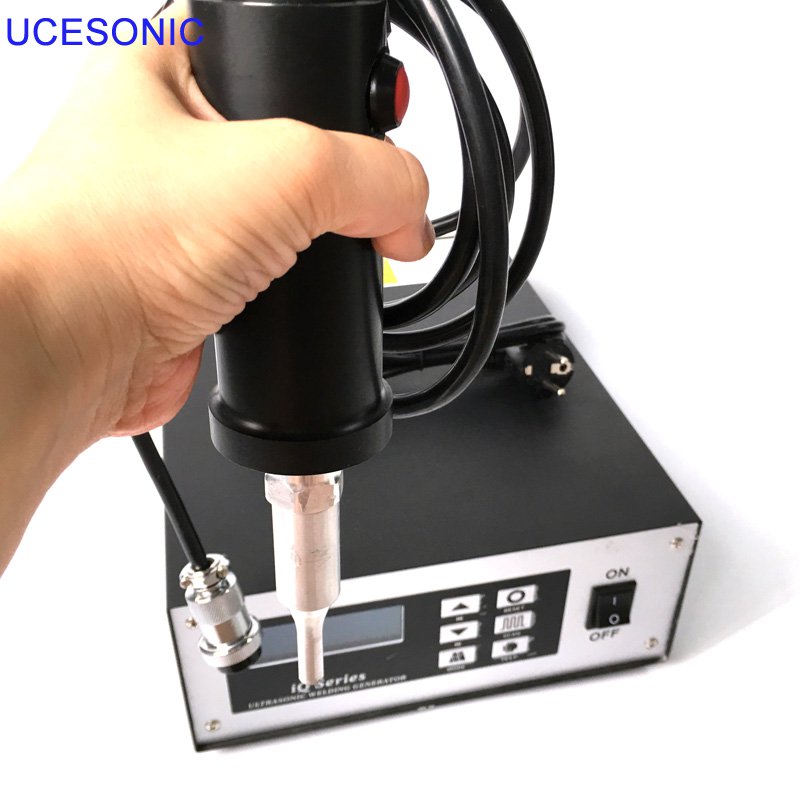

Use process of hand-held ultrasonic spot welder:



1. Connect one end of the cable to the output control cable connector on the vibration generator, and the other end to the output control cable socket on the back of the electric box, and tighten it.

2. Wipe the connection surface of the welding head, connect it to the transducer of the vibration generator, and lock it with a wrench. Note: when connecting, make sure that the two connecting surfaces between the welding head and the transducer are identical and locked. Do not damage the machine due to too long connecting screw or failure to lock the sliding teeth, otherwise the sound transmission is not smooth.

3. When loading and unloading the welding head, two wrenches must be used to block the welding and transducer respectively, and only one part of the welding head must not be locked or loaded and unloaded, so as to avoid damage to the hand-held vibration generator.

4. After checking that points 1 and 2 are installed properly, plug the power cord socket into the external power socket, and pull the power switch, when the power indicator light is on.

5. Press the acoustic wave control switch gently, and then you can hear the "squeak" sound from the welding hair when the acoustic wave is transmitted to the welding head, indicating that the machine is working normally
