35kHz Ultrasonic Spot Welding Machine For Canopy And Tent Material

2020-01-30 12:59 admin
35kHz Ultrasonic Spot Welding Machine For Canopy And Tent Material
Application method of hand-held ultrasonic spot welder:

1、 Welding method: under moderate pressure, the welding head with ultrasonic ultra-high frequency vibration causes friction heat on the joint surface of two pieces of plastic and instant fusion joint. The welding strength can be comparable to that of the body. With appropriate workpiece and reasonable interface design, it can achieve watertight and airtight, avoid the inconvenience caused by the use of auxiliary products, and realize efficient and clean welding (see details).

2、 Riveting welding method: the ultrasonic ultra-high frequency vibration welding head is pressed on the protruding tip of plastic products, so that its instantaneous heating melts into the shape of rivets, so that different materials are mechanically riveted together. 3、 Embedding: with the help of the channel of the welding head and the appropriate pressure, the metal parts (such as nuts, screws, etc.) are squeezed into the reserved plastic holes in a moment, and fixed at a certain depth. After completion, the tensile force and torsion force can be comparable to the strength of the traditional mold molding, and the defect of damage and slow injection of the injection mold can be avoided.

4、 Forming: this method is similar to the riveting welding method. The concave welding head is pressed on the outer ring of the plastic product. After the ultrasonic ultra-high frequency vibration of the welding head is emitted, the plastic is melted and formed to cover the metal object to make it fixed, and the appearance is smooth and beautiful. This method is mostly used in the fixed forming of the electronics, the horn, and the lens fixation of cosmetics.

5、 Spot welding: A. no need to design welding line in advance to achieve the purpose of welding. B. For large workpieces, it is not easy to design welding line to carry out spot welding, and to achieve the welding effect, it can spot weld multiple points at the same time.

6、 Cutting and sealing: using the working principle of ultrasonic instantaneous vibration to cut the chemical fiber fabric, its advantages are smooth cut without cracking and drawing.
Type power
(W)
Frequency Welding time Contains
UCE-HH300W 300W 20khz,28khz,30khz,35khz,40khz 0.1-3sec generator , transducer ,horn,head
UCE-HH500W 500W 20khz,28khz,30khz 0.1-3sec generator , transducer ,horn,head
UCE-HH900W 900W 20khz,28khz,30khz 0.1-3sec generator , transducer ,horn,head
UCE-HH1000W 1000W 20khz,28khz 0.1-3sec generator , transducer ,horn,head
UCE-HH1200W 1200W 20khz,28khz 0.1-3sec generator , transducer ,horn,head

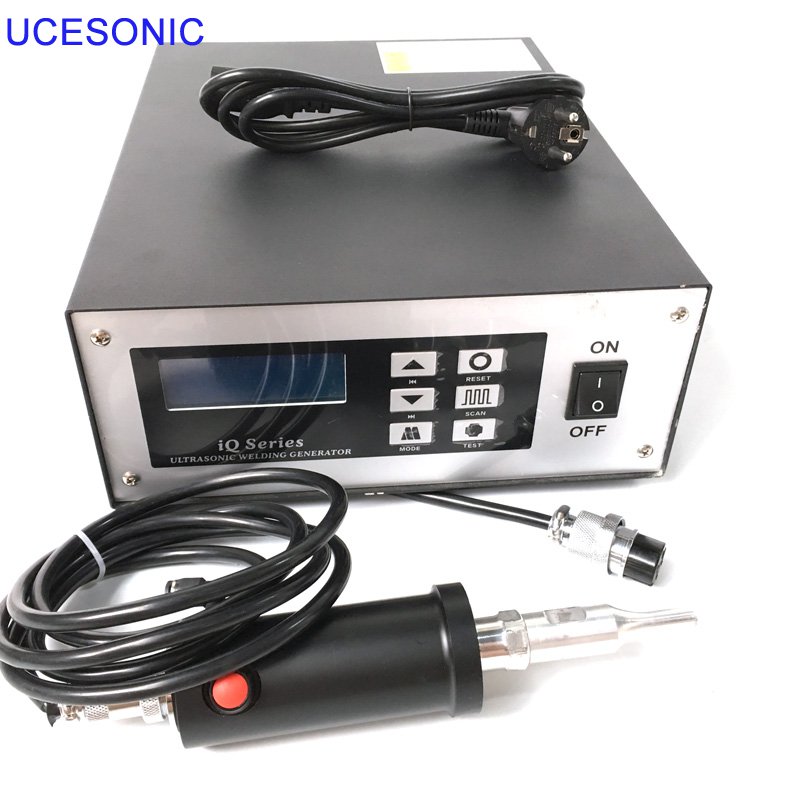

35kHz Ultrasonic Spot Welding Machine For Canopy And Tent Material
35kHz Ultrasonic Spot Welding Machine For Canopy And Tent Material

35kHz Ultrasonic Spot Welding Machine For Canopy And Tent Material
