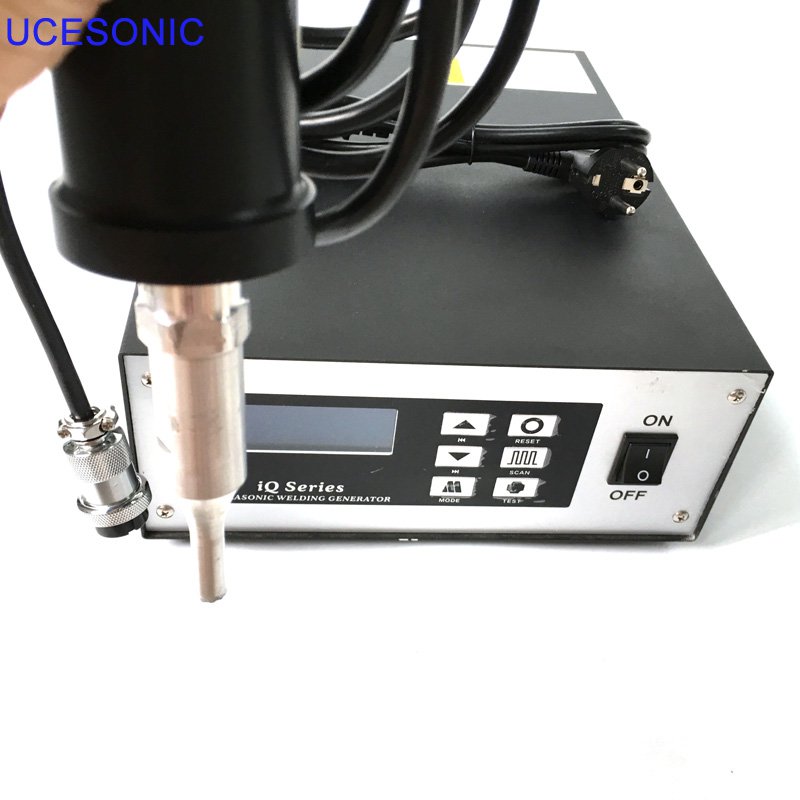

Portable Ultrasonic Spot Welding For 35Khz Multi Riveting Horn Of Auto Parts
Introduction to the function of hand-held ultrasonic spot welder ultrasonic is not only very useful in welding, but also widely used in other industries, such as ultrasonic cleaning. Ultrasonic welding uses high-frequency vibration wave to transfer to the two surfaces of the object to be welded. Under the condition of pressure, the two surfaces rub against each other to form the fusion between the molecular layers. Ultrasonic cleaning is to use the cavitation effect, acceleration effect and direct inflow effect of ultrasonic in liquid to directly and indirectly affect the liquid and dirt, so that the dirt layer is dispersed, emulsified and peeled to achieve cleaning purpose. In
ultrasonic cleaning machine, cavitation effect and direct inflow are used more.
Type |
power
(W) |
Frequency |
Welding time |
Contains |
UCE-HH300W |
300W |
20khz,28khz,30khz,35khz,40khz |
0.1-3sec |
generator , transducer ,horn,head |
UCE-HH500W |
500W |
20khz,28khz,30khz |
0.1-3sec |
generator , transducer ,horn,head |
UCE-HH900W |
900W |
20khz,28khz,30khz |
0.1-3sec |
generator , transducer ,horn,head |
UCE-HH1000W |
1000W |
20khz,28khz |
0.1-3sec |
generator , transducer ,horn,head |
UCE-HH1200W |
1200W |
20khz,28khz |
0.1-3sec |
generator , transducer ,horn,head |
Portable Ultrasonic Spot Welding For 35Khz Multi Riveting Horn Of Auto Parts
