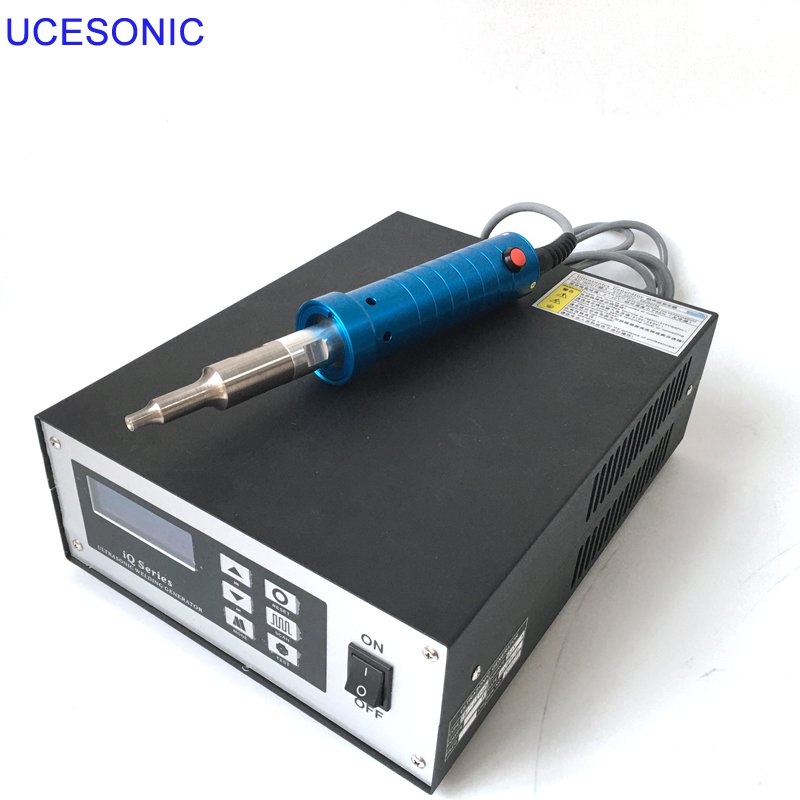

portable ultrasonic spot plastic welding machine PP/PA/ABS plastic

portable ultrasonic spot plastic welding machine PP/PA/ABS plastic
There is no need for flux and external heating, no deformation due to heating, no residual stress, and the requirements for pre welding treatment of weldment surface are not high. Not only the same kind of metal, but also the dissimilar metal can be welded. Thin sheets or filaments can be welded to thick plates. The energy of ultrasonic welding is much less than that of current welding. It is often used to weld the leads of transistors or integrated circuits. When it is used for seal welding of drugs and explosive materials, it can avoid the contamination of drugs due to dissolved objects in general welding, and it will not explode due to heating, etc.

Type	power （W）	Frequency	Welding time	Contains
UCE-HH300W	300W	20khz,28khz,30khz,35khz,40khz	0.1-3sec	generator , transducer ,horn,head
UCE-HH500W	500W	20khz,28khz,30khz	0.1-3sec	generator , transducer ,horn,head
UCE-HH900W	900W	20khz,28khz,30khz	0.1-3sec	generator , transducer ,horn,head
UCE-HH1000W	1000W	20khz,28khz	0.1-3sec	generator , transducer ,horn,head
UCE-HH1200W	1200W	20khz,28khz	0.1-3sec	generator , transducer ,horn,head

portable ultrasonic spot plastic welding machine PP/PA/ABS plastic
