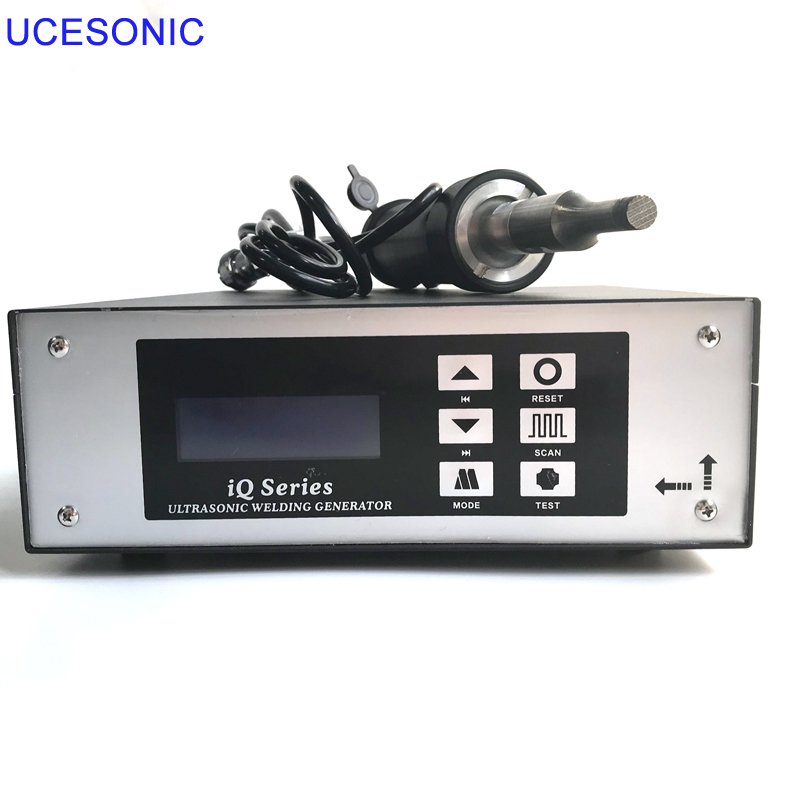

ultrasonic welder Textile fabrics hand held spot welding machine

2019-08-29 11:59 admin
ultrasonic welder Textile fabrics hand held spot welding machine
In addition, the use process of hand-held ultrasonic spot welding machine:

1. Connect one end of the cable to the output control cable connector on the vibration cylinder, and the other end to the output control cable socket on the back of the box, and tighten.
2. Wipe the connecting surface of the welded joint clean, connect it to the transducer of the vibration cylinder, and lock it with a wrench. Note: When connecting, it is necessary to ensure that the two joints between the welding head and the transducer coincide and lock. The connection screw should not be too long or the sliding teeth can not be locked. Otherwise, the transmission of sound wave is not smooth, which will cause damage to the machine.
3. When loading and unloading the welding head, two wrenches must be used to lock the welding and transducer separately. Not only one part of the welding head should be locked or unloaded, so as not to cause damage to the portable vibration cylinder.
4. After checking the installation of points 1 and 2, insert the power cord socket into the external power socket and pull the power switch, then the power indicator lights up.
5. Soft pressure sound wave control switch, when the sound wave is transmitted to the welding head, the "squeak" sound of the welding head can be heard, which indicates that the machine works normally and can be put into use.
6. In case of abnormal operation, do not dismantle the equipment privately. Please notify the supplier or send the equipment to the manufacturer for inspection and repair.
Type power
(W)
Frequency Welding time Contains
UCE-HH300W 300W 20khz,28khz,30khz,35khz,40khz 0.1-3sec generator , transducer ,horn,head
UCE-HH500W 500W 20khz,28khz,30khz 0.1-3sec generator , transducer ,horn,head
UCE-HH900W 900W 20khz,28khz,30khz 0.1-3sec generator , transducer ,horn,head
UCE-HH1000W 1000W 20khz,28khz 0.1-3sec generator , transducer ,horn,head
UCE-HH1200W 1200W 20khz,28khz 0.1-3sec generator , transducer ,horn,head
ultrasonic welder Textile fabrics hand held spot welding machine

ultrasonic welder Textile fabrics hand held spot welding machine
