20khz/2000W ultrasonic welding generator for mask stitching machine

2020-06-23 21:24 admin

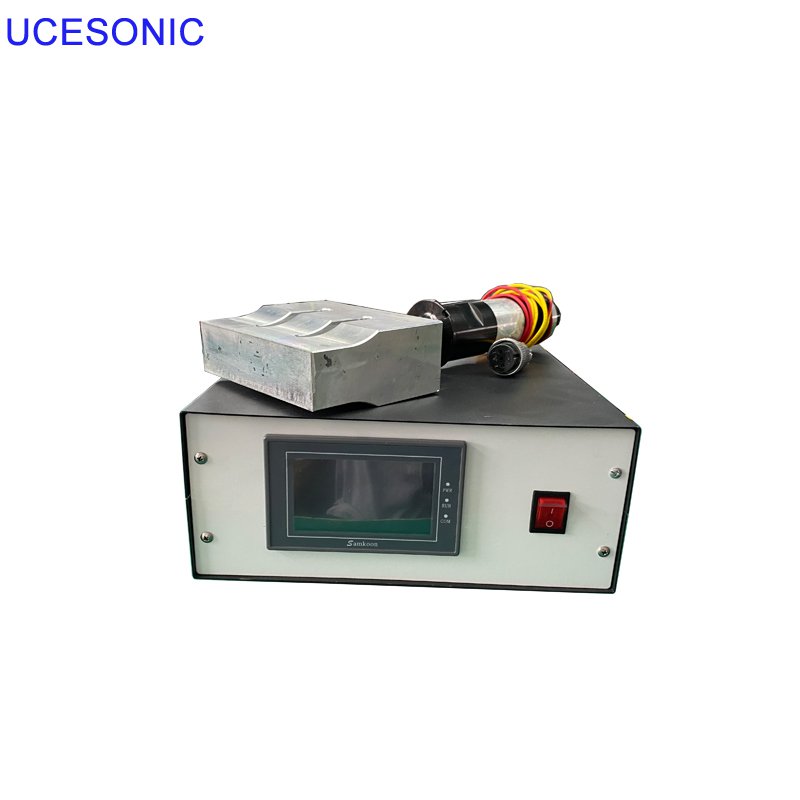

20khz/2000W ultrasonic welding generator for mask stitching machine
The ultrasonic mask welding machine uses the high frequency vibration wave to transfer to the two surfaces of the object to be welded. Under the condition of pressure, the two surfaces of the object rub against each other to form the fusion between the molecular layers.
ome indentations can be seen everywhere on the mask, such as edge sealing, ear band and exhalation valve are all ultrasonic welded. As shown in the above figure, in the production process of respirator, we can intuitively understand the welding of full plastic nose beam, welding after folding edge, breathing valve welding, multi-layer roll welding and ear band welding, which are actually completed by ultrasonic welding process.
When the ultrasonic wave acts on the thermoplastic contact surface, it will generate tens of thousands of high-frequency vibrations per second. This kind of high-frequency vibration reaches a certain amplitude. The ultrasonic energy is transmitted to the welding area through the upper weldment. Because the acoustic resistance of the welding area, i.e. the interface between the two welds, is large, it will generate local high temperature. Due to the poor thermal conductivity of the plastic, it can not be distributed in time for a while, and gathered in the welding area, resulting in the rapid melting of the contact surfaces of the two plastics, plus a certain amount of pressure, so that they are integrated.
Ultrasonic welding process
Type Power(W) Frequency (KHz) Voltage
AC110V60HZ+/-10%  USA /LATIN AMERICA STANDARD ARE AVAILABLE
AC220V50HZ+/-10% EUROPE/ASIA/OCEANIA/AFRICA ARE AVAILABLE
All of machine are available for opening remote control function to connect with your own PLC system
UCE-WTI-100W 100W 28khz/40khz 110V or220V
UCE-WTI-300W 300W 28khz/40khz 110V or220V
UCE-WTI-500W 500W 15KHz/20khz/28khz/40khz 110V or220V
UCE-WTI-900W 900W 15KHz/20khz/28khz 110V or220V
UCE- WTI-1500W 1500W 15KHz/20khz 110V or220V
UCE- WTI-1800W 1800W 15KHz/20khz 220V
UCE- WTI-2000W 2000W 15KHz/20khz 220V
UCE- WTI-2600W 2600W 15KHz 220V
UCE- WTI-3200W 3200W 15KHz 220V
UCE- WTI-4200W 4200W 15KHz 220V

20khz/2000W ultrasonic welding generator for mask stitching machine
20khz/2000W ultrasonic welding generator for mask stitching machine

20khz/2000W ultrasonic welding generator for mask stitching machine
