high frequency ultrasonic wave generator 80khz/100khz/200khz

2019-05-24 16:00 admin

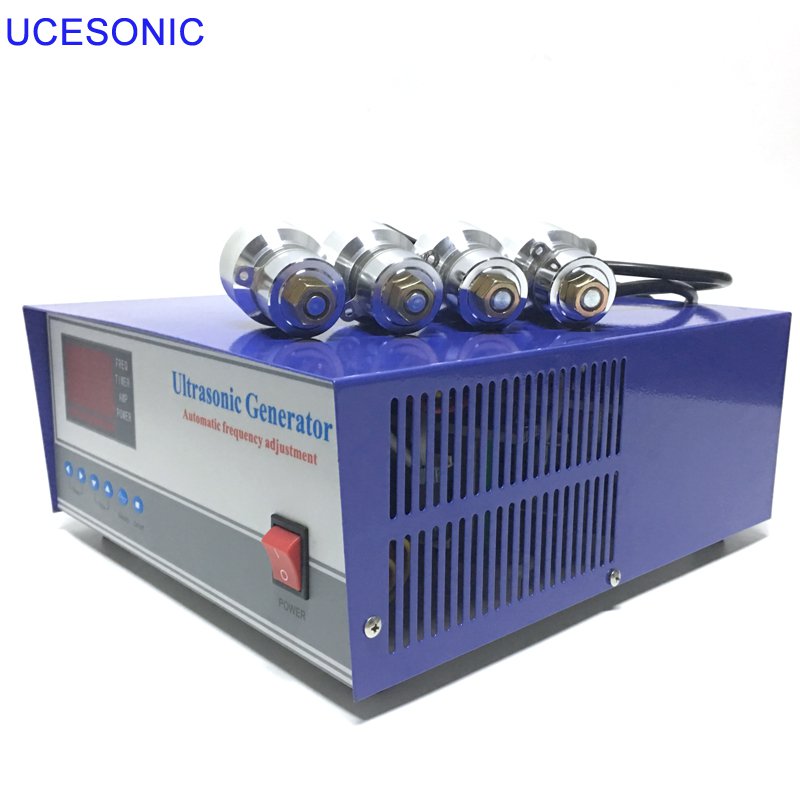

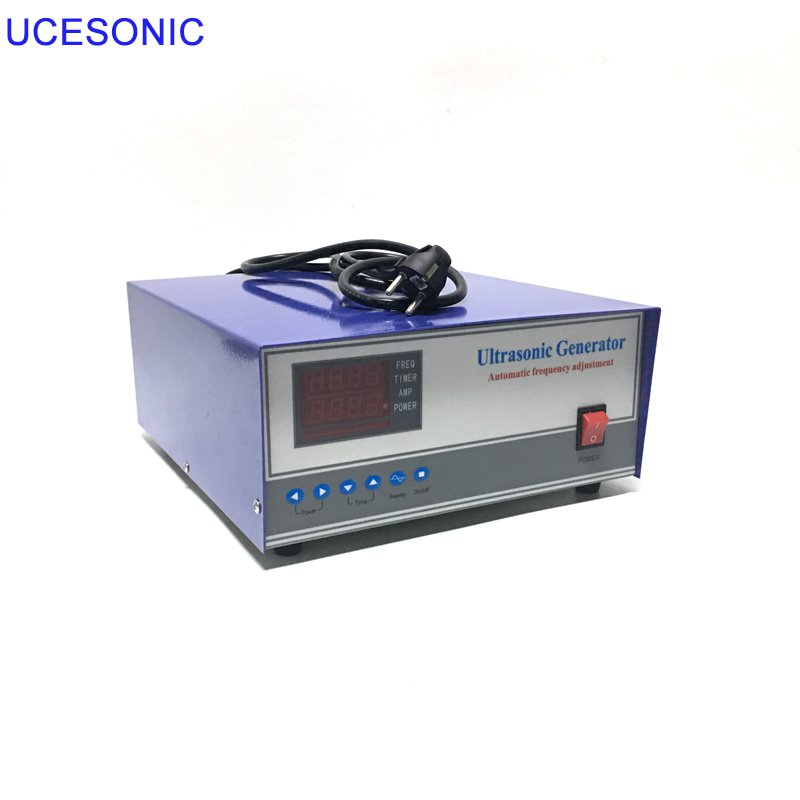

high frequency ultrasonic wave generator 80khz/100khz/200khz
Automatic broadband scanning can select different bandwidth to eliminate standing wave, improve the energy distribution of ultrasound, eliminate the cleaning blind area. It has special advanced functions such as frequency regulation and frequency compensation.

Characteristics of ultrasonic generator:
(1) SCM control, IGBT mode of operation, ultrasonic output power than the old circuit increased by more than 15%, and continuous stepless adjustable, liquid crystal display.
(2) The working voltage of the ultrasonic generator device is 220 V AC (+10%). The ultrasonic generator has protective measures such as over-voltage, over-current and short-circuit output.
(3) The ultrasonic generator has the function of stepless power regulation. The output power can be adjusted continuously from 0% to 100% to meet the requirements of various cleaning objects.
(4) The ultrasonic generator is equipped with a digital ultrasonic working time of 0-999 minutes, accurate to seconds, to achieve unattended automatic duty.

Type

Power（W）

Frequency (KHz)

Transducer numbers

Size

AC110V60HZ+/-10%  USA /LATIN AMERICA STANDARD ARE AVAILABLE
AC220V50HZ+/-10% EUROPE/ASIA/OCEANIA/AFRICA ARE AVAILABLE
All of machine are available for opening remote control function to connect with your own PLC system

UCE-NT300

300W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

3-6

300x360x150

UCE-NT600

600W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

6-12

300x360x150

UCE-NT900

900W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

9-18

300x360x150

UCE-NT1000

1000W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

10-20

300x360x150

UCE-NT1200

1200W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

12-24

300x360x150

UCE-NT1500

1500W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

15-30

300x360x150

UCE-NT1800

1800W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

18-36

300x360x150

UCE-NT2000

2000W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

20-40

300x360x150

UCE-NT2400

2400W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

24-48

300x360x150

UCE-NT3000

3000W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

50-60

300x360x150

High Frequency

300W-1200W

65-80khz

High Frequency

300W-1200W

120-135khz
high frequency ultrasonic wave generator 80khz/100khz/200khzhigh frequency ultrasonic wave generator 80khz/100khz/200khz

high frequency ultrasonic wave generator 80khz/100khz/200khz
