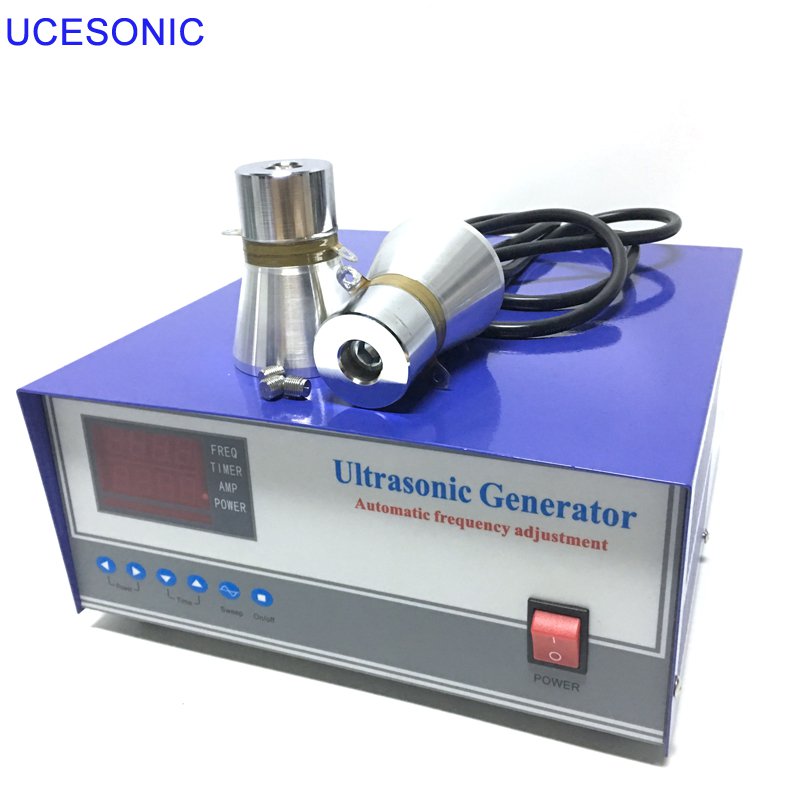

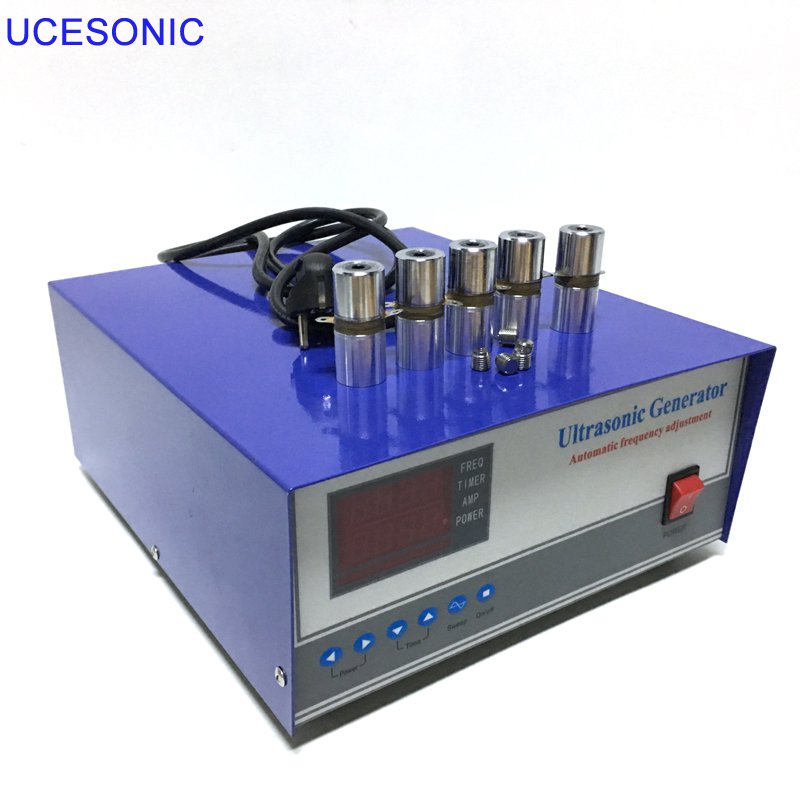

high frequency ultrasonic sound generator for cleaning

2019-05-24 15:43 admin
high frequency ultrasonic sound generator for cleaning
28k, 40K ultrasonic generator, suitable for driving 1-50 60W ultrasonic transducers, high-power ultrasonic generator, strong output power, can quickly achieve cleaning, decontamination effect, a variety of frequencies, power ultrasonic generator, can directly enter the shop, a variety of products for your choice.

Ultrasound generator has the function of frequency fine-tuning, adjusting the range of 2%. Under different working conditions, slightly adjusting makes the transducer always work in the state, the efficiency of transducer can be achieved, and the effect can be achieved under different working conditions.
The ultrasonic generator has the function of sweeping frequency. By sweeping the ultrasonic frequency in a reasonable range, the cleaning liquid is driven to form a fine reflux, so that the workpiece dirt can be quickly removed from the workpiece surface at the same time of ultrasonic peeling, and the cleaning efficiency can be improved.
The ultrasonic generator has the function of power regulation. The output power can be adjusted continuously from 10% to 100% to meet the requirements of various cleaning objects.

The customized processing of this product is that the type is one-in-one, the applicable field is the hardware industry, the use is industrial, the frequency of ultrasonic cleaning is 28KHZ, the cleaning temperature is 0-100 (?) and the working mode is ultrasonic power supply.

Type

Power（W）

Frequency (KHz)

Transducer numbers

Size

AC110V60HZ+/-10%  USA /LATIN AMERICA STANDARD ARE AVAILABLE
AC220V50HZ+/-10% EUROPE/ASIA/OCEANIA/AFRICA ARE AVAILABLE
All of machine are available for opening remote control function to connect with your own PLC system

UCE-NT300

300W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

3-6

300x360x150

UCE-NT600

600W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

6-12

300x360x150

UCE-NT900

900W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

9-18

300x360x150

UCE-NT1000

1000W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

10-20

300x360x150

UCE-NT1200

1200W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

12-24

300x360x150

UCE-NT1500

1500W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

15-30

300x360x150

UCE-NT1800

1800W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

18-36

300x360x150

UCE-NT2000

2000W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

20-40

300x360x150

UCE-NT2400

2400W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

24-48

300x360x150

UCE-NT3000

3000W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

50-60

300x360x150

High Frequency

300W-1200W

65-80khz

High Frequency

300W-1200W

120-135khz
