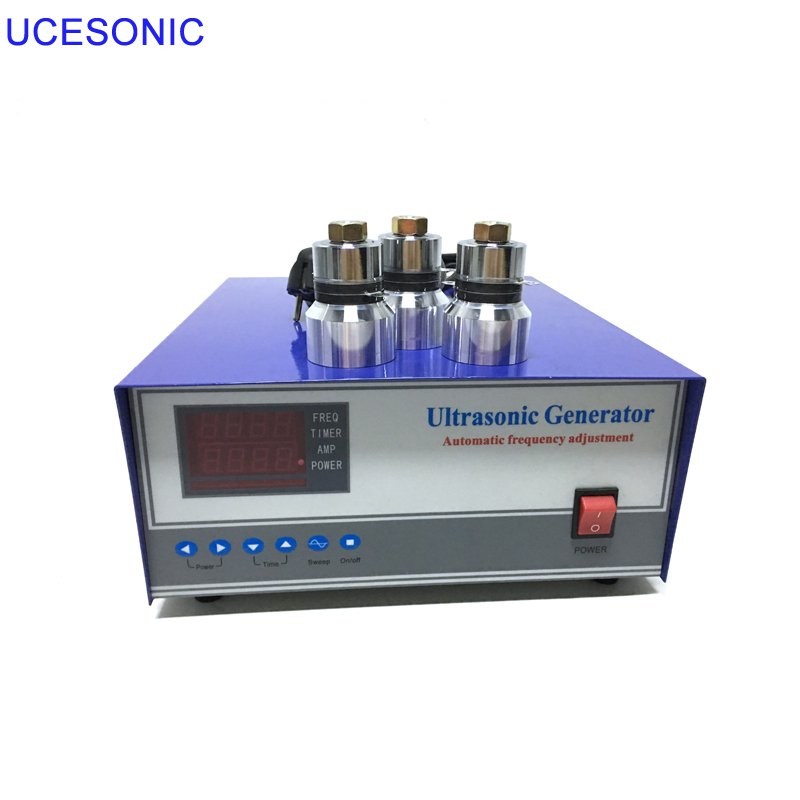

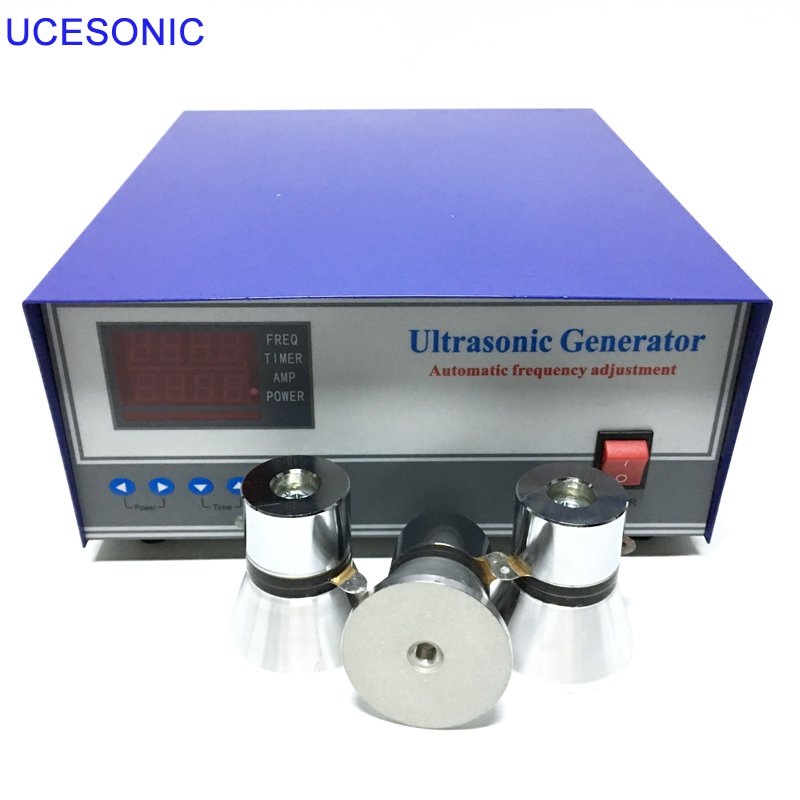

ultrasonic high power pulse generator 1000W/2000W/3000W
The circuit of the control box of the
ultrasonic generator adopts advanced technology such as the excitation circuit controlled by a microcomputer, the automatic frequency tracking and the sweeping mode. Compared with the traditional control box, it has stable and reliable operation, continuous adjustable ultrasonic power, and can maximize the potential of the transducer. Automatic frequency tracking makes output matching better, power stronger and efficiency higher. The unique sweeping mode makes the cleaning liquid form a fine reflux under the sweeping effect. The dirt stripped from the surface of the workpiece can be taken away in time to achieve a faster and more thorough cleaning effect, and the efficiency of ultrasonic cleaning is higher. At the same time, it has perfect protection function: overheat protection and overcurrent protection, which makes the work more reliable. A four-bit timer is also provided to make the time control accurate to seconds. With digital power adjustment, it can meet various cleaning requirements. Turn-on working state is changed at will, and it is more free to use. The whole machine adopts modular design, with the computer fault location and display system, making its use and maintenance more convenient. Structurally, anti-corrosion control panel and electrical insulation protection mode are adopted to enable it to work in harsh environment.
Leading technology
1. Digital control technology, perfect circuit design, stable power output.
2. Excellent frequency control technology, high output efficiency and stability. Even if the impedance changes due to the changes of liquid temperature, depth, type, cleaning material, negative pressure state and other loads, and even the voltage of the power supply changes, stable power can be supplied.
3. Automatic broadband scanning can choose different bandwidth to eliminate standing wave, improve the energy distribution of ultrasonic wave and eliminate the blind area of cleaning. It has special advanced functions such as frequency regulation and frequency compensation.
Safeguard
1. Over-current protection, over-heat protection, over-voltage protection, anti-corrosion and dust protection, etc.
2. High and low voltage circuit is completely separated, operation safety is guaranteed, and anti-interference ability is strong.
Easier operation and maintenance
1. LED and LCD display windows intuitively grasp the working status of the whole machine.
2. The output power can be adjusted, the cleaning time can be set arbitrarily, and the frequency can be adjusted to meet the needs of different products cleaning.
3. Generators with different frequencies, power and functions can be designed and manufactured according to customers'requirements. External remote control system can be used to operate the process flow through the network.
4. Set up time display control, power display adjustable, frequency adjustable and other functions.
5. Without professional personnel, it can be maintained by itself and operated simply. Jameson Company provides technical support for life.
Longer life
1. Efficient and unique cooling duct, anti-corrosion design, suitable for long-term work in humid and corrosive environment.
2. When the transducer is abnormal, the power output is abnormal, and the temperature is abnormal, the automatic shutdown protection will greatly prolong the service life.
3. Imported high-quality components from the United States and Japan are shock-resistant and stable in output.
|
Type
|
Power（W）
|
Frequency (KHz)
|
Transducer numbers
|
Size
|
|
AC110V60HZ+/-10% USA /LATIN AMERICA STANDARD ARE AVAILABLE
AC220V50HZ+/-10% EUROPE/ASIA/OCEANIA/AFRICA ARE AVAILABLE
All of machine are available for opening remote control function to connect with your own PLC system
|
|
UCE-NT300
|
300W
|
20khz,25khz,28khz,33khz,40khz
Frequency is adjustable
|
3-6
|
300x360x150
|
|
UCE-NT600
|
600W
|
20khz,25khz,28khz,33khz,40khz
Frequency is adjustable
|
6-12
|
300x360x150
|
|
UCE-NT900
|
900W
|
20khz,25khz,28khz,33khz,40khz
Frequency is adjustable
|
9-18
|
300x360x150
|
|
UCE-NT1000
|
1000W
|
20khz,25khz,28khz,33khz,40khz
Frequency is adjustable
|
10-20
|
300x360x150
|
|
UCE-NT1200
|
1200W
|
20khz,25khz,28khz,33khz,40khz
Frequency is adjustable
|
12-24
|
300x360x150
|
|
UCE-NT1500
|
1500W
|
20khz,25khz,28khz,33khz,40khz
Frequency is adjustable
|
15-30
|
300x360x150
|
|
UCE-NT1800
|
1800W
|
20khz,25khz,28khz,33khz,40khz
Frequency is adjustable
|
18-36
|
300x360x150
|
|
UCE-NT2000
|
2000W
|
20khz,25khz,28khz,33khz,40khz
Frequency is adjustable
|
20-40
|
300x360x150
|
|
UCE-NT2400
|
2400W
|
20khz,25khz,28khz,33khz,40khz
Frequency is adjustable
|
24-48
|
300x360x150
|
|
UCE-NT3000
|
3000W
|
20khz,25khz,28khz,33khz,40khz
Frequency is adjustable
|
50-60
|
300x360x150
|
|
High Frequency
|
300W-1200W
|
65-80khz
|
|
High Frequency
|
300W-1200W
|
120-135khz
|
