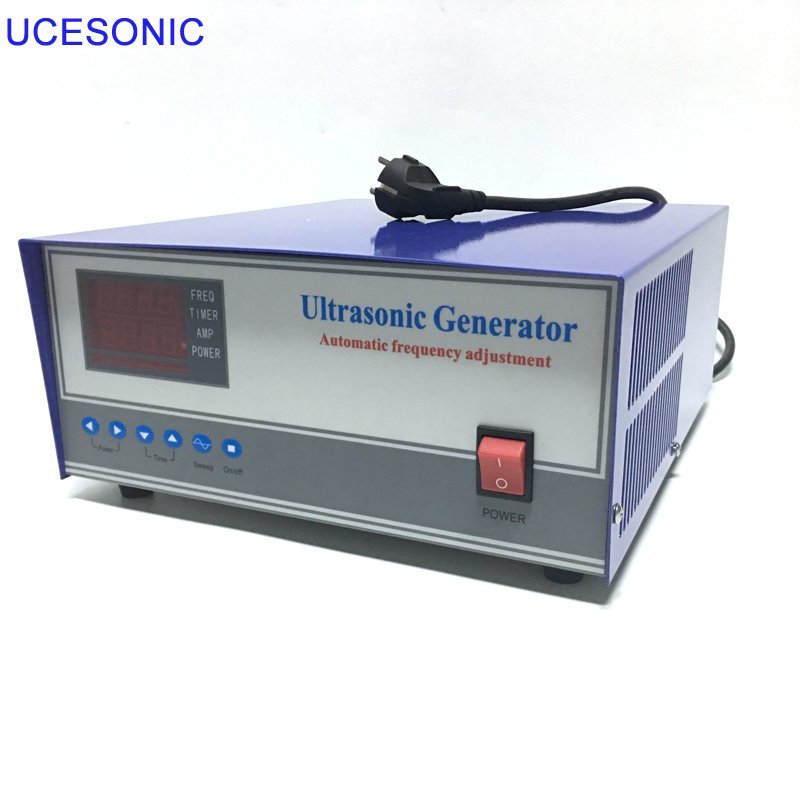

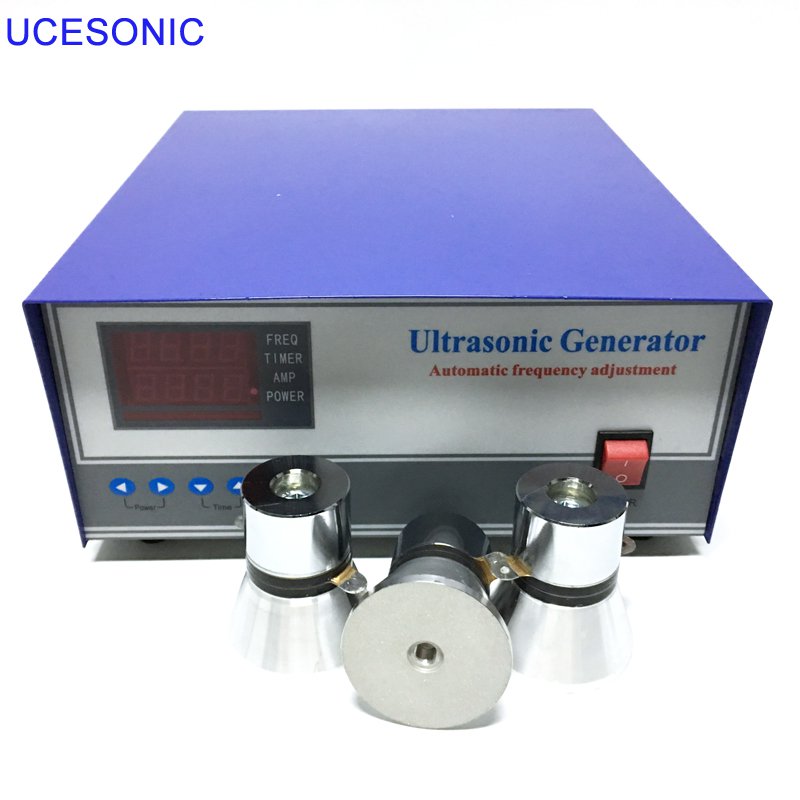

High Power Pulse Ultrasonic Cleaner Generator 1000W/2000W

2019-05-24 15:22 admin
High Power Pulse Ultrasonic Cleaner Generator 1000W/2000W
Ultrasound Generator House is a joint operation of the manufacturers of ultrasonic generators, specializing in sales: ultrasonic generators, digital ultrasonic generators, micro-ultrasonic generators, small ultrasonic generators, high-power ultrasonic generators, digital ultrasonic generators, ultrasonic power generators; used in plastic welding, welding, metal welding, screening, tin powder and other industries of ultrasonic power supply. Generator. Welcome to inquire

Shunting instructions:
1. Check whether the frequency displayed by the generator is consistent with the frequency of the transducer, such as 28KHZ, 40KHZ, etc.
2. Correctly connect the positive and negative poles of the load (Note: Usually the negative poles are connected with the groove body of the cleaning machine or the plate of the shock plate).
3. The ultrasonic generator is connected to 220V power supply correctly, and the power supply should be grounded reliably.
4. Multiple generators in a single slot are used at the same time. Please adjust 1A-3A according to the rated current of the power to keep the power fully open. The frequency of multiple generators should not deviate too much, for example, 28K+0.3K.
5. The current cannot be adjusted. Check whether the transducer is short-circuit, whether the connection line is correct, whether the frequency is corresponding, and whether the original parts of the generator are damaged.

Type

Power（W）

Frequency (KHz)

Transducer numbers

Size

AC110V60HZ+/-10%  USA /LATIN AMERICA STANDARD ARE AVAILABLE
AC220V50HZ+/-10% EUROPE/ASIA/OCEANIA/AFRICA ARE AVAILABLE
All of machine are available for opening remote control function to connect with your own PLC system

UCE-NT300

300W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

3-6

300x360x150

UCE-NT600

600W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

6-12

300x360x150

UCE-NT900

900W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

9-18

300x360x150

UCE-NT1000

1000W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

10-20

300x360x150

UCE-NT1200

1200W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

12-24

300x360x150

UCE-NT1500

1500W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

15-30

300x360x150

UCE-NT1800

1800W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

18-36

300x360x150

UCE-NT2000

2000W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

20-40

300x360x150

UCE-NT2400

2400W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

24-48

300x360x150

UCE-NT3000

3000W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

50-60

300x360x150

High Frequency

300W-1200W

65-80khz

High Frequency

300W-1200W

120-135khz
