ultrasonic module and power supply for cleaning

2019-05-21 10:31 admin
ultrasonic module and power supply for cleaning
Ultrasound power supply is usually called ultrasonic generator. Its function is to convert electric energy into high frequency AC signal matching with ultrasonic transducer. From the form of amplifier circuit, linear amplifier circuit and switching power supply circuit can be used, and high-power ultrasonic power supply generally adopts switching power supply circuit form in terms of conversion efficiency. Linear power supply also has its unique application scope. Its advantage is that it can not strictly require circuit matching, allowing continuous and rapid changes in operating frequency. From the current situation of the ultrasound industry, ultrasound is mainly divided into self-excitation and other excitation power supply.

The principle of ultrasonic power supply is to produce a specific frequency signal by signal generator, which can be sinusoidal signal or pulse signal. This specific frequency is the frequency of transducer. Ultrasound frequency used in ultrasonic equipment is 20KHz, 25KHz, 28KHz, 33KHz, 40KHz, 60KHz; 100KHz or more has not been widely used at present. But with the development of precision cleaning in the future. It is believed that the use will be gradually expanded.

Type

Power（W）

Frequency (KHz)

Transducer numbers

Size

AC110V60HZ+/-10%  USA /LATIN AMERICA STANDARD ARE AVAILABLE
AC220V50HZ+/-10% EUROPE/ASIA/OCEANIA/AFRICA ARE AVAILABLE
All of machine are available for opening remote control function to connect with your own PLC system

UCE-NT300

300W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

3-6

300x360x150

UCE-NT600

600W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

6-12

300x360x150

UCE-NT900

900W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

9-18

300x360x150

UCE-NT1000

1000W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

10-20

300x360x150

UCE-NT1200

1200W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

12-24

300x360x150

UCE-NT1500

1500W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

15-30

300x360x150

UCE-NT1800

1800W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

18-36

300x360x150

UCE-NT2000

2000W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

20-40

300x360x150

UCE-NT2400

2400W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

24-48

300x360x150

UCE-NT3000

3000W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

50-60

300x360x150

High Frequency

300W-1200W

65-80khz

High Frequency

300W-1200W

120-135khz

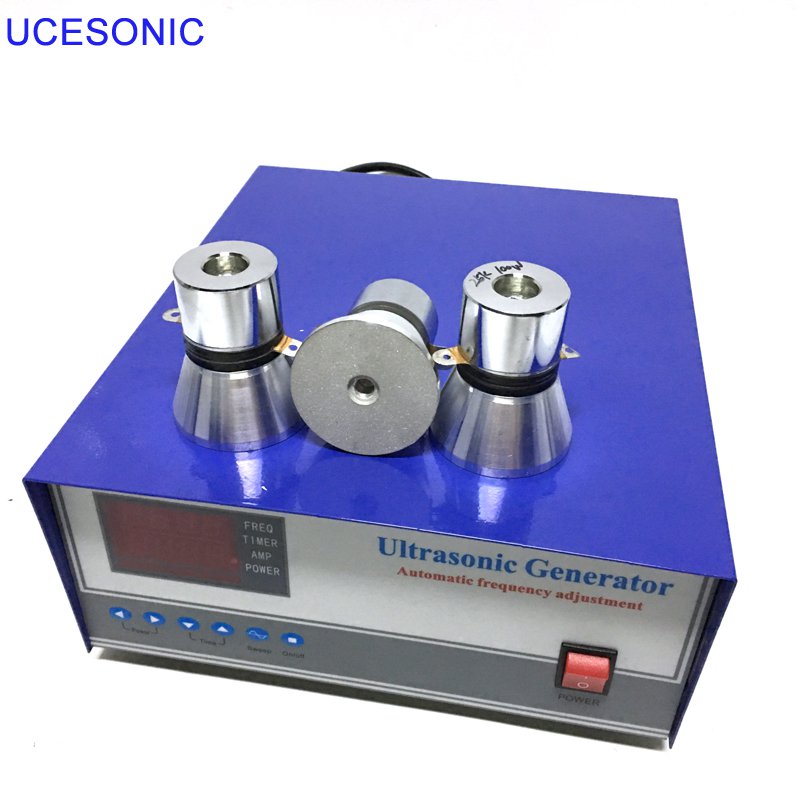

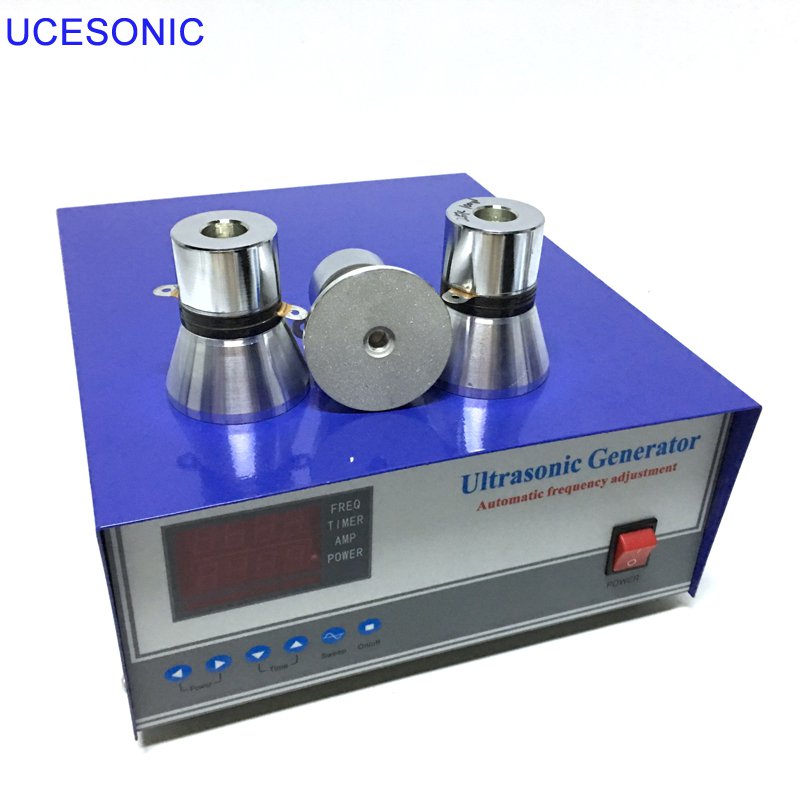

ultrasonic module and power supply for cleaningultrasonic module and power supply for cleaning

ultrasonic module and power supply for cleaning
