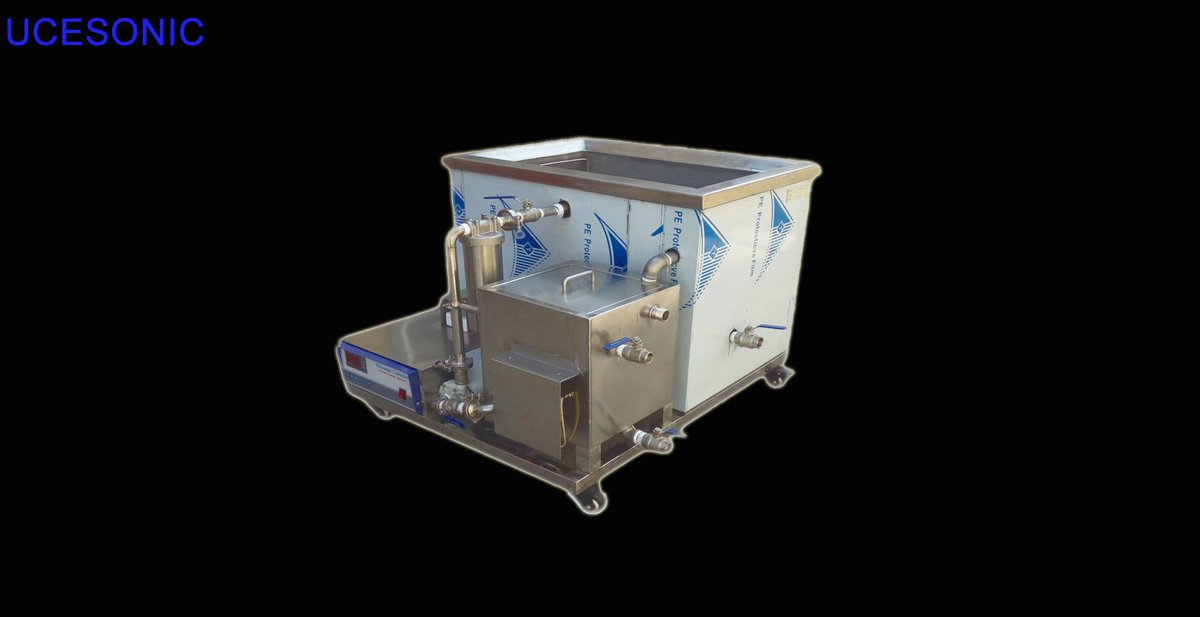

industrial ultrasonic parts cleaner with Circulating Filtration

Circulating filtering ultrasonic cleaner is a common ultrasonic cleaner on the market at present, which is used to clean the objects with high cleanliness requirements. Jiemeng circulating filtering ultrasonic cleaner has various kinds of single tank circulating filtering ultrasonic cleaner and double tank circulating filtering ultrasonic cleaner. In addition, it can also be customized according to the needs of customers!

Equipment structure description:

1. The cleaning tank is provided with a single side overflow structure. Through the overflow port, the floating material in the tank will flow into the liquid storage tank, which will be filtered and then pumped into the cleaning tank for use;

2. The tank body is made of multiple stainless steel plates

3. The bottom of the tank is provided with a drain port, which can discharge the liquid directly through the ball valve;

4. Stainless steel heating pipe is set in the tank body

5. The ultrasonic control box and cleaning tank are of split type

6. Mechanical temperature controller, temperature room temperature - 100 adjustable

7. The inner groove is thickened with stainless steel, beautiful and durable

8. South stainless steel centrifugal pump, durable and low failure rate

9. Circulating filter system, reducing the frequency of cleaning discharge and improving the utilization rate of cleaning agent

10. The size of the tank body is made at will according to the customer's requirements to meet various needs

11. Multiple or side vibration modes can be customized to meet the cleaning requirements。

Type	Internal size L*W*H (mm)	Frequency (Khz)	Power(W)	Heating(W)
UCE-XH1006ST	280×210×210	20,28,33,40,80,130	300	100
UCE-XH1012ST	400×310×280	20,28,33,40,80,130	600	300
UCE-XH1018ST	490×360×320	20,28,33,40,80,130	900	500
UCE-XH1024ST	630×430×320	20,28,33,40,80,130	1200	1000
UCE-XH1030ST	630×530×320	20,28,33,40,80,130	1500	1000
UCE-XH1036ST	680×530×360	20,28,33,40,80,130	1800	1000
UCE-XH1040ST	680×570×400	20,28,33,40,80,130	2000	1000
UCE-XH1041ST	730×570×450	20,28,33,40,80,130	2400	2000
UCE-XH1042ST	790×670×510	20,28,33,40,80,130	3000	2000
UCE-XH1043ST	850×770×570	20,28,33,40,80,130	4000	2000
UCE-XH1044ST	910×820×620	20,28,33,40,80,130	5000	3000
UCE-XH1045ST	960×870×680	20,28,33,40,80,130	8000	4000
UCE-XH1046ST	1100×930×730	20,28,33,40,80,130	10000	5000
