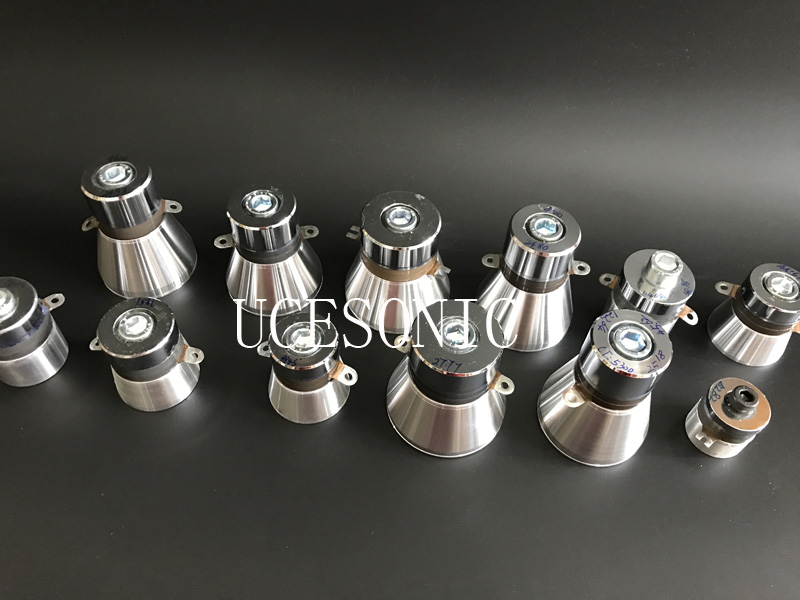

120khz ultrasonic cleaning transducer high power ultrasonic

The device that converts electrical energy and acoustic energy by piezoelectric effect is called ultrasonic transducer. The ultrasonic transducer provided by our company adopts self-produced high-quality piezoelectric ceramic components, which are carefully designed, processed and tested. The solid type produces stable ultrasonic waves even when the load changes. It has the characteristics of large amplitude, high electroacoustic conversion rate, low heat generation, high reliability and good consistency.





installation method:



 1. Preparation tools: argon arc welding, hex wrench No. 10, ferrochrome wire, 2.5 square high temperature wire 2*2.5 cable wire, ultrasonic vibrator special glue, (stripping pliers, casing, cable ties, sand blasting machine , pipe fittings, etc.).



2. Welding screws: Calculate the position of the vibrator (the edge of the screw is 50-60mm, the screw spacing is 80-100mm), keep the screw position clean and flat, spray sand at the welding position of the screw, and weld vertically with argon arc welding. Do not damage the screw teeth during the welding process. see picture 1)



Third, the glue configuration: squeeze A glue around the screw, apply B glue evenly on the horn surface of the vibrator, and then screw it to the end. (When screwing it, turn it back and forth a few times to make the glue more Good enough mix). Different glues are used differently. See (Figure 2)



4. Install the vibrating head: Slightly push the transducer to squeeze out the air and excess glue between the bottom and the bottom contact surface, so that the vibrator is more tightly integrated with the stainless steel as a whole.



5. Curing and condensation: It is placed in a place where the air is relatively dry, and it can be connected in 4-8 hours. After 24 hours, it can be powered on.



Note: 1. Metal nailing machine can also replace argon arc welding.



2, the welding screws must be fully welded, otherwise it will fall off easily.



3, on the curing, the length of time should consider the temperature, the temperature is low for a long time, the temperature is high, it is faster, it is recommended to operate at room temperature, even if heated, do not overheat, properly.

Type	Length（mm）	Weight（g）	Frequency（KHz）	Resonance Impedance （Ω）	Static Capacity （pF）±10%	Input Power（W）
UCE-UT-20100 PZT-8	94	900	20	10-20	5200	100
UCE-UT-25100 PZT-4	77	710	25	10-20	6600	100
UCE-UT-28120 PZT-4	66	720	28	10-20	7800	120
UCE-UT-28100 PZT-8	66	625	28	10-20	5200	100
UCE-UT-28100 PZT-4	66	624	28	10-20	6600	100
UCE-UT-30100 PZT-8	61	555	30	10-20	5200	100
UCE-UT-2560 PZT-4	77	530	25	10-20	5400	60
UCE-UT-2860 PZT-8	68	470	28	10-20	3800	60
UCE-UT-2850 PZT-4	82	425	28	10-20	4100	50
UCE-UT-3360 PZT-8	58	420	33	10-20	3800	60
UCE-UT-4060 PZT-8	55	300	40	10-20	3800	60
UCE-UT-4060 PZT-4	56	310	40	10-20	5400	60
UCE-UT-4050 PZT-4	54	260	40	10-20	4100	50
UCE-UT-4050-1 PZT-4	57	300	40	10-20	4100	50
UCE-UT-5435 PZT-4	36	135	54	10-20	3200	35
UCE-UT-6860 PZT-8	80	460	68	10-20	3800	60
UCE-UT-68120 PZT-4	67	588	68	10-20	7800	120
UCE-UT-8060 PZT-4	60	325	80	10-20	5400	60
UCE-UT-12060 PZT-4	56	260	120	10-20	5400	60
UCE-UT-13550 PZT-4	54	215	135	10-20	4200	50
