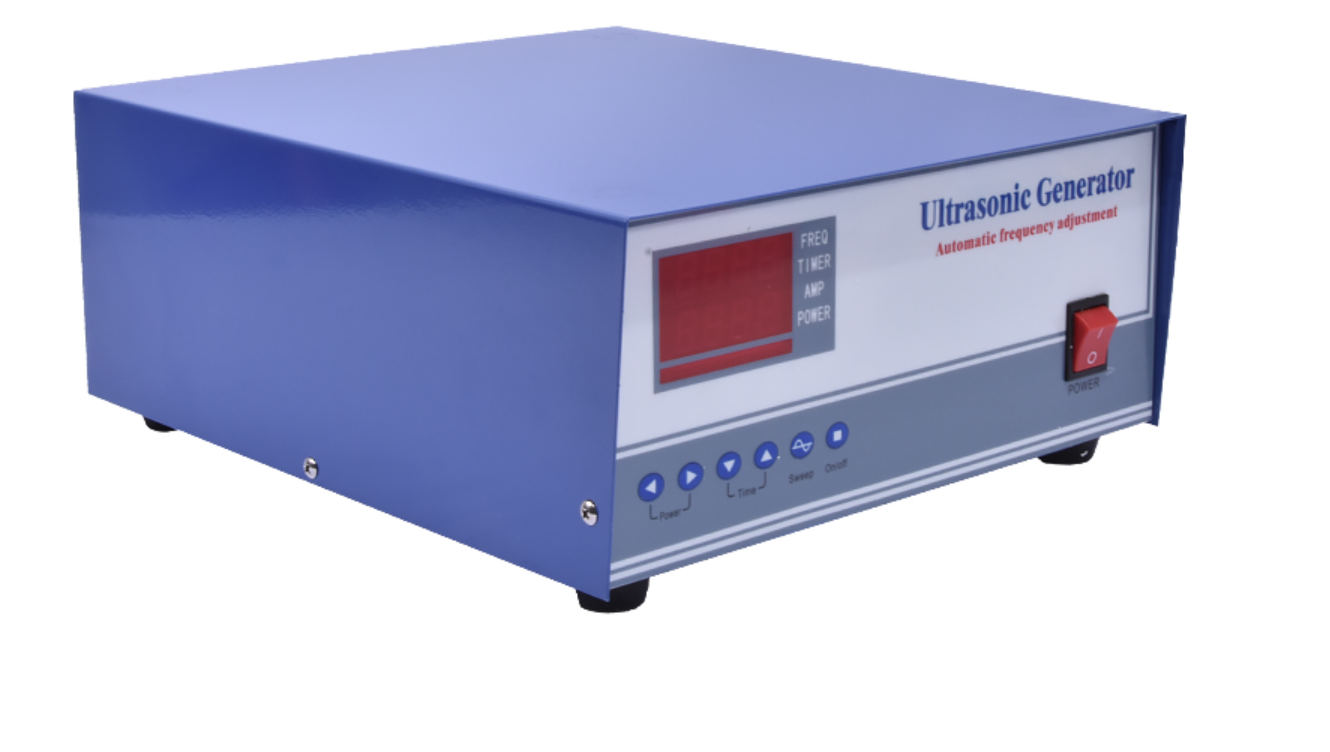

2000w ultrasonic generator 35khz

2018-09-25 15:16 admin
The main functions of the ultrasonic generator are:
The output rate is adjustable: it can smoothly adjust the output power linearly, and can be adjusted from 20%~100%.
Sweep frequency: different sweep frequency can be set, and sweep frequency is 20%~100%
Alarm: overcurrent, overheating alarm, output under-power alarm, output open-circuit alarm, output frequency drift alarm, remote control when communication overtime alarm
Timing: ultrasonic generator can be set to work regularly, timing range (1S~9999S)
Temperature control (optional): collect the temperature of the ultrasonic tank, control the heater through relay, maintain the temperature of the tank within the set temperature range of (+2%).
Remote control: RS485 interface, remote control panel, to achieve power, timing, temperature and other remote settings, fault display, switch control;
Energy control: control the constant power output of ultrasonic transducer.
The frequency, power and corresponding state can be displayed at work.
Multi lingual interface, communication function and interface with PC.
He is a circuit board.
The ultrasonic output power is continuously stepless and adjustable, with a range of 10~100%.
The ten bit LED light emitting row is displayed step by step, which can directly grasp the size of ultrasonic output power.

Type

Power（W）

Frequency (KHz)

Transducer numbers

Size

AC110V60HZ+/-10%  USA /LATIN AMERICA STANDARD ARE AVAILABLE
AC220V50HZ+/-10% EUROPE/ASIA/OCEANIA/AFRICA ARE AVAILABLE
All of machine are available for opening remote control function to connect with your own PLC system

UCE-NT300

300W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

3-6

300x360x150

UCE-NT600

600W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

6-12

300x360x150

UCE-NT900

900W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

9-18

300x360x150

UCE-NT1000

1000W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

10-20

300x360x150

UCE-NT1200

1200W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

12-24

300x360x150

UCE-NT1500

1500W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

15-30

300x360x150

UCE-NT1800

1800W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

18-36

300x360x150

UCE-NT2000

2000W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

20-40

300x360x150

UCE-NT2400

2400W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

24-48

300x360x150

UCE-NT3000

3000W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

50-60

300x360x150

High Frequency

300W-1200W

65-80khz

High Frequency

300W-1200W

120-135khz

2000w ultrasonic generator 35khz

2000w ultrasonic generator 35khz
