50khz ultrasonic transducer for Piezoelectric Transducer

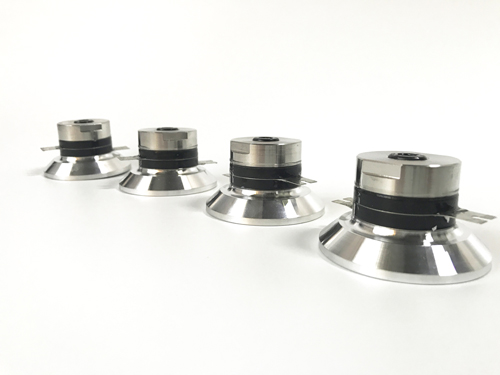

The ultrasonic transducer is divided into power, and the single ultrasonic vibration head is 60W and 100W. Frequencies are: 20KHZ, 25KHZ, 28KHZ, 40KHZ, 68KHZ, 80KHZ, 100KHZ, or higher; from the shape of the difference is: straight column, horn, etc.



Characteristics of ultrasonic transducers:

(1) high performance: high mechanical Q value, high conversion efficiency and excellent quality.

(2) ultrasonic oscillator has large amplitude and excellent performance.

(3) Ultrasonic oscillator, heat resistance: piezoelectric ceramic materials have good heat resistance, can expand the range of temperature, at the same time, high Q value, resonant impedance is small, calorific value is small;

(4) ultrasonic vibrator: the appearance of the product is neat, no rust, no obvious dents and scratches.

2, the principle of ultrasonic oscillator arrangement:

(1) Cleaning different product layout has different requirements, such as the degree of oil pollution, cleaning difficulty, cleaning requirements, cleaning process design, all require targeted selection.

(2) the more the oscillator is arranged, the better the density is.

Type	Length（mm）	Weight（g）	Frequency（KHz）	Resonance Impedance （Ω）	Static Capacity （pF）±10%	Input Power（W）
UCE-UT-20100 PZT-8	94	900	20	10-20	5200	100
UCE-UT-25100 PZT-4	77	710	25	10-20	6600	100
UCE-UT-28120 PZT-4	66	720	28	10-20	7800	120
UCE-UT-28100 PZT-8	66	625	28	10-20	5200	100
UCE-UT-28100 PZT-4	66	624	28	10-20	6600	100
UCE-UT-30100 PZT-8	61	555	30	10-20	5200	100
UCE-UT-2560 PZT-4	77	530	25	10-20	5400	60
UCE-UT-2860 PZT-8	68	470	28	10-20	3800	60
UCE-UT-2850 PZT-4	82	425	28	10-20	4100	50
UCE-UT-3360 PZT-8	58	420	33	10-20	3800	60
UCE-UT-4060 PZT-8	55	300	40	10-20	3800	60
UCE-UT-4060 PZT-4	56	310	40	10-20	5400	60
UCE-UT-4050 PZT-4	54	260	40	10-20	4100	50
UCE-UT-4050-1 PZT-4	57	300	40	10-20	4100	50
UCE-UT-5435 PZT-4	36	135	54	10-20	3200	35
UCE-UT-6860 PZT-8	80	460	68	10-20	3800	60
UCE-UT-68120 PZT-4	67	588	68	10-20	7800	120
UCE-UT-8060 PZT-4	60	325	80	10-20	5400	60
UCE-UT-12060 PZT-4	56	260	120	10-20	5400	60
UCE-UT-13550 PZT-4	54	215	135	10-20	4200	50
