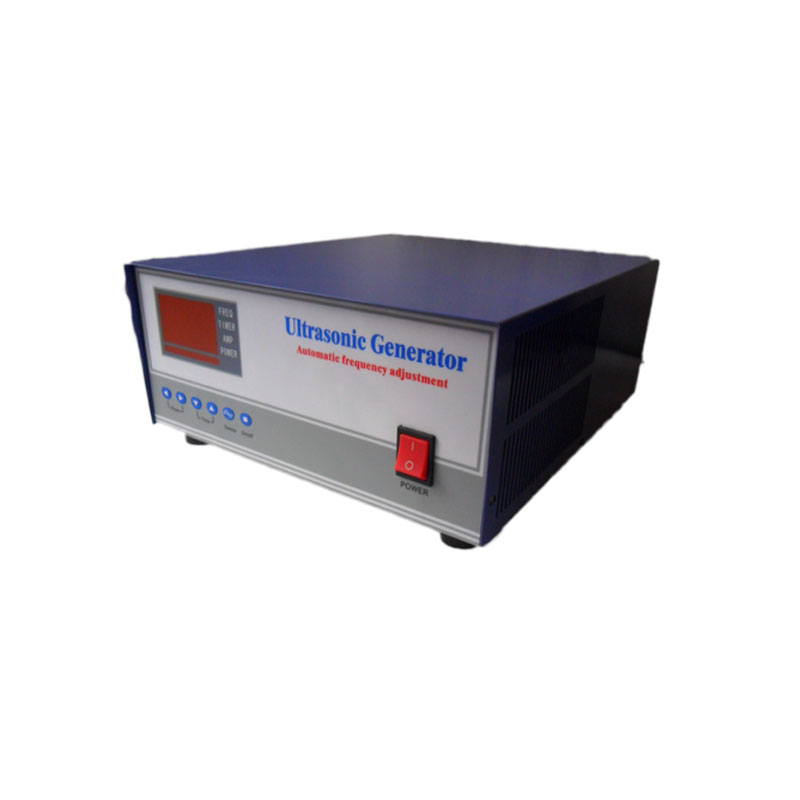

adjustable power ultrasonic cleaning generator

The control box adopts advanced technology such as its excitation circuit controlled by microcomputer, frequency automatic tracking and frequency sweeping mode. Compared with the traditional control box, it has stable and reliable operation, continuous adjustable ultrasonic power, and can maximize the potential of the transducer. Automatic tracking of working frequency makes output matching better, power more powerful and more efficient. The unique sweeping mode makes the cleaning fluid form a small reflux under the sweeping effect, and takes the dirt from the ultrasonic stripping off the surface of the workpiece in time, so as to achieve faster and more effective cleaning, and the ultrasonic cleaning efficiency is higher. At the same time, it has perfect protection function: overheating protection and over current protection, and the work is more reliable.



Working voltage: 220V 10% rated power 600W 900W 1200W 1500W 1800W 2400W 2700W working current 2.5A 3.5A



4.5A 5A Working Current: Please note that the equipment cannot operate at ambient temperature of 0-40C relative humidity over a long period of time when the rated current is greater than:



Mechanical Ultrasonic Generator | Large Function Ultrasonic Generator / Digital Display Ultrasonic Generator The ultrasonic generator produces a higher than 28KHZ audio signal from the ultrasonic generator, converts the mechanical oscillation of the same frequency through the piezoelectric inverse effect of the transducer, and radiates in the cleaning solution in the form of ultrasonic longitudinal wave. Because of the alternation of positive pressure and negative pressure of ultrasonic P-wave propagation, numerous micro-bubbles of over 1000 atmospheric pressure are produced and exploded at any time, forming a fine local high-pressure bombardment on the surface of the cleaning material, which makes the dirt on the surface of the object and in the cracks peel off rapidly. This is the "cavitation effect" peculiar to ultrasonic cleaning.
