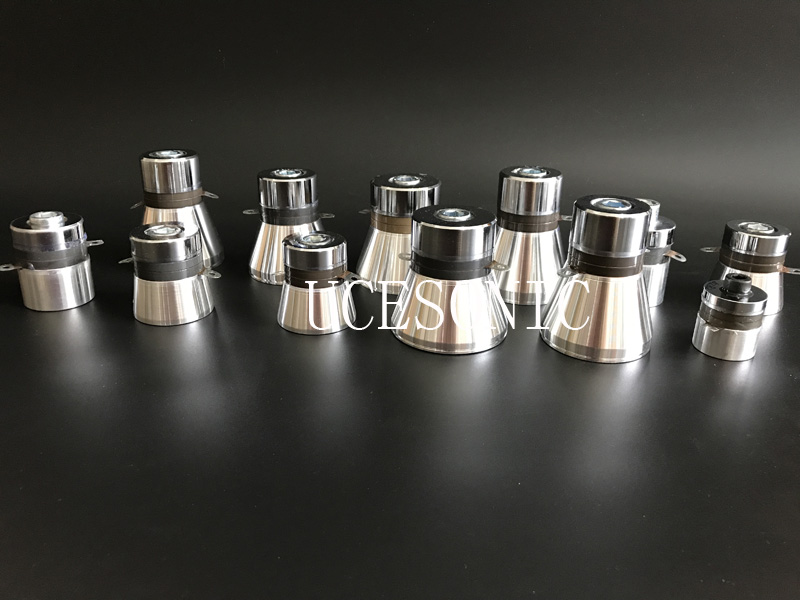

ctgclean ultrasonic cleaning transducer 28khz/40khz for cleaning

Transducer is a kind of energy converter. Its performance description and evaluation need many parameters. The characteristic parameters of transducer include resonance frequency, frequency bandwidth, electromechanical coupling coefficient, electroacoustic efficiency, mechanical quality factor, impedance characteristic, frequency characteristic, directivity, emission and reception sensitivity, etc. Performance parameters are different, for example, transducers with large output power and high energy conversion efficiency are required for transmitting transducers, while for receiving transducers, wide frequency band and high sensitivity and resolution are required. Reasonable design of the parameters. Installation and installation of transducers

1. Preparatory tools: Argon arc welding, No. 10 hexagonal wrench, ferrochrome wire, 2.5 square high temperature wire, 2*2.5 cable, vibrator glue, (stripping pliers, bushing, strapping, sand blasting machine, pipe fittings, etc.).

2. Welding screw: Calculate the position of oscillator, keep the screw position clean and flatness, sandblasting in the screw welding position, using argon arc welding vertical welding screw, welding process do not damage the thread teeth.

3. Glue configuration: squeeze A glue around the screw, apply B glue evenly on the horn surface of the oscillator, and then screw down the screw to the end. (When screwed to the end, it is best to screw back and forth a few turns, so that glue can be better and more fully mixed). The use of different glue is different.

4. Installation of vibrator head: slightly screw the transducer to extrude air and excess glue between the bottom and the bottom of the cylinder, so that the vibrator is tighter and stainless steel into a whole.

Fifth, solidification condensation: put the air in a relatively dry place solidification, 4-8 hours can be connected, 24 hours after power-on test machine.

Length（mm）	Weight（g）	Frequency（KHz）	Resonance Impedance （Ω）	Static Capacity （pF）±10%	Input Power（W）
UCE-UT-20100 PZT-8	94	900	20	10-20	5200	100
UCE-UT-25100 PZT-4	77	710	25	10-20	6600	100
UCE-UT-28120 PZT-4	66	720	28	10-20	7800	120
UCE-UT-28100 PZT-8	66	625	28	10-20	5200	100
UCE-UT-28100 PZT-4	66	624	28	10-20	6600	100
UCE-UT-30100 PZT-8	61	555	30	10-20	5200	100
UCE-UT-2560 PZT-4	77	530	25	10-20	5400	60
UCE-UT-2860 PZT-8	68	470	28	10-20	3800	60
UCE-UT-2850 PZT-4	82	425	28	10-20	4100	50
UCE-UT-3360 PZT-8	58	420	33	10-20	3800	60
UCE-UT-4060 PZT-8	55	300	40	10-20	3800	60
UCE-UT-4060 PZT-4	56	310	40	10-20	5400	60
UCE-UT-4050 PZT-4	54	260	40	10-20	4100	50
UCE-UT-4050-1 PZT-4	57	300	40	10-20	4100	50
UCE-UT-5435 PZT-4	36	135	54	10-20	3200	35
UCE-UT-6860 PZT-8	80	460	68	10-20	3800	60
UCE-UT-68120 PZT-4	67	588	68	10-20	7800	120
UCE-UT-8060 PZT-4	60	325	80	10-20	5400	60
UCE-UT-12060 PZT-4	56	260	120	10-20	5400	60
UCE-UT-13550 PZT-4	54	215	135	10-20	4200	50
