diy ultrasonic generator 38-44khz

2018-09-24 12:31 admin
First of all, the cleaning principle of ultrasonic, mainly "cavitation effect", it refers to the vibration frequency of ultrasonic waves above 20KHz, its compression and pressure reduction in an interactive way to high-frequency projection of liquid. Vacuum nucleus bubbles are produced in the liquid under pressure reducing action. When the vacuum nucleus bubbles are crushed under pressure, they produce strong impact force. The dirt on the surface of the cleaned clothes is peeled off so as to achieve the purpose of washing.

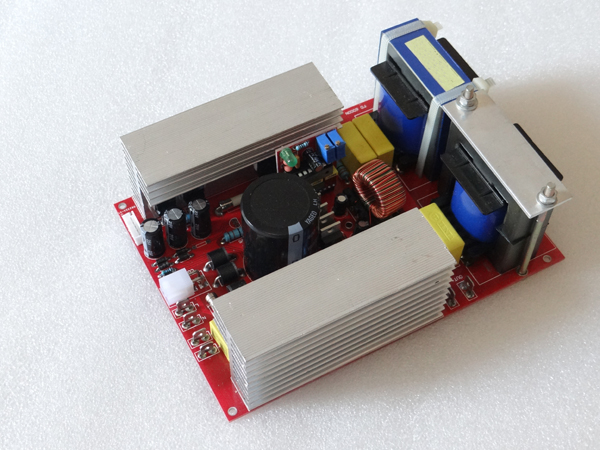

diy ultrasonic generator 38-44khz


Next is the requirement for frequency. Ultrasound refers to the vibration wave that is higher than the 20KHz of human hearing limit. In the case of relatively low frequency, the liquid is compressed and sparse by a longer time interval, easy to produce larger size of the true air bubble, enhance cavitation intensity, is conducive to cleaning effect; higher frequency spatiotemporal noise is smaller, cavitation generated by the vacuum bubble size is small, the penetration force is stronger. The specific frequency should be determined according to the actual effect. At present, the commonly used frequency of this kind of products is between 40KHz and 60KHz.

Type

Power（W）

Frequency (KHz)

Transducer numbers

Size

AC110V60HZ+/-10%  USA /LATIN AMERICA STANDARD ARE AVAILABLE
AC220V50HZ+/-10% EUROPE/ASIA/OCEANIA/AFRICA ARE AVAILABLE
All of machine are available for opening remote control function to connect with your own PLC system

UCE-NT300

300W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

3-6

300x360x150

UCE-NT600

600W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

6-12

300x360x150

UCE-NT900

900W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

9-18

300x360x150

UCE-NT1000

1000W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

10-20

300x360x150

UCE-NT1200

1200W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

12-24

300x360x150

UCE-NT1500

1500W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

15-30

300x360x150

UCE-NT1800

1800W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

18-36

300x360x150

UCE-NT2000

2000W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

20-40

300x360x150

UCE-NT2400

2400W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

24-48

300x360x150

UCE-NT3000

3000W

20khz,25khz,28khz,33khz,40khz
Frequency is adjustable

50-60

300x360x150

High Frequency

300W-1200W

65-80khz

High Frequency

300W-1200W

120-135khz

diy ultrasonic generator 38-44khz
