ultrasonic cleaning tanks suppliers/manufacturer

Ultrasonic cleaning is a process of converting mechanical energy from electric energy to mechanical energy by using high frequency power supply. In this process, the transducer transfers enormous energy to the solution of cleaning tank, generates positive pressure and negative pressure area in the liquid, forms tens of thousands of cavitation bubbles, explodes constantly, impacts the surface of the cleaned metal, and causes dirt on the metal surface. Rapid detachment.

The cleaning effect is good, the cleanliness is high and the cleanliness of all workpieces is consistent.

The cleaning speed is fast, the production efficiency is improved, and the cleaning solution is not required to be contacted manually.

The concealed place of deep holes, slits and workpieces can also be cleaned.

No damage to the workpiece surface, save solvent, heat energy, worksite and manpower.

Ultrasound cleaning is more complicated than conventional cleaning methods, especially the surface of the workpiece. For example, some mechanical parts with uneven surface and blind holes, some products with small surface and high cleanliness requirements, such as clocks and watches, parts of precision machinery, electronic components, circuit board components, etc. Ultrasonic cleaning can achieve very good results. The principle of ultrasonic cleaning is that the high-frequency oscillation signal emitted by ultrasonic generator is converted into high-frequency mechanical oscillation by transducer and transmitted to the medium-cleaning solvent. The same forward radiation of ultrasonic in the cleaning liquid is dense, which makes the liquid flow and produces tens of thousands of tiny bubbles.

Type	Internal size L*W*H (mm)	Outsize mm L*W*H (mm)	Frequency (Khz)	Power(W)	Heating(W)	Total power(W)	voltage
UCE-1006ST	280×210×210	320×250×350	20,28,33,40,80,130	300	1000	1300	220V
UCE-1012ST	400×310×280	520×430×600	20,28,33,40,80,130	600	3000	3600	220V
UCE-1018ST	490×360×320	610×480×675	20,28,33,40,80,130	900	3000	3900	220V
UCE-1024ST	630×430×320	740×550×675	20,28,33,40,80,130	1200	4000	5200	220V
UCE-1030ST	630×530×320	750×650×675	20,28,33,40,80,130	1500	4000	5500	220V
UCE-1036ST	680×530×360	800×650×700	20,28,33,40,80,130	1800	5000	6800	220V
UCE-1040ST	680×570×400	830×710×735	20,28,33,40,80,130	2000	5000	7000	220V
UCE-1041ST	730×570×450	880×710×735	20,28,33,40,80,130	2400	6000	8400	220V
UCE-1042ST	790×670×510	940×765×785	20,28,33,40,80,130	3000	6000	9000	380V
UCE-1043ST	850×770×570	990×820×785	20,28,33,40,80,130	4000	7000	11000	380V
UCE-1044ST	910×820×620	1050×880×840	20,28,33,40,80,130	5000	7000	12000	380V
UCE-1045ST	960×870×680	1100×940×920	20,28,33,40,80,130	8000	8000	16000	380V
UCE-1046ST	1100×930×730	1160×1000×980	20,28,33,40,80,130	10000	8000	18000	380V

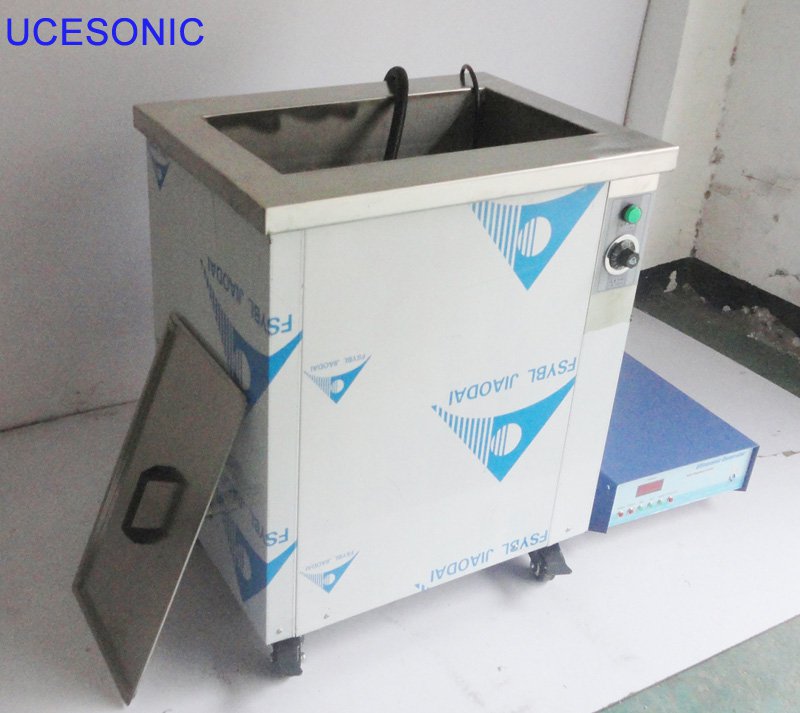

OEM Ultrasonic Cleaning Mchine（Size, Frequency,Power）-----UCE ultrasonic
