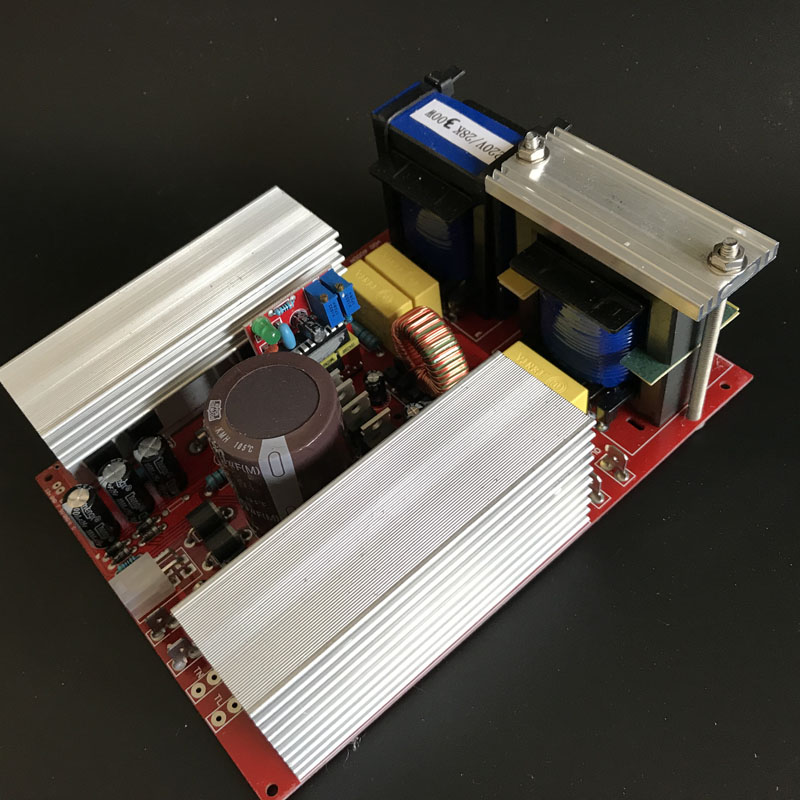

ultrasonic frequency generator circuit 28khz/40khz

First, performance characteristics:

1, debugging is simple: the generator realizes the "two steps in place".

2. Uniform ultrasonic: the most uniform ultrasonic output in domestic cleaning industry.

3. Ultrasonic density: high density ultrasonic output in domestic cleaning industry;

4, quality is stable: after ten years of testing, the ultrasonic circuit board has been upgraded in an all-round way.

5, service life: the longest service life ultrasonic generator.

Two, equipment characteristics:

1, with timing function, timer switch can be realized.

2. It has sweep frequency tracking function, sweep frequency cleaning and automatic tracking frequency.

3, digital display of ultrasonic frequency or output power is more specific and intuitive.

4, with overpressure, overcurrent, overheating protection function, prevent burning tube burning plate;

5, the effective power output is as high as 98%.

6, all the important components are imported electronic components.

7, the PLC control switch can be externally connected.

8. Ultrasonic power and frequency can be adjusted continuously.

9, touch button, humanized design;

10, constant power output stability technology, output power is constant, not affected by load, protect equipment.



300W/28k, 40K ultrasonic generator, suitable for driving 1-6 60W ultrasonic transducers, 600W for driving 6-12 60W ultrasonic transducers, 900W for driving 12-18 60W ultrasonic transducers, 1500W for driving 18-24 60W ultrasonic transducers, 1800W for driving 24-36 60W ultrasonic transducers, 3000w/28k ultrasonic generator, Suitable for carrying 40-50 60W ultrasonic transducers or 20-30 100W transducers.
