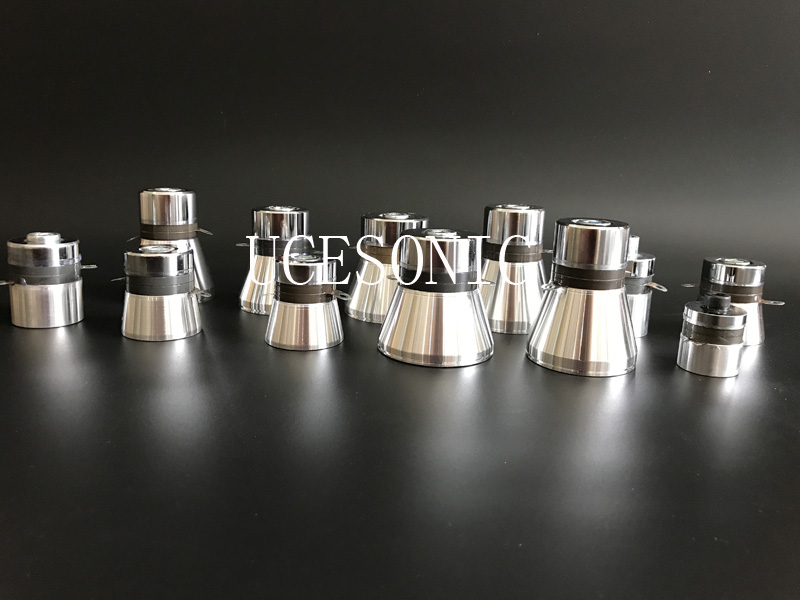

ultrasonic transducer 100w/40khz/28khz for cleaning transducer

The advantages of ultrasonic cleaning in practical application are as follows:



High-precision



Because ultrasonic energy can penetrate tiny gaps and small holes, it can be used to clean any parts or assemblies. When the cleaned parts are precision parts or assemblies, ultrasonic cleaning is often the only way to meet their special technical requirements.



fast



Ultrasonic cleaning is much faster than conventional cleaning method in dust removal and scale removal. The fittings can be cleaned without demolition. Ultrasonic cleaning can save labor and make it the most economical way of cleaning.



Agreement



Whether the cleaned parts are large or small, simple or complex, single or batch or in the automatic assembly line, the use of ultrasonic cleaning can achieve unparalleled uniform cleanliness by hand cleaning.

Type	Length（mm）	Weight（g）	Frequency（KHz）	Resonance Impedance （Ω）	Static Capacity （pF）±10%	Input Power（W）
UCE-UT-20100 PZT-8	94	900	20	10-20	5200	100
UCE-UT-25100 PZT-4	77	710	25	10-20	6600	100
UCE-UT-28120 PZT-4	66	720	28	10-20	7800	120
UCE-UT-28100 PZT-8	66	625	28	10-20	5200	100
UCE-UT-28100 PZT-4	66	624	28	10-20	6600	100
UCE-UT-30100 PZT-8	61	555	30	10-20	5200	100
UCE-UT-2560 PZT-4	77	530	25	10-20	5400	60
UCE-UT-2860 PZT-8	68	470	28	10-20	3800	60
UCE-UT-2850 PZT-4	82	425	28	10-20	4100	50
UCE-UT-3360 PZT-8	58	420	33	10-20	3800	60
UCE-UT-4060 PZT-8	55	300	40	10-20	3800	60
UCE-UT-4060 PZT-4	56	310	40	10-20	5400	60
UCE-UT-4050 PZT-4	54	260	40	10-20	4100	50
UCE-UT-4050-1 PZT-4	57	300	40	10-20	4100	50
UCE-UT-5435 PZT-4	36	135	54	10-20	3200	35
UCE-UT-6860 PZT-8	80	460	68	10-20	3800	60
UCE-UT-68120 PZT-4	67	588	68	10-20	7800	120
UCE-UT-8060 PZT-4	60	325	80	10-20	5400	60
UCE-UT-12060 PZT-4	56	260	120	10-20	5400	60
UCE-UT-13550 PZT-4	54	215	135	10-20	4200	50
