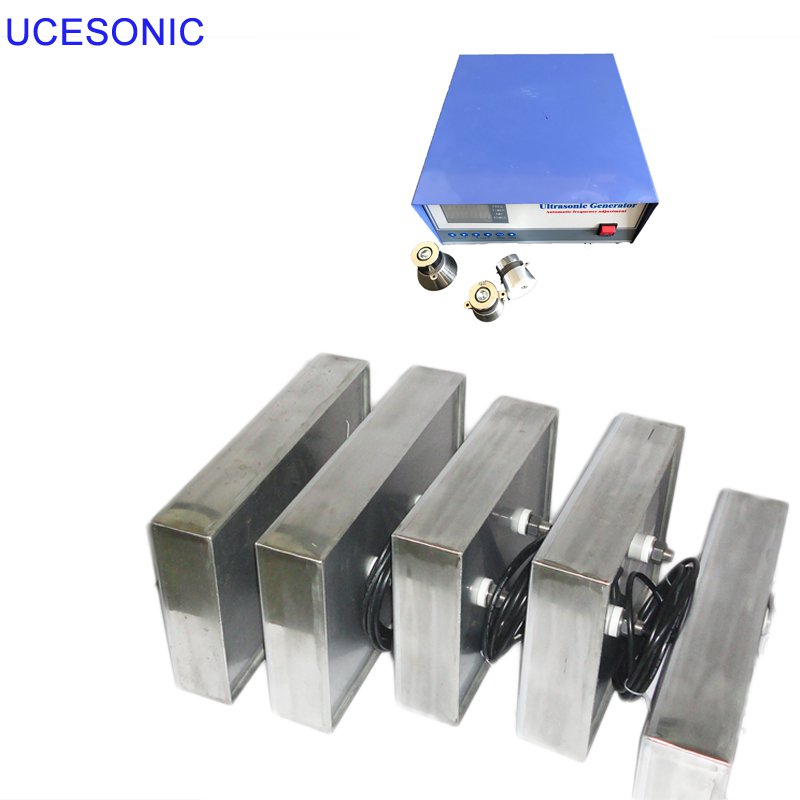

Submersible Ultrasonic Component Cleaning Machine 28khz
Product Profile:
When the ordinary trough cleaning machine is not suitable for some specific working occasions, the submerged ultrasonic vibration plate can be selected. Immersed vibration plate can be designed into different shapes and sizes according to customer requirements. It adopts ** stainless steel sealed welding, acid and alkali resistance, corrosion resistance, easy disassembly and assembly, and easy maintenance.
Some models of this series of products are designated special models for many well-known pharmaceutical machinery manufacturers. They have been put into use on the production lines of infusion, oral liquid, water needle, powder needle and syrup in nearly 1000 pharmaceutical factories nationwide, and are widely praised by users.
_In the extraction of traditional Chinese medicine, ultrasonic cyclic extraction technology has been widely used. Ultrasound extraction is to use the cavitation effect of ultrasound to increase solvent penetration, increase drug dissolution rate and dissolution times, thereby increasing the diffusion of substances, shortening the extraction time and accelerating the extraction process.
This series of products can be matched with various cleaning lines, or ultrasonic transformation of existing cleaning pools. It is widely used in automobile, machinery, electronics, wine making, food, chemical industry, pharmaceuticals, semiconductor manufacturing, magnetic materials, dies, electroplating, multi-arc ion plating, oil pump and oil nozzle and other industries. Example: For cleaning large rubber moulds such as tyres, triangular belts and synchronous belts, ultrasonic vibration box can be used to cooperate with large stainless steel heating washing.
Type |
Diamention(mm) |
Frequency (Khz) |
Power(W) |
Ultrasonic Transducer |
UCE-UITP300W |
300*190*100 |
25,28,33,40,80,130 |
300 |
6 |
UCE-UITP600W |
360*275*100 |
25,28,33,40,80,130 |
600 |
12 |
UCE-UITP1000W |
450*350*100 |
25,28,33,40,80,130 |
1000 |
20 |
UCE-UITP1200W |
470*380*100 |
25,28,33,40,80,130 |
1200 |
24 |
UCE-UITP1500W |
520*450*100 |
25,28,33,40,80,130 |
1500 |
30 |
UCE-UITP1800W |
560*450*100 |
25,28,33,40,80,130 |
1800 |
36 |
UCE-UITP2000W |
650*450*100 |
25,28,33,40,80,130 |
2000 |
40 |
UCE-UITP2400W |
740*520*100 |
25,28,33,40,80,130 |
2400 |
48 |
UCE-UITP3000W |
820*540*100 |
25,28,33,40,80,130 |
3000 |
60 |
UCE-UITP5000W |
1200*590*100 |
25,28,33,40,80,130 |
5000 |
100 |
OEM Ultrasonic Immersible Transducer Pack(Size, Frequency,Power) |
