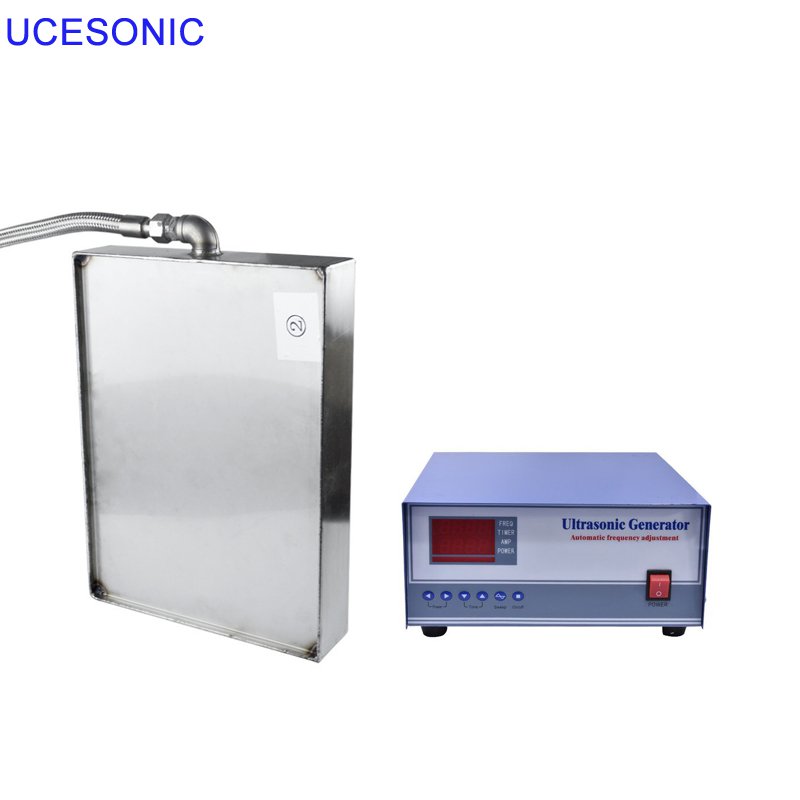

ultrasonic cleaning submersible transducer 1000W/2000W

ultrasonic cleaning submersible transducer 1000W/2000W
The working principle of the ultrasonic vibration box is that the ultrasonic generator generates supersonic electric energy higher than 20KHZ, converts it into mechanical vibration at the same frequency with the transducer and transmits it to the cleaning fluid. The ultrasonic wave conducts forward densely and generates numerous tiny bubbles, which form and grow in the negative pressure zone of the longitudinal propagation of the ultrasonic wave, and bursts rapidly in the positive pressure zone. The formation, growth and rapid rupture of such tiny bubbles are called "cavitation effects". In the cavitation effect, the instantaneous high pressure generated by the bursting of bubbles exceeds 1000 atmospheric pressure. The instantaneous high pressure generated continuously is like a series of small explosions bombarding the surface of the object, which makes the dirt on the surface of the object fall off quickly.

Type	Diamention(mm)	Frequency (Khz)	Power(W)	Ultrasonic Transducer
UCE-UITP300W	300*190*100	25,28,33,40,80,130	300	6
UCE-UITP600W	360*275*100	25,28,33,40,80,130	600	12
UCE-UITP1000W	450*350*100	25,28,33,40,80,130	1000	20
UCE-UITP1200W	470*380*100	25,28,33,40,80,130	1200	24
UCE-UITP1500W	520*450*100	25,28,33,40,80,130	1500	30
UCE-UITP1800W	560*450*100	25,28,33,40,80,130	1800	36
UCE-UITP2000W	650*450*100	25,28,33,40,80,130	2000	40
UCE-UITP2400W	740*520*100	25,28,33,40,80,130	2400	48
UCE-UITP3000W	820*540*100	25,28,33,40,80,130	3000	60
UCE-UITP5000W	1200*590*100	25,28,33,40,80,130	5000	100
OEM Ultrasonic Immersible Transducer Pack（Size, Frequency,Power）
