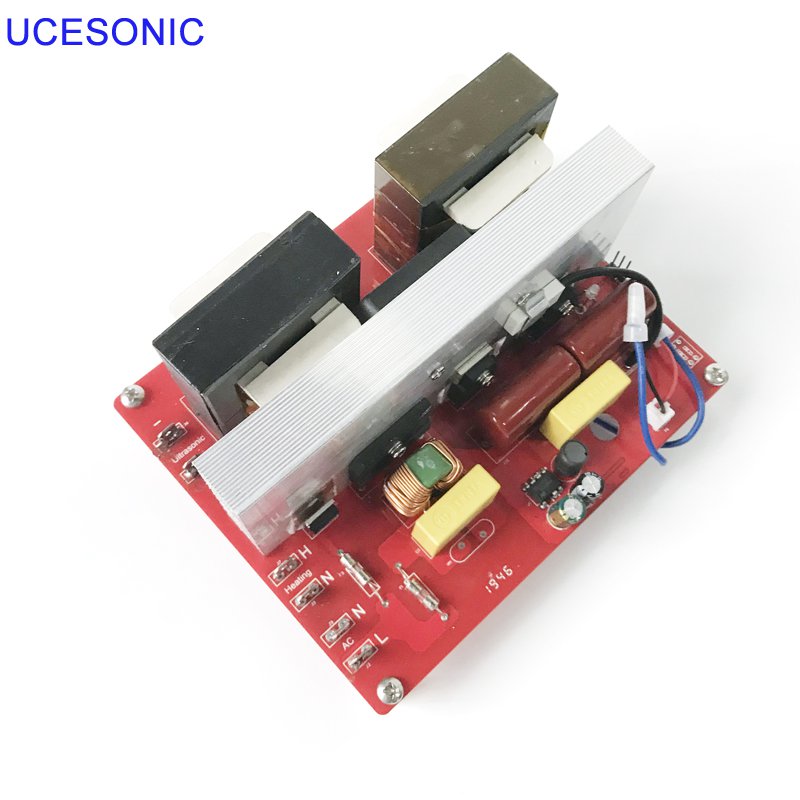

ultrasonic generator driver PCB circuit 28khz/40khz
Driving mode: Japanese Fuji IGBT (2mbi150va-060-50 600V) module driving; 150A super load, high voltage and current resistance; reliable performance; low failure rate; stable output.
Frequency range: 25kHz to 40KHz.
Power range: automatic frequency sweep function. In the allowable range of power, 10% - 100% stepless adjustable.
Power control: the SCR of Japan sanshe is used for power regulation, with stable performance.
Internal structure: unique anti-corrosion design, not affected by the working environment, suitable for various working sites.
Protection mode: vibration head short circuit protection, leakage protection and other functions. With advanced circuit, complete structure and sensitive and reliable integrated control system, the
ultrasonic cleaner can work stably under various loads. The generator has the advantages of small size, novel appearance, simple operation, comparable product quality and technical level with foreign similar products. Once it is launched, it has attracted the attention of peers and been welcomed by the majority of users. All kinds of ultrasonic generators can work independently, and can also be used in multiple groups in parallel to complete large-scale cleaning project. The maintenance is simple. A cooling fan is installed in the case to force cold air to ensure the safety of long-term work.
Type |
Power(W) |
Frequency (KHz) |
UCE-220V-PCB200W |
200 |
20khz,25khz,28khz,33khz,40khz
Frequency is adjustable
50khz,54khz,60khz,68khz,80khz,90khz
100khz,120khz,135khz,165khz,200khz |
UCE-220V-PCB300W |
300 |
20khz,25khz,28khz,33khz,40khz
Frequency is adjustable
50khz,54khz,60khz,68khz,80khz,90khz
100khz,120khz,135khz |
UCE-220V-PCB400W |
400 |
20khz,25khz,28khz,33khz,40khz
Frequency is adjustable |
UCE-220V-PCB500W |
500 |
20khz,25khz,28khz,33khz,40khz
Frequency is adjustable |
UCE-220V-PCB600W |
600 |
20khz,25khz,28khz,33khz,40khz
Frequency is adjustable |
ultrasonic generator driver PCB circuit 28khz/40khz
