ultrasonic cleaner transducer installation tank 28khz/40khz

2019-05-31 11:27 admin
ultrasonic cleaner transducer Installation Preparation tool:
Argon arc welding, No. 10 inner hexagonal wrench, chrome-iron-tin wire, 2.5 square high temperature wire, 2*2.5 cable line, oscillator glue, (stripping pliers, casing, tie-up, sand blasting machine, pipe fittings, etc.).
Welding screw: Calculate the arrangement position of oscillator, weld the screw in the cleaned position, then clean the screw around, make sure it is flat, so as not to affect the installation of oscillator.
Glue configuration: mix glue evenly according to the prescribed proportion. (Merry, Eroda, 4030 glue mixed before bonding, KMD398 glue mixed in the bonding process).
Installation head: Apply glue evenly to the bottom of the ultrasonic oscillator, gently twist to extrude the air and excess glue between the bottom of the transducer and the contact surface of the cylinder bottom, so that the oscillator is more closely integrated with stainless steel.
Curing condensation: Curing at relatively high room temperature, 4-8 hours wiring, 24 hours after the power test machine, test machine absolutely not allowed to be empty vibration.
Note appended
1. Metal seed nailing machine can also replace argon arc welding.
2. Welding screw must be fully welded, otherwise it is easy to fall off.
3. Regarding curing, the length of time should consider temperature. If the temperature is low for a long time and high for a faster time, it is suggested that the curing should be operated at room temperature. Even if heated, it should not be overheated.
Type Length(mm) Weight(g) Frequency(KHz) Resonance Impedance
(Ω)
Static Capacity
(pF)±10%
Input Power(W)
UCE-UT-20100
PZT-8

94

900

20

10-20

5200

100

UCE-UT-25100
PZT-4
77

710

25

10-20

6600

100

UCE-UT-28120
PZT-4
66

720

28

10-20

7800

120

UCE-UT-28100
PZT-8
66

625

28

10-20

5200

100

UCE-UT-28100
PZT-4
66

624

28

10-20

6600

100

UCE-UT-30100
PZT-8
61

555

30

10-20

5200

100

UCE-UT-2560
PZT-4
77

530

25

10-20

5400

60

UCE-UT-2860
PZT-8
68

470

28

10-20

3800

60

UCE-UT-2850
PZT-4
82

425

28

10-20

4100

50

UCE-UT-3360
PZT-8
58

420

33

10-20

3800

60

UCE-UT-4060
PZT-8
55

300

40

10-20

3800

60

UCE-UT-4060
PZT-4
56

310

40

10-20

5400

60

UCE-UT-4050
PZT-4
54

260

40

10-20

4100

50

UCE-UT-4050-1
PZT-4
57

300

40

10-20

4100

50

UCE-UT-5435
PZT-4
36

135

54

10-20

3200

35

UCE-UT-6860
PZT-8
80

460

68

10-20

3800

60

UCE-UT-68120
PZT-4
67

588

68

10-20

7800

120

UCE-UT-8060
PZT-4
60

325

80

10-20

5400

60

UCE-UT-12060
PZT-4
56

260

120

10-20

5400

60

UCE-UT-13550
PZT-4
54

215

135

10-20

4200

50

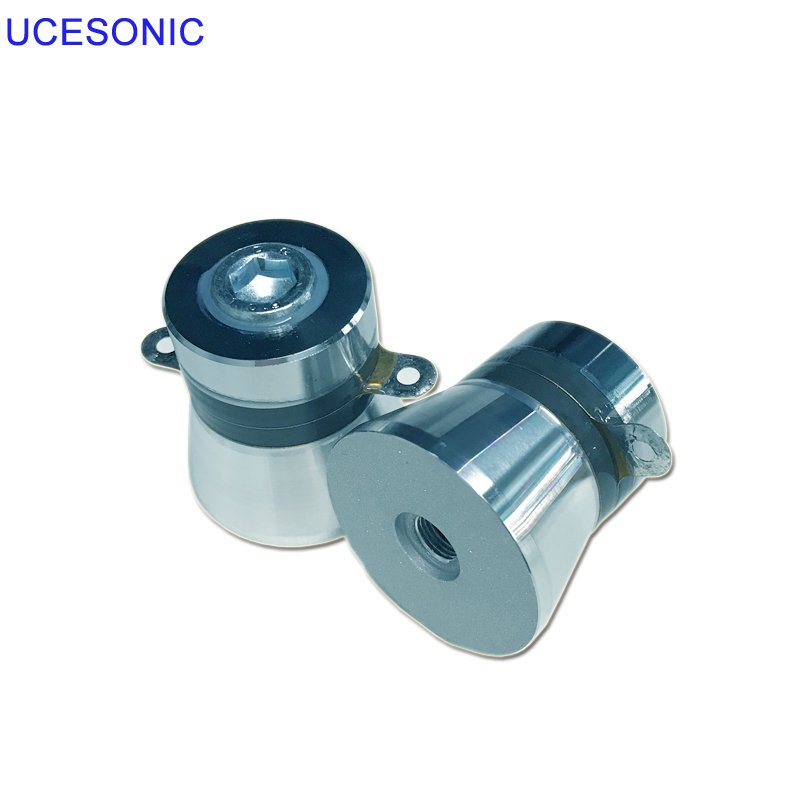

ultrasonic cleaner transducer installation tank 28khz/40khz
