Ultrasonic Astaxanthin Extraction for Higher Yield 20khz

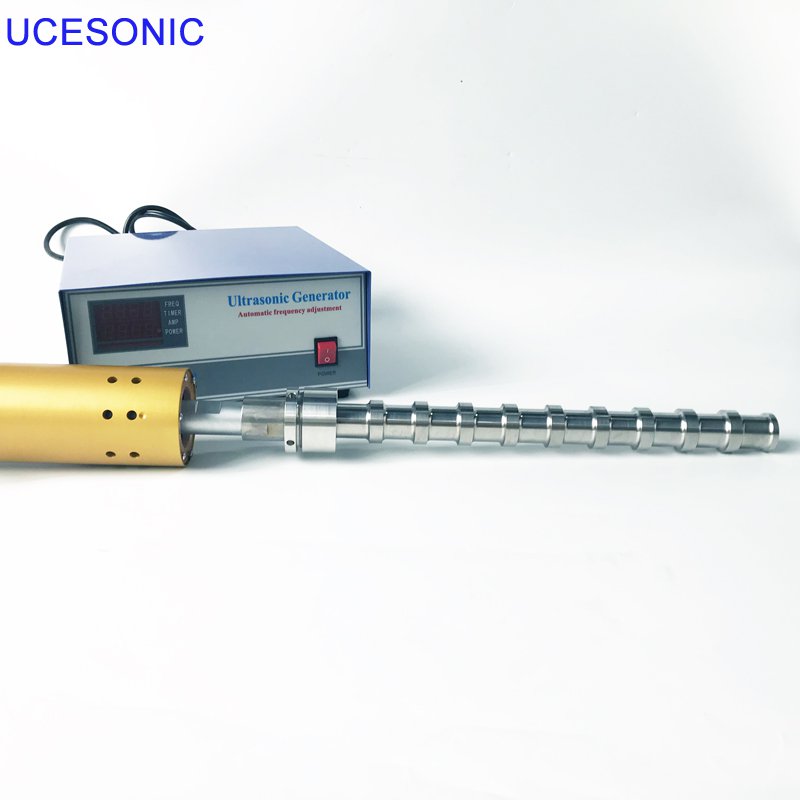

The ultrasonic vibration rod is mainly composed of an ultrasonic transducer, an ultrasonic horn, an ultrasonic tool head and an ultrasonic driving power supply. Compared with the traditional ultrasonic vibration plate, it has the characteristics of wider application scope and longer service life. In industrial applications, the use of ultrasonic vibration rods for dispersion, extraction, cleaning, chemical reaction, water treatment and so on is a very mature and widely used technology.



Main applications:

1. Dispersion and homogenization of material particles and emulsification of products. For example, the dispersion of nanomaterials and the homogeneity of polymers.

2. Extraction of traditional Chinese medicine, breakage of cells, bacteria and viral tissues. For example, extraction of intracellular contents.

3. Accelerate dissolution and chemical reaction. For example, table of technical parameters for chemical synthesis:

Technical parameters table:

1. Power/Signal Generator: Net Power Output; 1500 W Frequency: 20KHZ Net Weight: 8kg

2. Piezoelectric Frequency Converter: CV33, PZT Lead Zirconate Titanate Piezoelectric Ceramics

Diameter: 50mm Length: 130mm Weight: 1300g Cable Length: 500cm

3. Standard configuration probe: titanium alloy material

Head diameter: 50mm, total length: 244mm weight: 3000g

4. Power supply: 220V/50HZ
