ultrasonic herbal extraction equipment 20khz 1000W

2019-08-26 17:32 admin

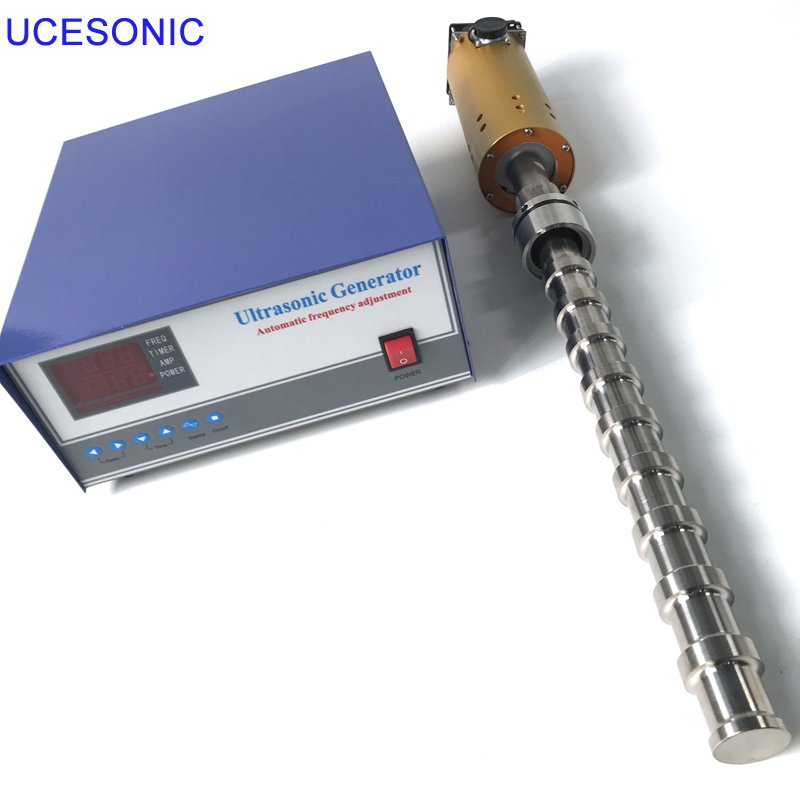

ultrasonic herbal extraction equipment 20khz 1000W
The efficiency of energy conversion is over 80%.
The ultrasonic system has stable amplitude and long working time. The radiation area of the ultrasonic system is 2.5 times larger than that of the traditional tool head.
With the use of ultrasonic numerical control power supply (currently limited to industrial-level acoustical chemical system), all-digital circuit control, anti-interference ability is strong.
Frequency and power can be monitored and controlled in real time. Power can be adjusted in different grades. It has the function of automatic alarm and protection. It is easy to operate.


1. Ultrasound vibration bar is suitable for cleaning workpieces in various industries, such as precise electronic parts, clock parts, optical glass parts, hardware and machinery parts, jewelry, semiconductor silicon, polyester filter core/spinneret, medical equipment, etc. and cleaning before and after electroplating.
2. Ultrasound vibration bar is suitable for traditional Chinese medicine extraction, cleaning of inner wall of thick-walled metal pipeline, on-line ultrasonic anti-scaling of boiler, ultrasonic cleaning in vacuum/pressure situation, all kinds of pipeline ultrasonic treatment and pipeline acoustic chemical treatment, etc.
3. Ultrasound vibrating rods are widely used in traditional ultrasonic cleaning, biochemistry, food, chemical, pharmaceutical and other industries.
4. In biochemistry, ultrasonic vibration rods have been widely used in emulsification, separation, homogenization, extraction, catalytic reaction and other aspects to improve productivity.
5. In the food industry, the use of ultrasonic vibration rods in uniform mixing plays an important role in homogeneity.
6. In the chemical industry, the ultrasonic vibration rod is suitable for cleaning pipelines, tanks and kettles. In the process of using waste oil and palm oil to extract biodiesel, the catalytic effect of ultrasound is astonishing, the efficiency is increased by more than ten times, and it will have broad prospects for development in the petrochemical industry.
Tubular Equipment
Type
Tubular Transducer
Type
Frequency
(KHz)
Ultrasound
Output(W)
Total Length
(mm)
Diameter
(mm)
Static Capacity
(pF±10%)
UCE-UE1

US-61

 15-28
1000

500

Φ50-55

68000

UCE-UE5

US-25

15-28

1500

850
Φ50-55

68000

UCE-UE6

US-16

15-28

2000

1100
Φ50-55

132000
ultrasonic herbal extraction equipment 20khz 1000W
ultrasonic herbal extraction equipment 20khz 1000W

ultrasonic herbal extraction equipment 20khz 1000W
