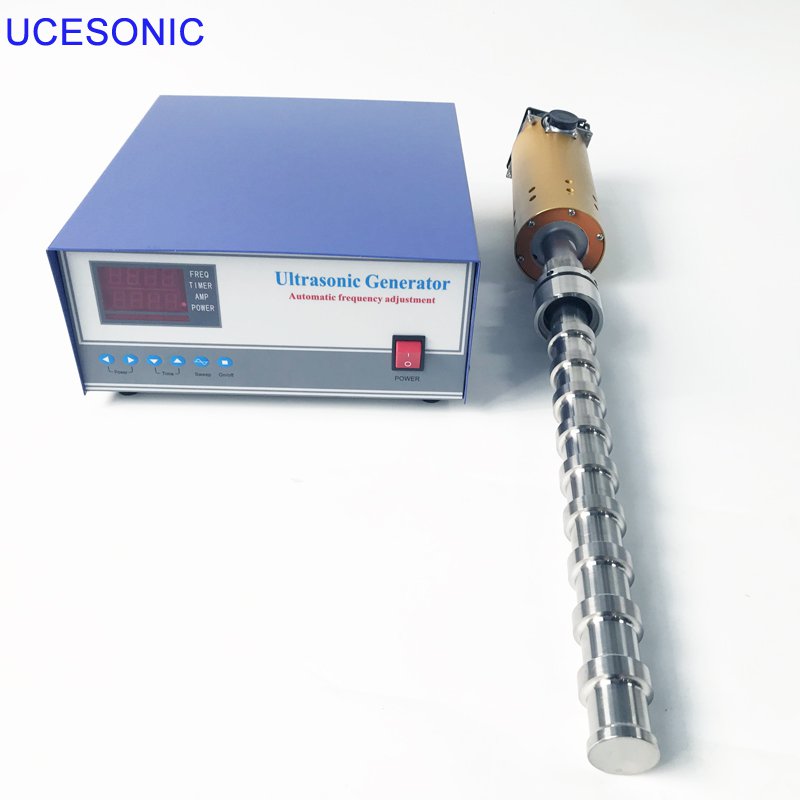

ultrasonic sonochemistry biodiesel reactor 20khz 2000Watt

Application of ultrasonic vibrator in accelerating chemical reaction

The front end of the emitter of the tool head of the ultrasonic vibrating rod is close to the outside wall of the kettle or extends into the kettle chamber of the kettle body. The ultrasonic transducer can send ultrasonic waves to the chemical reactants in the kettle chamber. The processed liquid can change the activity of the reaction system due to the cavitation of the ultrasonic wave, destroy the solvent structure of the chemical reactants in the kettle chamber, and produce the instantaneous enough to initiate the chemical reaction. At high temperature and high pressure, a local high energy center is formed, which promotes the smooth progress of chemical reaction. This is the main factor of catalytic chemical reaction using ultrasonic vibrating rod.

Tubular Equipment Type	Tubular Transducer Type	Frequency (KHz)	Ultrasound Output(W)	Total Length (mm)	Diameter (mm)	Static Capacity (pF±10%)
UCE-UE1	US-61	15-28	1000	500	Φ50-55	68000
UCE-UE5	US-25	15-28	1500	850	Φ50-55	68000
UCE-UE6	US-16	15-28	2000	1100	Φ50-55	132000
