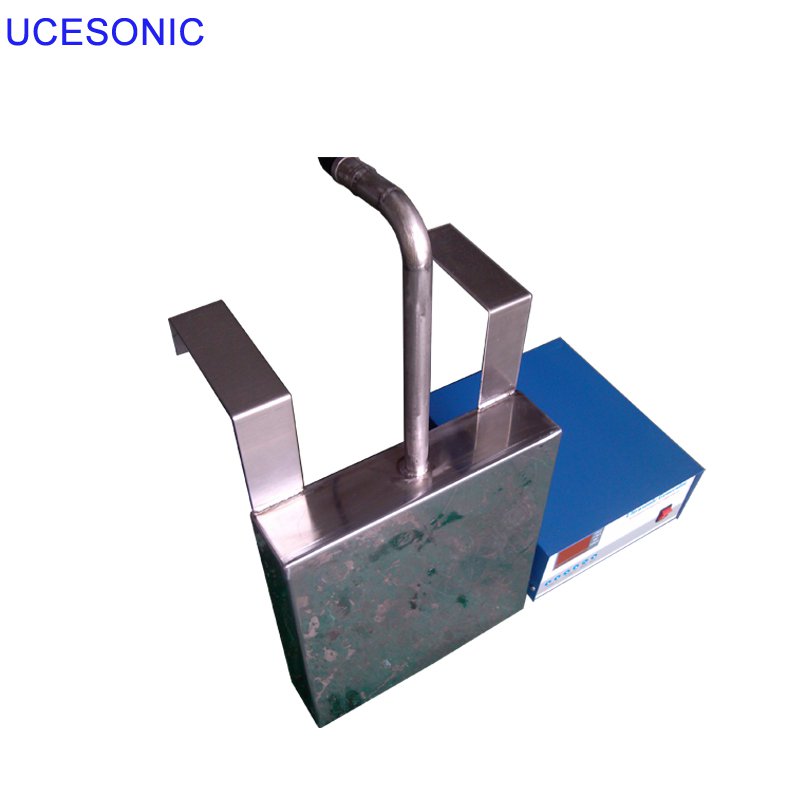

Immersible Ultrasonic Transducer for Industrial Cleaning

Material: SUS304/316T = 2.5mm



Ultrasound vibration plate size: size can be customized according to customer needs

Ultrasound generator adopts the current international leading structure of other-excitation oscillation circuit. Compared with the traditional self-excitation oscillation circuit structure, the output power of the ultrasonic generator is increased by more than 15%, which can maximize the potential of the transducer. Operating voltage AC220 + 10V. It has protective measures such as over-voltage, over-current and output short circuit. It has the functions of frequency fine-tuning and frequency automatic tracking, and can achieve the best results under different working conditions. Drive the cleaning fluid to form a fine reflux, so that the workpiece dirt can be quickly removed from the workpiece surface while being stripped by ultrasound, and improve the cleaning efficiency. With the function of stepless power regulation, the output power can be adjusted continuously from 10% to 100% to meet the requirements of various cleaning objects, and the ultrasonic power can be adjusted from 0% to 100%.



If there are other sizes or configuration requirements, please contact customer service!

Type	Diamention(mm)	Frequency (Khz)	Power(W)	Ultrasonic Transducer
UCE-UITP300W	300*190*100	25,28,33,40,80,130	300	6
UCE-UITP600W	360*275*100	25,28,33,40,80,130	600	12
UCE-UITP1000W	450*350*100	25,28,33,40,80,130	1000	20
UCE-UITP1200W	470*380*100	25,28,33,40,80,130	1200	24
UCE-UITP1500W	520*450*100	25,28,33,40,80,130	1500	30
UCE-UITP1800W	560*450*100	25,28,33,40,80,130	1800	36
UCE-UITP2000W	650*450*100	25,28,33,40,80,130	2000	40
UCE-UITP2400W	740*520*100	25,28,33,40,80,130	2400	48
UCE-UITP3000W	820*540*100	25,28,33,40,80,130	3000	60
UCE-UITP5000W	1200*590*100	25,28,33,40,80,130	5000	100
OEM Ultrasonic Immersible Transducer Pack（Size, Frequency,Power）
