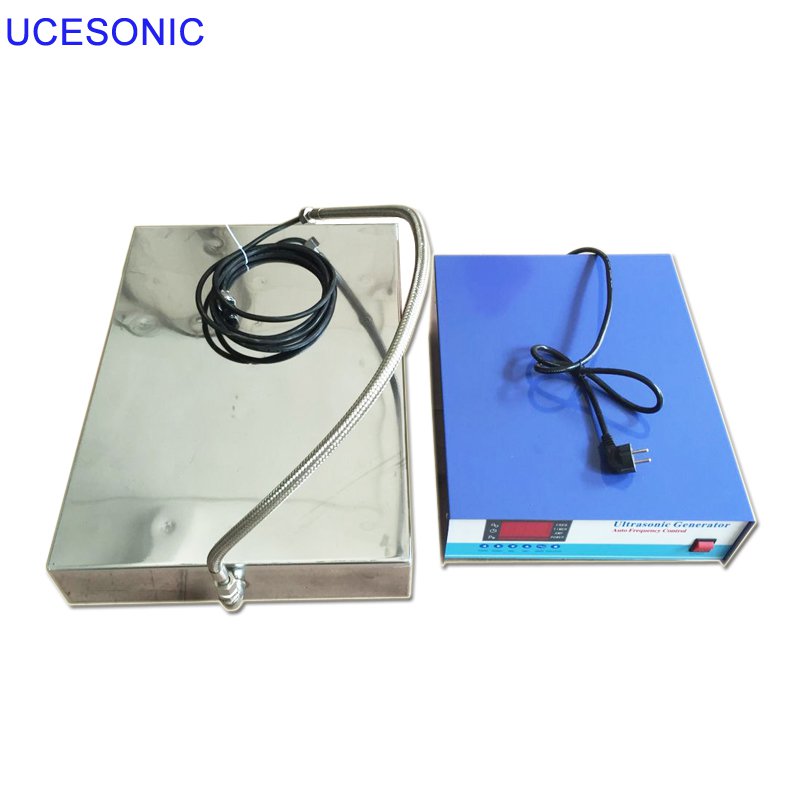

Ultrasonic Cleaner Machine Immersible type 28khz/40khz
The ultrasonic vibration plate made of special technology and material has the characteristics of high stability and long service life, as follows:
1. Transducers specially designed and manufactured have excellent performance and consistency. Hard chromium coating was plated on the surface of the vibration box. The efficiency of small signal electro-acoustic conversion can reach more than 96%.
2. The special imported glue and welding screw are used to fix the
ultrasonic transducer. The professional gluing process can avoid degumming. The advantages are low calorific value, low failure rate and smooth transmission of sound wave.
3. Excellent high temperature resistance enables the vibrating plate to work stably in boiling water at 100 C for a long time.
4. Increase the number of transducers, so that the actual working power of each transducer is 70-80% of the design rated value, prolong the working life of the transducer, and its average working life is more than 12,000 hours.
5. Ultrasound Generator: Using digital frequency synthesis technology controlled by micro-computer, the ultrasonic power can be continuously adjusted (digital display). It has perfect protection functions: overheating and overcurrent protection. It also has four-bit timer to make time control accurate to second. It also has frequency sweeping function.
6. Power supply: heating: 220V/50HZ
Type |
Diamention(mm) |
Frequency (Khz) |
Power(W) |
Ultrasonic Transducer |
UCE-UITP300W |
300*190*100 |
25,28,33,40,80,130 |
300 |
6 |
UCE-UITP600W |
360*275*100 |
25,28,33,40,80,130 |
600 |
12 |
UCE-UITP1000W |
450*350*100 |
25,28,33,40,80,130 |
1000 |
20 |
UCE-UITP1200W |
470*380*100 |
25,28,33,40,80,130 |
1200 |
24 |
UCE-UITP1500W |
520*450*100 |
25,28,33,40,80,130 |
1500 |
30 |
UCE-UITP1800W |
560*450*100 |
25,28,33,40,80,130 |
1800 |
36 |
UCE-UITP2000W |
650*450*100 |
25,28,33,40,80,130 |
2000 |
40 |
UCE-UITP2400W |
740*520*100 |
25,28,33,40,80,130 |
2400 |
48 |
UCE-UITP3000W |
820*540*100 |
25,28,33,40,80,130 |
3000 |
60 |
UCE-UITP5000W |
1200*590*100 |
25,28,33,40,80,130 |
5000 |
100 |
OEM Ultrasonic Immersible Transducer Pack(Size, Frequency,Power) |
