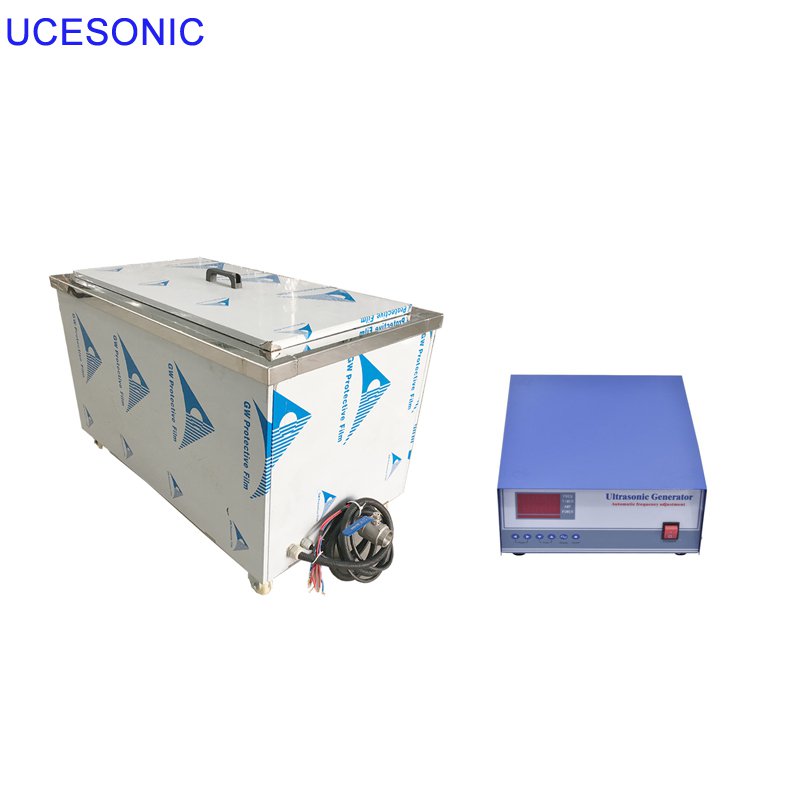

ultrasonic cleaner for greasy parts 25khz/28khz frequency
Product uses:
1. Industrial cleaning (decontamination, oil removal, rust removal, wax removal), no damage to products, automatic cleaning, penetrating cleaning (product structure is complex can also be easily cleaned), cleaning efficiency, good results!
Product characteristics:
1. The inner groove shock plate surface is made of SUS304 2.5mm high-quality stainless steel with acid, alkali and corrosion resistance. The outer shell is made of frosted stainless steel plate. The main frame is strengthened and strengthened with high-quality stainless steel square tubes. The load-bearing strength is not easy to deform. It is durable and beautiful in appearance.
2. Using Taiwan wafer high Q value vibrator and unique
ultrasonic generator, it can work continuously for 720 hours without shutting down, with stable frequency, good cleaning effect, high efficiency and long service life of transducer.
3. Using screw and imported adhesive to bond and install, to ensure that the shocks work for a long time at 100 C water temperature, durable;
4. Generator proprietary anti-corrosion technology, even in harsh acid and alkali (such as electroplating plant) working environment, always maintain strong output;
5. Adopt the latest excitation control circuit, soft start, anti-interference, frequency optional, power adjustable, can effectively save electricity, greatly increase the density of ultrasound, cleaner and more thorough;
6. Equipped with constant temperature automatic heating device, temperature control range: normal temperature - 100 C;
7. It can be customized according to size, number of transducers, frequency, power, multi-channel, rinsing, drying, spraying, throwing, lifting, rotation, suspension, etc.
Type |
Internal size
L*W*H (mm) |
Frequency (Khz) |
Power(W) |
Heating(W) |
UCE-1006ST |
280×210×210 |
20,28,33,40,80,130 |
300 |
1000 |
UCE-1012ST |
400×310×280 |
20,28,33,40,80,130 |
600 |
3000 |
UCE-1018ST |
490×360×320 |
20,28,33,40,80,130 |
900 |
3000 |
UCE-1024ST |
630×430×320 |
20,28,33,40,80,130 |
1200 |
4000 |
UCE-1030ST |
630×530×320 |
20,28,33,40,80,130 |
1500 |
4000 |
UCE-1036ST |
680×530×360 |
20,28,33,40,80,130 |
1800 |
5000 |
UCE-1040ST |
680×570×400 |
20,28,33,40,80,130 |
2000 |
5000 |
UCE-1041ST |
730×570×450 |
20,28,33,40,80,130 |
2400 |
6000 |
UCE-1042ST |
790×670×510 |
20,28,33,40,80,130 |
3000 |
6000 |
UCE-1043ST |
850×770×570 |
20,28,33,40,80,130 |
4000 |
7000 |
UCE-1044ST |
910×820×620 |
20,28,33,40,80,130 |
5000 |
7000 |
UCE-1045ST |
960×870×680 |
20,28,33,40,80,130 |
8000 |
8000 |
UCE-1046ST |
1100×930×730 |
20,28,33,40,80,130 |
10000 |
8000 |
