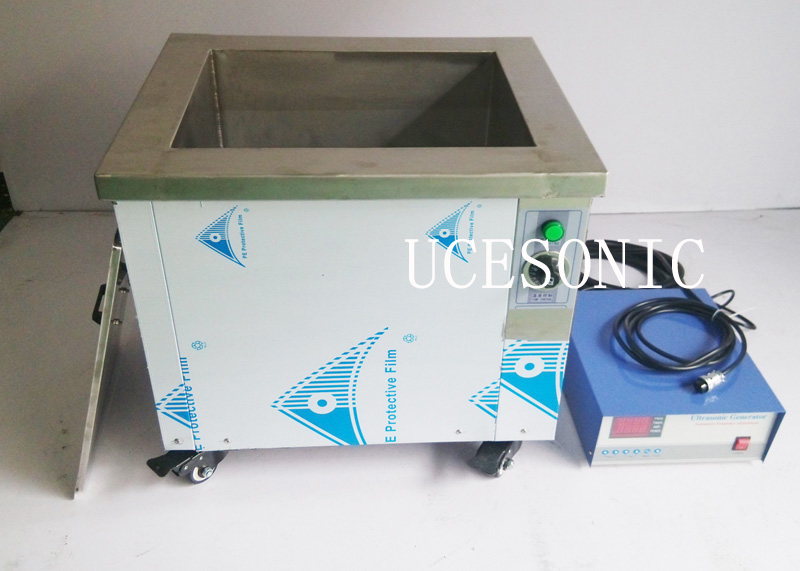

ultrasonic filter cleaning bath system 28khz/40khz

Ultrasonic cleaning equipment

Seven. Structural characteristics:

1. Equipped with advanced US imported ultrasonic generator, with ultrasonic frequency automatic tracking, power compensation, power adjustable, and with overload and under-voltage circuit protection device, power output is strong and stable.

2. High-performance American imported ultrasonic generator, using high-performance piezoelectric ceramic chip as the basic vibration source, has high ultrasonic energy conversion rate, fast ultrasonic frequency tracking, and large and lasting ultrasonic power output load.

3. The cleaning head of titanium alloy, the material of the working head is nondestructively inspected by ultrasonic testing, and the special frequency test and ultrasonic amplitude test are needed to ensure the long life of the working head and higher cleaning efficiency.

4. Corrosion-resistant 304 stainless steel plate is selected for the tank body of the equipment, and imported high-quality transverse motor is selected for the transmission mechanism of the worktable, which is safe, stable, correct and reliable.

5. In order to double protect the precious ultrasonic system, install ultrasonic dehydration protection device in the cleaning tank, select the excellent brand of German Schneider Electrical Appliance Company products.

6. In order to ensure the long-term good use of products and improve the cleanliness of cleaning, electrical components are used Omron Japan, Fuji Japan and other products.

Type	Internal size L*W*H (mm)	Frequency (Khz)	Power(W)	Heating(W)
UCE-1006ST	280×210×210	20,28,33,40,80,130	300	1000
UCE-1012ST	400×310×280	20,28,33,40,80,130	600	3000
UCE-1018ST	490×360×320	20,28,33,40,80,130	900	3000
UCE-1024ST	630×430×320	20,28,33,40,80,130	1200	4000
UCE-1030ST	630×530×320	20,28,33,40,80,130	1500	4000
UCE-1036ST	680×530×360	20,28,33,40,80,130	1800	5000
UCE-1040ST	680×570×400	20,28,33,40,80,130	2000	5000
UCE-1041ST	730×570×450	20,28,33,40,80,130	2400	6000
UCE-1042ST	790×670×510	20,28,33,40,80,130	3000	6000
UCE-1043ST	850×770×570	20,28,33,40,80,130	4000	7000
UCE-1044ST	910×820×620	20,28,33,40,80,130	5000	7000
UCE-1045ST	960×870×680	20,28,33,40,80,130	8000	8000
UCE-1046ST	1100×930×730	20,28,33,40,80,130	10000	8000
