30khz/35khz ultrasonic elliptical vibration cutting device

2020-01-24 00:46 admin
30khz/35khz ultrasonic elliptical vibration cutting device
The main function of ultrasonic cutting technology is to separate the connected parts. The pressure on the object to be cut can be reduced by high frequency vibration per second. In this way, a neat and clean cutting surface can be formed. In practical application, it can be divided into two processes: separate welding and cutting.
Separate welding
With ultrasonic wave, the thermoplastic multi-layer textiles, non-woven materials or films can be cut into any shape and welded along the cutting contour at the same time. The thermoplastic fibre content shall be at least 20%. The anvil with the corresponding cutting contour is cut by the vibration generated by the ultrasonic system. At the same time, the vibration attenuation makes the heat generated in the cutting area, so as to weld along the cutting edge.
cutting
The blade vibrated by ultrasonic wave can quickly and accurately separate the objects to be cut under small resistance, and no residue is generated. Ultrasonic has been used in the cutting of finished products for many years. When cutting baked food, energy bar, cheese, pizza and other materials, the vibration (cold) cutting welding head can reduce the resistance in the cutting process, and remove the adherent product residue. Result: a flat surface that can be cut again without distortion or thermal damage to the product.
Type power
(W)
Frequency Welding time Contains
UCE-QG100W 100W 30khz,35khz,40khz 0.1-3sec generator , transducer ,horn,head
UCE-QG300W 300W 30khz,35khz,40khz 0.1-3sec generator , transducer ,horn,head
UCE-QG500W 500W 30khz,35khz,40khz 0.1-3sec generator , transducer ,horn,head

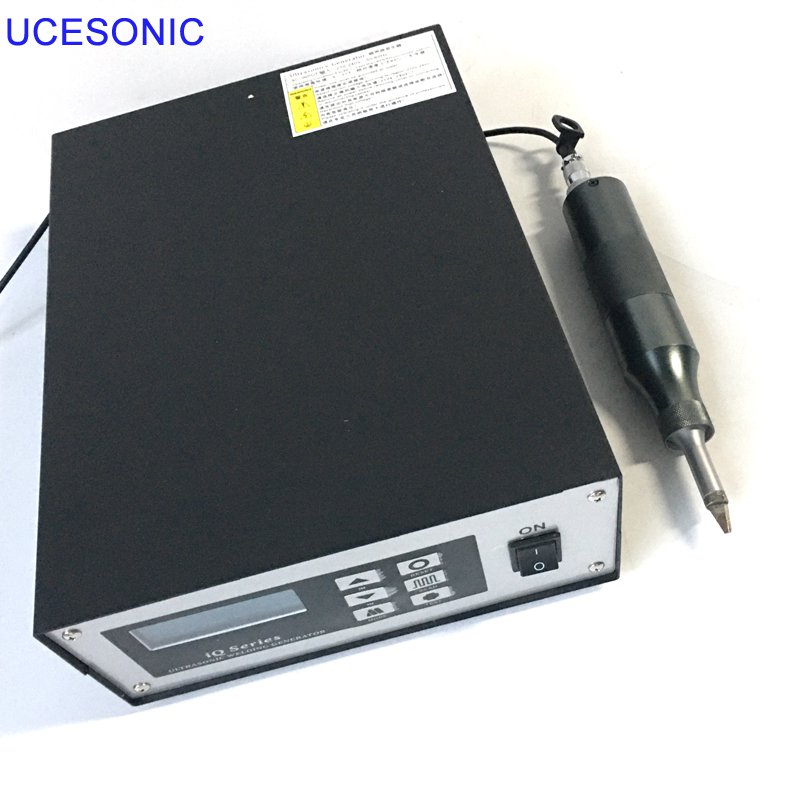

30khz/35khz ultrasonic elliptical vibration cutting device
30khz/35khz ultrasonic elliptical vibration cutting device

30khz/35khz ultrasonic elliptical vibration cutting device
