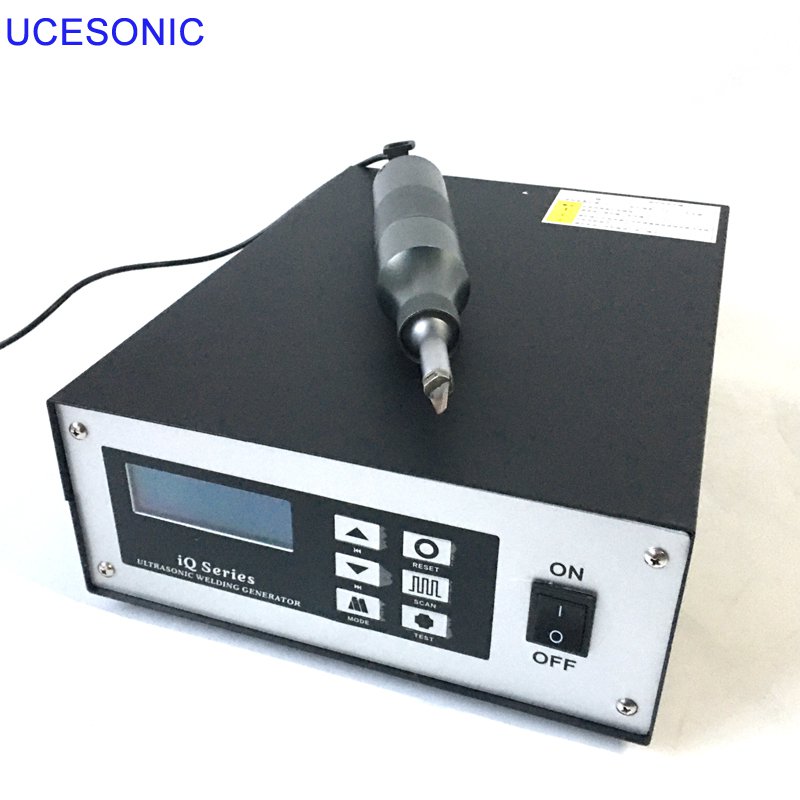

35khz/40khz Ultrasonic cutter for auto parts interior plastic

2020-01-24 00:37 admin
35khz/40khz Ultrasonic cutter for auto parts interior plastic
The basic structure of ultrasonic cutter is ultrasonic transducer, horn, tool head (cutter body), driving power. The ultrasonic driving power supply converts the power supply into high frequency and high voltage AC current, which is transmitted to the ultrasonic transducer. In fact, ultrasonic transducer is equivalent to an energy converter, which can convert the input electric energy into mechanical energy, that is, ultrasonic. Its expression is that the transducer moves back and forth in the longitudinal direction. The frequency of the stretching motion is equal to the frequency of the high frequency AC current supplied by the driving power supply. The function of the horn is to fix the whole ultrasonic vibration system and to adjust the output amplitude of the transducer. On the one hand, the tool head (cutter body) amplifies the amplitude and focuses the ultrasonic wave. On the other hand, the ultrasonic wave is output, and the ultrasonic energy is concentrated into the cutting part of the material to be cut by using the similar cutting edge of the cutting knife. Under the action of huge ultrasonic energy, this part softens and melts instantly, and its strength drops greatly. At this time, as long as a very small cutting force is applied, the purpose of cutting can be achieved.
Type power
(W)
Frequency Welding time Contains
UCE-QG100W 100W 30khz,35khz,40khz 0.1-3sec generator , transducer ,horn,head
UCE-QG300W 300W 30khz,35khz,40khz 0.1-3sec generator , transducer ,horn,head
UCE-QG500W 500W 30khz,35khz,40khz 0.1-3sec generator , transducer ,horn,head
35khz/40khz Ultrasonic cutter for auto parts interior plastic
35khz/40khz Ultrasonic cutter for auto parts interior plastic

35khz/40khz Ultrasonic cutter for auto parts interior plastic
