Optimization of the production of ethyl esters by ultrasound assisted

Cavitation occurs around the vibrating rod, and the ultrasonic energy is evenly distributed in the groove, thus achieving the cleaning effect of **.

The power output of the ultrasonic rod is not affected by the load changes such as liquid level, tank capacity and temperature difference, and the power output is stable and uniform.

Because of the structural characteristics of the ultrasonic rod, its application scope is wider than that of the traditional ultrasonic vibration plate,* it is suitable for vacuum pressure cleaning, and also suitable for various chemical treatment processes.

Compared with the traditional ultrasonic vibration plate, it has a service life of more than 1.5 times.

The circular tube design makes it easy to install the vibrating rod in any position in the groove.

Ensure sealing and waterproof.

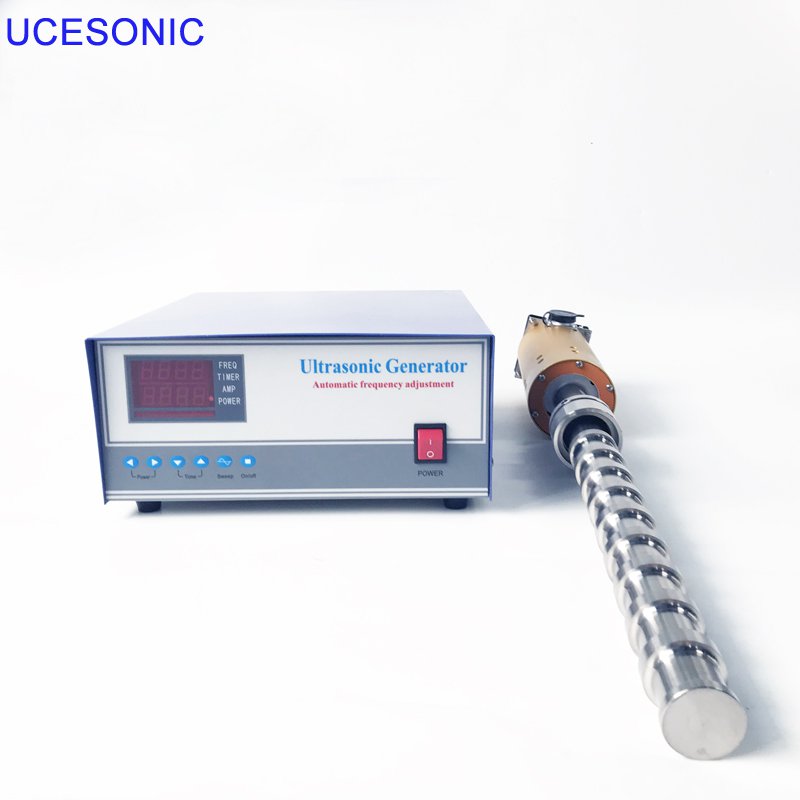

Tubular Equipment Type	Tubular Transducer Type	Frequency (KHz)	Ultrasound Output(W)	Total Length (mm)	Diameter (mm)	Static Capacity (pF±10%)
UCE-UE1	US-61	15-28	1000	500	Φ50-55	68000
UCE-UE5	US-25	15-28	1500	850	Φ50-55	68000
UCE-UE6	US-16	15-28	2000	1100	Φ50-55	132000
