Ultrasound-assisted transesterification reactions for biodiesel production

Ultrasound chemistry is a phenomenon that accelerates and controls chemical reactions by utilizing the cavitation phenomenon of power ultrasound to increase the reaction rate and initiate new chemical reactions. Sonochemistry can be applied to almost all chemical reactions, such as extraction and separation, synthesis and degradation, biodiesel production, sewage treatment, cell comminution, dispersion and condensation, extraction of biological nanoparticles and so on.

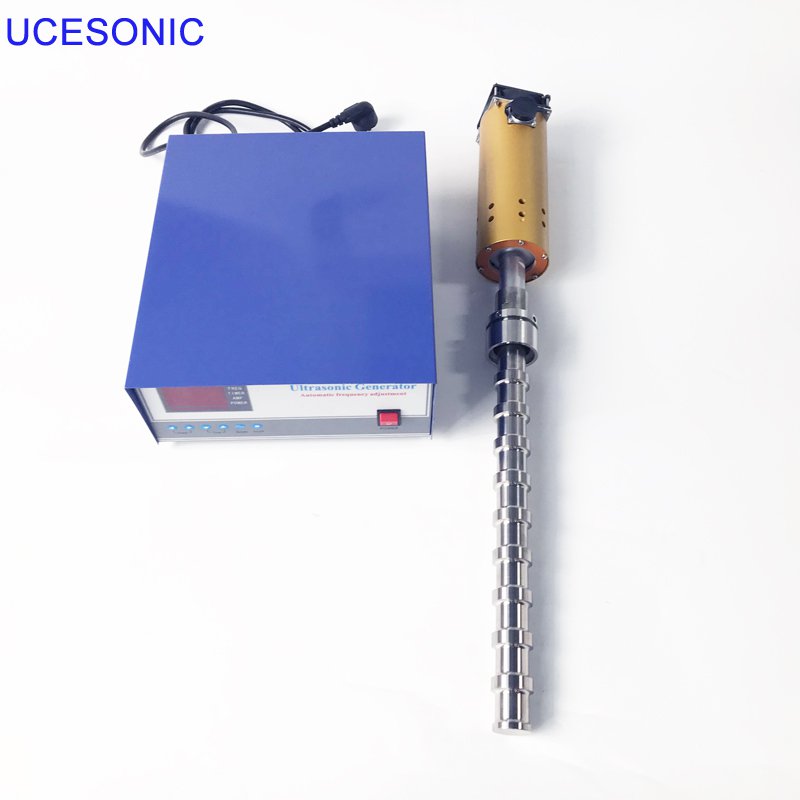

Powerful ultrasonic chemical processing equipment is based on our company's unique full-band high-power piezoelectric ultrasonic transducer and the third generation digital ultrasonic generator to support 24-hour continuous wave generation. Our processing equipment has 2KW/3KW/6KW suitable for high pressure, high temperature, explosion-proof and other working conditions. This set of ultrasonic is not available in any company at home and abroad. Law transcends.

Tubular Equipment Type	Tubular Transducer Type	Frequency (KHz)	Ultrasound Output(W)	Total Length (mm)	Diameter (mm)	Static Capacity (pF±10%)
UCE-UE1	US-61	15-28	1000	500	Φ50-55	68000
UCE-UE5	US-25	15-28	1500	850	Φ50-55	68000
UCE-UE6	US-16	15-28	2000	1100	Φ50-55	132000
