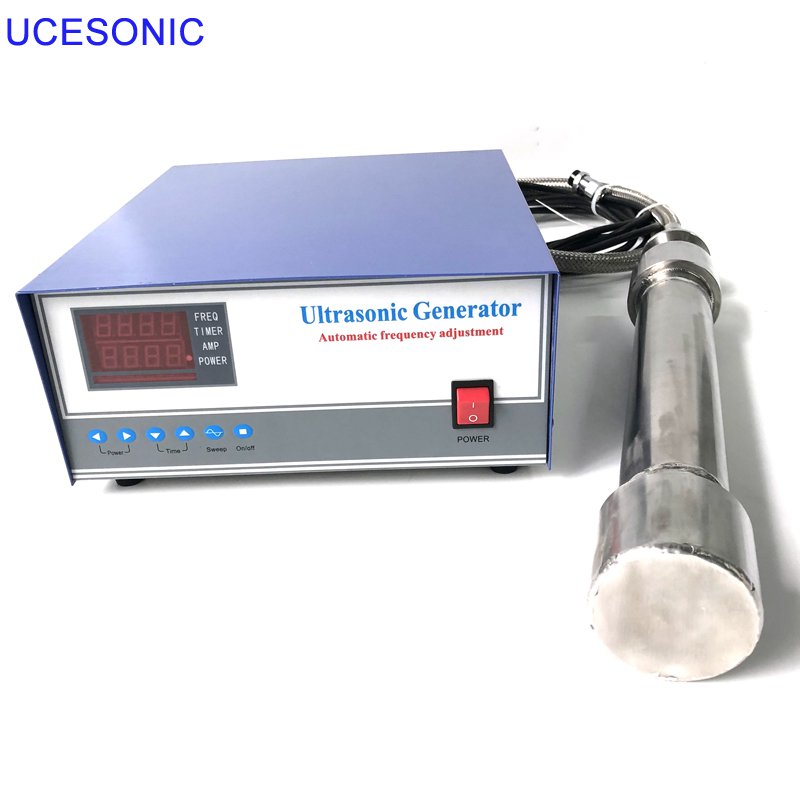

tubular ultrasonic transducer with generator for cleaning

tubular ultrasonic transducer with generator for cleaning
Ultrasound cavitation effect is the most important mechanism of high power ultrasound. Ultrasound cavitation refers to a series of dynamic processes, such as oscillation, expansion, contraction and even collapse, occurring in the presence of small bubbles (cavities) in liquid under the action of acoustic waves. At the cavitation site, the local state of the liquid changes greatly, resulting in extreme high temperature, high pressure and ultra-high speed micro-jet. Ultrasound cavitation effects can derive a variety of effects, such as high temperature and pressure effects, thermal effects, activation effects and so on. Cavitation effect can be similar to catalysts in many chemical reactions, and can create conditions for many difficult chemical reactions. The micro-jet in the cavitation effect can also be well used in various forms of cleaning.

Tubular Equipment Type	Tubular Transducer Type	Frequency (KHz)	Ultrasound Output(W)	Total Length (mm)	Diameter (mm)	Static Capacity (pF±10%)
UCE-US1	US-61	25-27	1000	500	Φ50-55	68000
UCE-US5	US-25	25-27	1500	850	Φ50-55	68000
UCE-US6	US-16	25-27	2000	1100	Φ50-55	132000
