ultrasonic Biodiesel Reactor Tank 1000W 20khz

Cavitation effect of ultrasonic vibration rod:

In some cases, the generation of ultrasonic effect is in the phase of cavitation mechanism. Acoustic cavitation refers to a series of dynamic processes, such as oscillation, expansion, contraction and even collapse, occurring in the presence of small bubbles (holes) in liquid under the action of acoustic wave. At the cavitation site, the local state of the liquid changes greatly, resulting in extreme high temperatures and pressures.

Component:

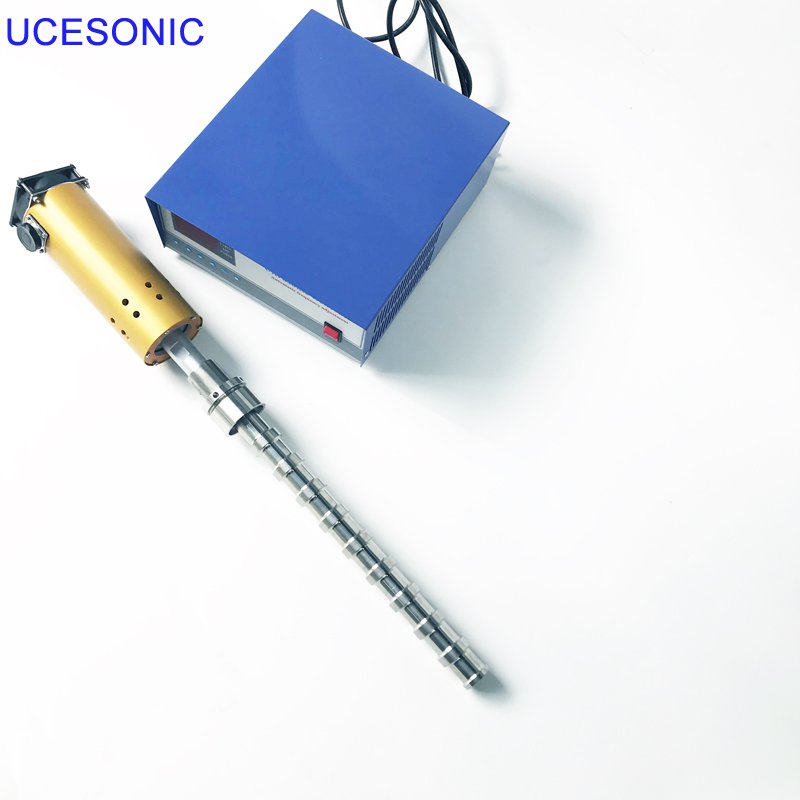

(1) ultrasonic transducer (2) ultrasonic horn (3) ultrasonic tool head (4) ultrasonic driving power supply. Its form of expression is that the transducer moves back and forth longitudinally, and its amplitude is usually several microns. Such an amplitude power density is not enough and can not be used directly. The horn amplifies the amplitude according to the design requirements, isolates the reaction solution and transducer, and also plays the role of fixing the whole ultrasonic vibration system. The tool head is connected with the horn. The horn transmits the ultrasonic energy vibration to the tool head, and then transmits the ultrasonic energy to the chemical reaction liquid by the tool head.

Tubular Equipment Type	Tubular Transducer Type	Frequency (KHz)	Ultrasound Output(W)	Total Length (mm)	Diameter (mm)	Static Capacity (pF±10%)
UCE-UE1	US-61	15-28	1000	500	Φ50-55	68000
UCE-UE5	US-25	15-28	1500	850	Φ50-55	68000
UCE-UE6	US-16	15-28	2000	1100	Φ50-55	132000
